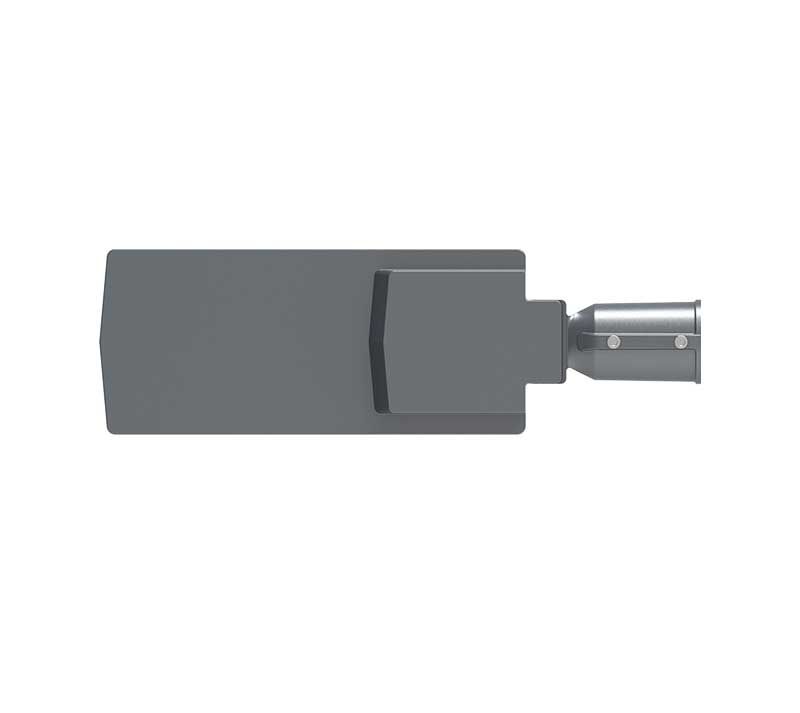

60w led street light with photocell

60w LED street light with photocell means that LED street light is equipped with NEMA base and installed with Photocell or Daylight sensor. When the ambient lux is lower than the set value, the LED street light will light up in the evening. When the ambient lux is over the set value morning, the lamp will automatically turn off.

Key features

60w led street light with photocell

60w led street light, led street light with photocell, 60w street light, 60w led street light price, Philips led street light 60w


Terse Design of appearance

Die casting aluminum housing

Good heat dissipation effect, the optimized heat dissipation structure is designed

IP66 and IK08 waterproof grades meet the high temperature and high humidity environment use

Strobe-free stable optical output, power factor 0.95, Maintain the stability of the power grid

Can be with adjustable arms(vertically or horizontal mounted), the Angle range is ±15°, adjust beam angles according to different occasions

High efficacy of more than 130lm/w

The product is smart and convenient to transport, and the transport cost is very low

High performance but very competitive price



Area Application:

Urban and residential areas, Pedestrian category roads, Vehicle category roads, Traffic routes, and main access road

Parking areas, Cycling track, Footpath


Datasheet

led street light with photocell


Specifications
ModelMK-SH1-60
LED Epistar   (Default) / Lumileds(for optional)
DriverDONE
Wattage60W
Working VoltageAC100-265V|50/60Hz
PFPF>0.9
Luminaire efficacy130   lm /w
Luminaire flux7800lm
CRIRa>70 (Default) / Ra>80
CCT3000K, 4000K, 5000K, 6000K
Optic lensType  II Medium; Type III Medium
Mounting TypeSide entry or Vertical pole-mounted ±15°
Storage Temperatures-40°C~50°C
Working Environment-20℃~+50℃,10%~90%RH
THD<15%
Lifetime>50,000hrs
MaterialsHigh-pressure die-cast aluminum, UV-resistant Polycarbonate
Holder50mm/60mm(Default)
RatingIP66   IK08
Protection Class I (Default)/Class II
Surge Protection Device10KV   (20KV optional)
CertificationsCE,   RoHS, LM79, LM80, TM-21, IP66, IK10
Dimming Options1-10V   Dimming /Timer Dimming
Available on requestSolar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming
Body-colorDark Grey/Black/Light Grey (available on request)
Warranty5   years



Download

FAQ

What is photocell in street lights?

Photocells are light detectors comprised of semiconductors. In essence, they are light-dependent resistors since their output is related to the quantity of light that strikes them. They are also known as photoresistors or light-dependent resistors because of this property.


What is the difference between PIR and photocell?

Simply put, exterior lights with PIR, which stands for passive infrared, detect your presence as you pass by, while photocell lights give illumination from dawn to night. PIR and photocell lights are both sensor-operated. This sensor is activated in the case of PIR lights when it senses motion in front of it.


Will the light from an LED look different?

Yes, unlike HPS (high-pressure sodium) lights, which emit a yellowish-white light, LEDs provide a brilliant, natural white light comparable to that of an MH (metal halide) bulb. The light emitted by an LED is comparable to sunshine and offers the most accurate color rendering of any outdoor lighting. Residential areas will have LEDs with a color temperature of no more than 3000 Kelvin that provide a softer white light (K).
