suspended 27w led street light fittings
suspended 27w led street light fittings
led street light fittings, led type street light fittings, street light fittings, Philips street light fittings, led street light

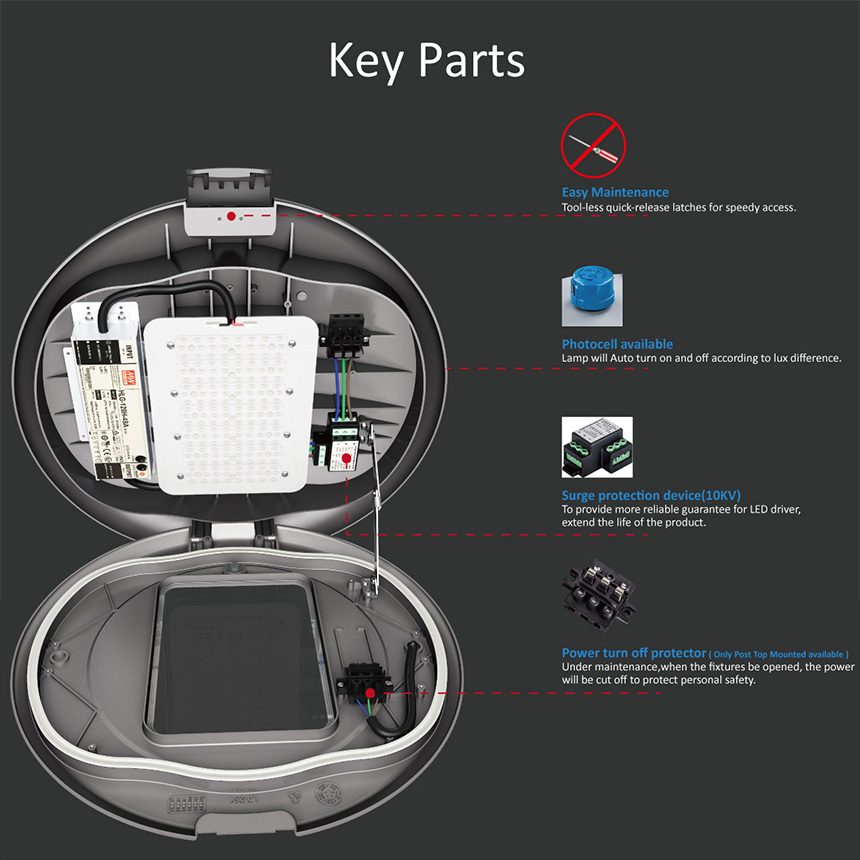

Die-cast aluminum housing with flat tempered glass.
Toolless open for easy installation, replacement, and maintenance.
Power-off protection makes the power automatically off when the fixture is opened.
A smooth body would greatly diminish dust accumulation and bird droppings heap up.
Possible energy savings of more than 70%. 100,000 hours lifetime saving maintenance cost.
The LED engine, consisting of the LED light source and the power supply, can be easily replaced or upgraded. Designed for easy technology upgrade (Future Proof)
Electronic temperature monitoring prevents overheating of LEDs and power supply.
Provided with 10KV Surge Protection Devices.
Corrosion resistant polyester powder painted 100µm thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Optimized roadway photometric distributions, ULOR = 0 (zero uplight)
Post-Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.
Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.
e.g. photocell, motion sensor, DALI, 1-10V.
CE/ RoHS/ IK08/ IP66 / LM80/ LM79.
7 years limited warranty available.
Application:
Urban Roads, Urban Street, Parks and gardens, Residential areas
suspended 27w led street light fittings
led street light fittings, led type street light fittings, street light fittings, Philips street light fittings, led street light
| Specifications | |
| Model | MK-SCX-27( X= 1,2,3,4) |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell HLG series/ Inventronics |
| Norminal Wattage | 27W |
| LED Chip Quantity | 3030: 72pcs 5050: 36pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-150 lm /w |
| Lamp Rated Lumen output | 3510-4050 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium; TypeV, Short |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| Pole Fitter Diameter | 60mm |
| Rating | IP66 IK08 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Deep grey |
| Warranty | 7 years |
suspended 27w led street light fittings
led street light fittings, led type street light fittings, street light fittings, Philips street light fittings, led street light
suspended 27w led street light fittings
led street light fittings, led type street light fittings, street light fittings, Philips street light fittings, led street light
| Packing Details | |
| Fixture Dimension | 1 type: 480X480 X521mm ; 2/3/4 type: 480X480 X240mm |
| Fixture Weight | 7.5 kg |
| Packing Dimension | 495 X 495 X170 mm |
| Packing Weight | 8.8 kg |
