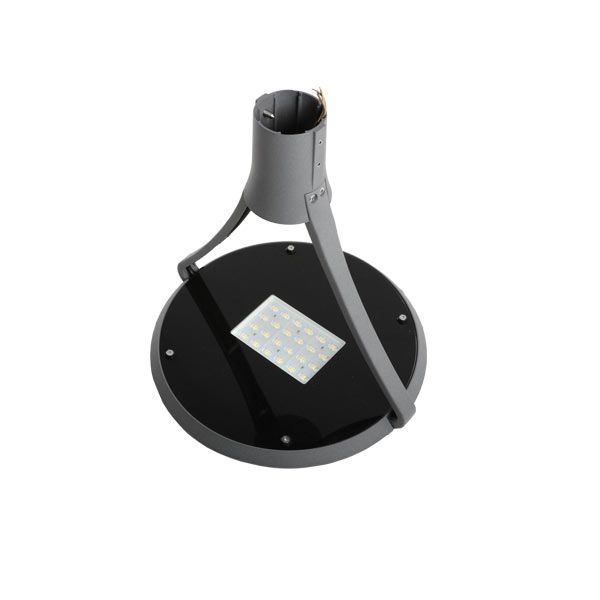

70w LED parking lot light adopts pendant installation, tool-free buckle design, easy to replace PCB and LED driver, standard 10KV SPD, equipped with Philips LEDs and Philips Driver, to achieve high performance and long life of the lamp, L90B10 >100,000hrs, support side entry, hanging and post top mounted, suit for street, gardens and parking lots.
70w led parking lot lights with 10KV Surge protect device
Led parking lot lights, parking lot light, parking lot led light, led parking lot light fixtures, parking lot light fixtures, led light for parking lot
Die-cast aluminum housing with flat tempered glass.
Toolless open for easy installation, replacement, and maintenance.
Power-off protection makes the power automatically off when the fixture is opened.
A smooth body would greatly diminish dust accumulation and bird droppings heap up.
Possible energy savings of more than 70%. 100,000 hours lifetime saving maintenance cost.
The LED engine, consisting of the LED light source and the power supply, can be easily replaced or upgraded. Designed for easy technology upgrade (Future Proof)
Electronic temperature monitoring prevents overheating of LEDs and power supply.
Provided with 10KV Surge Protection Devices.
Corrosion-resistant polyester powder painted 100µm thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Optimized roadway photometric distributions, ULOR = 0 (zero uplight)
Post-Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.
Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.
e.g. photocell, motion sensor, DALI, 1-10V.
CE/ RoHS/ IK08/ IP66 / LM80/ LM79.
7 years limited warranty available.
Application:
Urban Roads, Urban Street, Parks and gardens, Residential areas
led parking lot lights, parking lot light, parking lot led light, led parking lot light fixtures, parking lot light fixtures, led light for parking lot
| Specifications | |
| Model | MK-SCX-70( X= 1,2,3,4) |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell HLG series/ Inventronics |
| Norminal Wattage | 70W |
| LED Chip Quantity | 3030: 144pcs 5050: 72pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-150 lm /w |
| Lamp Rated Lumen output | 9100-10500 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000 or 4000 or 5000 or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium; TypeV, Short |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| Pole Fitter Diameter | 60mm |
| Rating | IP66 IK08 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Deep grey |
| Warranty | 7 years |
led parking lot lights, parking lot light, parking lot led light, led parking lot light fixtures, parking lot light fixtures, led light for parking lot
led parking lot lights, parking lot light, parking lot led light, led parking lot light fixtures, parking lot light fixtures, led light for parking lot
Lights in parking lots are often called "parking lot light poles" or "LED light poles". They are also sometimes incorrectly called street lights, but this is incorrect. Street lights cast a narrow beam to illuminate a narrow rectangular area, such as a street pavement, while parking lot lights cast a wider beam to illuminate a larger area.
For parking lots, LED area lights are the preferred choice. While this has not always been the case, LEDs have dominated this use case due to their durability, energy efficiency, and effectiveness in achieving the required brightness levels. The most significant advantage of LEDs is their lumen maintenance rate, which means that even after many years, they will retain more than 90% of their original brightness.
The number of light poles required depends on the square footage you are trying to illuminate and the level of brightness needed for the entire lot. If the parking lot needs to be brightly lit, it will require more lights than the parking lot, which only needs a basic lighting level for basic security. If you are starting from scratch and want to light the entire lot (which is the most common scenario we see among our customers), you will need to purchase poles and lights. Another point to consider is how many lights you will be using on the poles.
