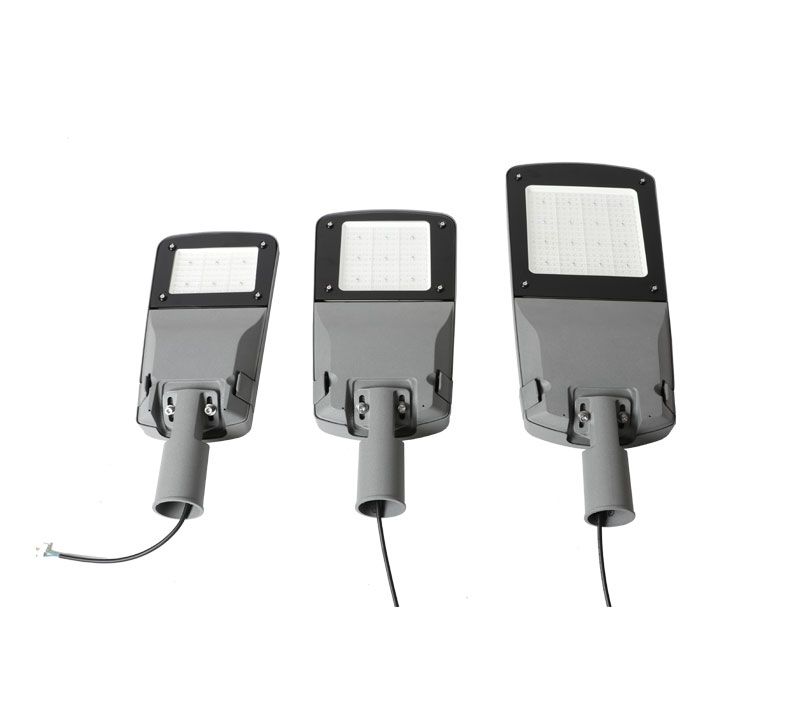

Smart Street Lighting with Zigbee Node

When SB series LED street light with 5 or 7 pin NEMA or ZHAGA interface is installed with ZIGBEE or LORA intelligent NODE, it can be connected to the ZIGBEE or LORA road lighting control system to realize remote control.

Key features

Smart street lightintelligent led street light

Big power range from 30-240w.

Die-cast aluminum housing with flat tempered glass.

Toolless open for easy installation, replacement, and maintenance.

Power-off protection makes the power automatically off when the fixture is opened.

A smooth body would greatly diminish dust accumulation and bird droppings heap up.

Level bubble makes it easy for the installer to adjust the position of the lamp

Possible energy savings of more than 70%. 100,000 hours lifetime saving maintenance cost.

The LED engine, consisting of the LED light source and the power supply, can be easily replaced or upgraded. Designed for easy technology upgrade (Future Proof)

Electronic temperature monitoring prevents overheating of LEDs and power supply.

Provided with 10KV Surge Protection Devices.

Corrosion-resistant polyester powder painted 100µm thickness.

Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.

Optimized roadway photometric distributions, ULOR = 0 (zero uplight)

0, +/-5, +/-10, +/-15 degree of tilting angle adjustment.

Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.

e.g. photocell, motion sensor, DALI, 1-10V.

CE/ RoHS/ IK08/ IP66 / LM80/ LM79.

7 years limited warranty available.



Application:

Roads, Street, Highways, Parks, gardens, Residential areas

Datasheet

 Smart led street light

Specifications
ModelMK-SB4-240
LED BrandLUMILEDS®   LUXEON 3030 or 5050
Driver BrandMeanwell   / Inventronics
Norminal Wattage240W
Input Voltage100-240/277VAC/347V/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150   lm /w
Lamp Rated Lumen output31200-36000   lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80   optional)
Color Temperature3000  or 4000 or 5000 or 5700K
Photometric TypeType   II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion<   10%
Lumen Maintenance>   100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce   12
Body and Shell MaterialsDie-cast   aluminum; Tempered Glass
Pole Fitter Diameter60mm   ( 50mm optional)
RatingIP66   IK08
Protection Class   I ( Class II optional)
SPD10KV   (20KV optional)
CertificationCE,   ENEC,CB ROHS,LM80,LM79,IP66 IK08, ISTMT
Dimming Options1-10V   or DALI or PWM or Timer
Control OptionsPhotocell   or Motion sensor or NEMA or ZHAGA for Smart control
Color OptionsDeep   grey or Light grey
Warranty5   years



Download

FAQ

  1.  What is the smart street light system?

    A smart streetlight is a type of public illumination that uses technology such as cameras, light-sensing photocells, and other sensors to provide real-time monitoring capabilities.


  2. What can smart street lights do?

    When combined with sensors, the system can adjust the output of individual lamps remotely, detect flaws, analyze energy performance, and even provide real-time notifications for city-wide issues such as traffic flow, parking spots, power outages, and potential accidents.


  3. What are the advantages of the smart street light system?

    Smart street lights help to make cities more livable by enhancing safety and reducing traffic congestion. Costs of energy are reduced. When compared to simple LED luminaires, smart street lights manage electricity more efficiently, resulting in larger cost savings. Revenue prospects have increased.
