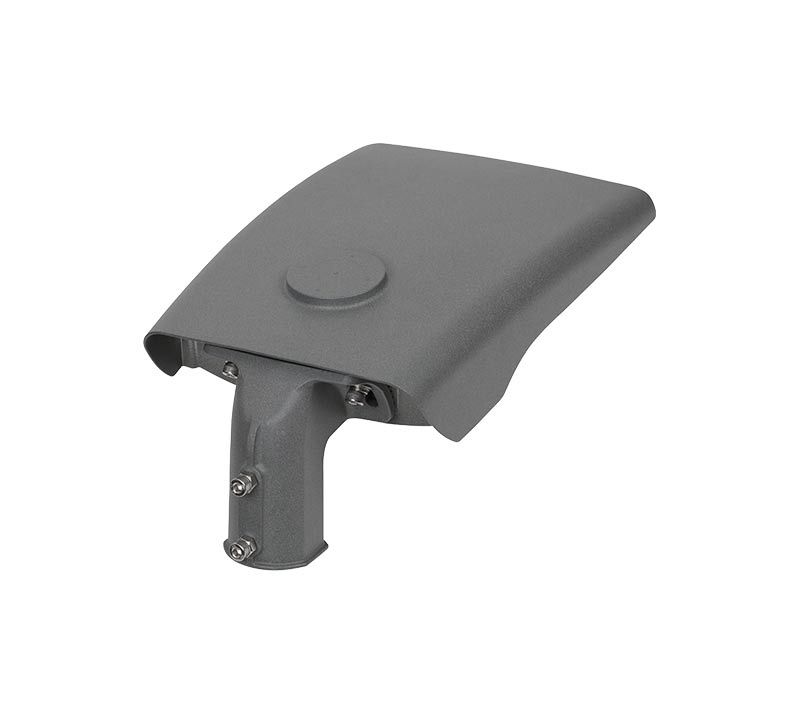

40 watt Led Street Light | MK-SB1-40

SB series 40 watts Led Street Light with high-efficiency Philips LEDs, can replace 100w or 150w traditional MH or HPS lamp, as the factory of led street light, MKLIGHTS offers professional lighting design or completed intelligent control system and led street light with NEMA or ZHAGA socket.

Key features

40 watt Led Street Light | China Factory & Manufacturer

street light led 40w, 40w led street light price, syska led street light 40w, 40w street light price, 40w led street light


Big power range from 30-200w.

Die-cast aluminum housing with flat tempered glass.

Toolless open for easy installation, replacement, and maintenance.

Power-off protection makes the power automatically off when the fixture is opened.

A smooth body would greatly diminish dust accumulation and bird droppings heap up.

The level bubble makes it easy for the installer to adjust the position of the lamp

Possible energy savings of more than 70%. 100,000 hours lifetime saving maintenance cost.

The LED engine, consisting of the LED light source and the power supply, can be easily replaced or upgraded. Designed for easy technology upgrade (Future Proof)

Electronic temperature monitoring prevents overheating of LEDs and power supply.

Provided with 10KV Surge Protection Devices.

Corrosion-resistant polyester powder painted 100µm in thickness.

Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.

Optimized roadway photometric distributions, ULOR = 0 (zero uplight)

0, +/-5, +/-10, +/-15 degree of tilting angle adjustment.

Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.

e.g. photocell, motion sensor, DALI, 1-10V.

CE/ RoHS/ IK08/ IP66 / LM80/ LM79.

7 years limited warranty available.



Application:

Roads, Street, Highways, Parks, gardens, Residential areas

Datasheet

40 watt Led Street Light | China Factory & Manufacturer

street light led 40w, 40w led street light price, syska led street light 40w, 40w street light price, 40w led street light

Specifications
ModelMK-SB1-40
LED BrandLUMILEDS®   LUXEON 3030 or 5050
Driver BrandMeanwell / Inventronics
Norminal Wattage40W
Input Voltage100-240/277VAC/347V/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150   lm /w
Lamp Rated Lumen output5200-6000   lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80   optional)
Color Temperature3000K   or 4000K or 5000K or 5700K
Photometric TypeType   II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce   12
Body and Shell MaterialsDie-cast  aluminum; Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66  IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,   ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or NEMA or ZHAGA for Smart Control
Color OptionsDeep grey or Light grey
Warranty5   years






Description

40 watt Led Street Light | China Factory & Manufacturer

street light led 40w, 40w led street light price, syska led street light 40w, 40w street light price, 40w led street light

Smooth design street light led 30w with tempered glass

Video

40 watt Led Street Light | China Factory & Manufacturer

street light led 30w, 30w led street light price, syska led street light 30w, 30w street light price, 30w led street light


Download

FAQ

How many watts do LED street lights use?

A high-pressure sodium street light may use up to 1000 watts of energy, while a 1900s incandescent light required 320 watts. According to the U.S. Department of Energy, many LED street lights need just 73 watts and offer a superior quality of light.


Can LED lights be used as street lights?

LED street lighting provides several benefits. They are sustainable and cost-effective since they last longer and use less energy than incandescent, halogen, and fluorescent alternatives. Below are many advantages of LED street lighting.


What is the voltage for the LED on a street light?

Each individual LED module is powered by a constant current driver. In this sort of system, the primary power source generates an isolated, constant voltage, often 24 or 48 V, which is low enough to meet UL safety requirements.
