High Efficacy 100w Highway Street Lights

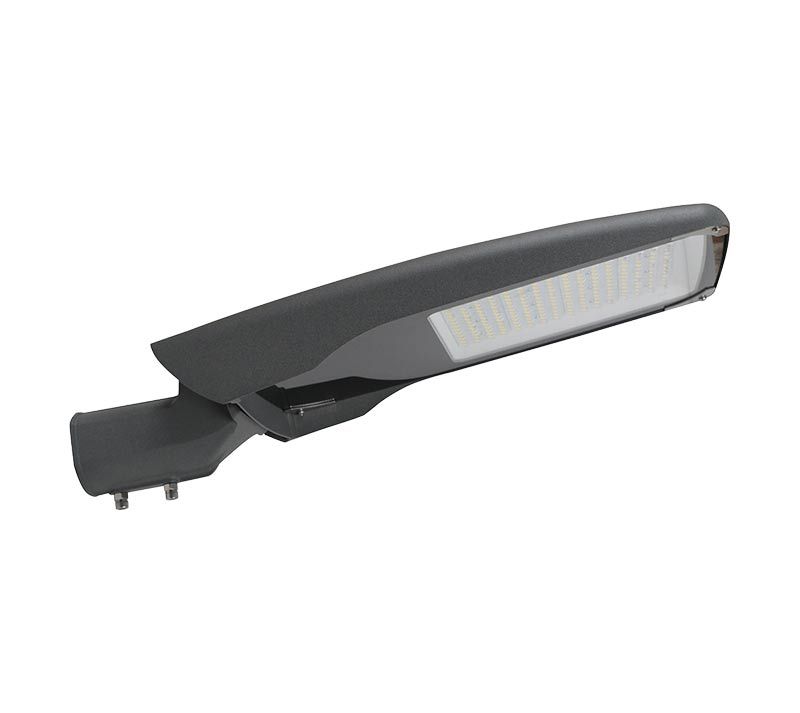

High Efficacy 100w highway street lights adopt ADC12 full die-casting aluminum housing and high light transmission tempered glass, more than 10 kinds of road optical lenses can be selected, support vertical or horizontal installation, light efficiency up to 150lm/W, can replace 250w traditional HPS lamp

Key features

High Efficacy 100w Highway Street Lights

highway street lights,100w highway street lights, street light highway, led highway lighting, highway street lights


IP66 waterproof/dustproof/explosion-proof/IK09

Aluminum shape good at heat dissipation

The lamp post can be adjusted to plus or minus 15 degrees

It can also be installed vertically

Philips SMD 3030/ 5050/ Ra>70/SDCM<6

100,000 times switching cycle before failure

Total harmonic distortion (THD)<10%

Excellent post light control design, the whole lamp can achieve T II-M, T III-M, That's our advantage

Pass 3G vibration test


Application

It is mainly applied to the road lighting of the urban expressway, secondary, trunk roads, branch roads,

factories, schools, gardens, various residential communities, and courtyards.

Datasheet

High Efficacy 100w Highway Street Lights

highway street lights,100w highway street lights, street light highway, led highway lighting, highway street lights


Specifications
ModelMK-SG2-100
LED LUMILEDS®   LUXEON 3030 or 5050
DriverMeanwell / Inventronics
Wattage100W
Voltage100-240/277VAC/347V/480VAC
PF>0.95
Luminaire efficacy130-150 lm /w
Luminaire flux13000-15000   lm (Lumen tolerance +/- 5%)
CRI70(80   optional)
CCT3000K   or 4000K or 5000K or 5700K
Optic lensType   II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
THD< 10%
Lifetime> 100,000 hours -L70, @25 ºC (77 ºF)
Wind resistanceForce   12
MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66   IK08
Protection Class   I ( Class II optional)
Surge Protection Device10KV   (20KV optional)
CertificationsCE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V   or DALI or PWM or Timer
ControlsPhotocell or Motion sensor or NEMA or ZHAGA for Smart control
Body colorDeep   grey or Light grey
Warranty5   years


Description

High Efficacy 100w Highway Street Lights

highway street lights,100w highway street lights, street light highway, led highway lighting, highway street lights

High Efficacy 100w highway street lights

Video

High Efficacy 100w Highway Street Lights

highway street lights,100w highway street lights, street light highway, led highway lighting, highway street lights


Download

FAQ

Is it true that LED lights produce blue light that can disrupt sleep by suppressing the body's production of melatonin?

There are LEDs that emit both cold white and warm white light. Increasing the amount of red light generates a warmer white light while increasing the amount of blue light produces a cooler white light.

When a white light solution replaces conventional discharge street lighting, often additional blue is added. But it is a negligible amount compared to natural sunshine and has no negative effects on humans.

The hormone that regulates our sleep, melatonin, must be exposed to light levels above 30 lux consistently for at least one hour for any discernible change to occur. Even yet, this adjustment is not enough to disturb sleep habits.

Typical street lighting levels are 10 lux, which is less than typical house illumination levels. Melatonin levels are more likely to be affected by the use of mobile devices, tablets, and laptops.

In addition, the luminaires belong to risk category 1, which needs no special measures.


What are the benefits of LED solutions?

They have excellent color rendering, which makes colors seem more realistic. They emit white light of uniformly excellent quality. LED lighting improves face recognition for security and CCTV cameras, making environments safer as a result.

When light is not required, LEDs may be muted, resulting in extra energy savings. LEDs may also be networked and linked to sensors and controllers so that they can be remotely controlled.


How long do LEDs typically last?

The chosen LED has a lifespan of around 100,000 hours, which is substantially (almost six times) longer than most incandescent, fluorescent, or High-Intensity Discharge (conventional street lighting) lamp sources.

As with all light sources, LED sources gradually diminish over time. This decrease in light output over time is known as lumen depreciation or light output deterioration.

When their light output falls below 70 percent of their original output, white light sources used for general illumination are said to have reached the end of their useful life. Specifically, after 100,000 hours. After this interval, the light output would not adequately illuminate the area to be illuminated.
