Catenary street lighting is a common installation method in Europe. LED street lights are hung in the middle of the street or on both sides of the road through wire ropes. The European-style appearance design is chosen by many European customers for various urban road lighting projects, and also supports top post mounted and side entry mounted.
Catenary Street Lighting | Hanging Light | China Supplier
suspended street lights, hanging led street light, hanging street light, Hanging rope street light, suspended led street lights
Die-cast aluminum housing with flat tempered glass.
Toolless open for easy installation, replacement, and maintenance.
Power-off protection makes the power automatically off when the fixture is opened.
A smooth body would greatly diminish dust accumulation and bird droppings heap up.
Possible energy savings of more than 70%. 100,000 hours lifetime saving maintenance cost.
The LED engine, consisting of the LED light source and the power supply, can be easily replaced or upgraded. Designed for easy technology upgrade (Future Proof)
Electronic temperature monitoring prevents overheating of LEDs and power supply.
Provided with 10KV Surge Protection Devices.
Corrosion-resistant polyester powder painted 100µm in thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Optimized roadway photometric distributions, ULOR = 0 (zero uplight)

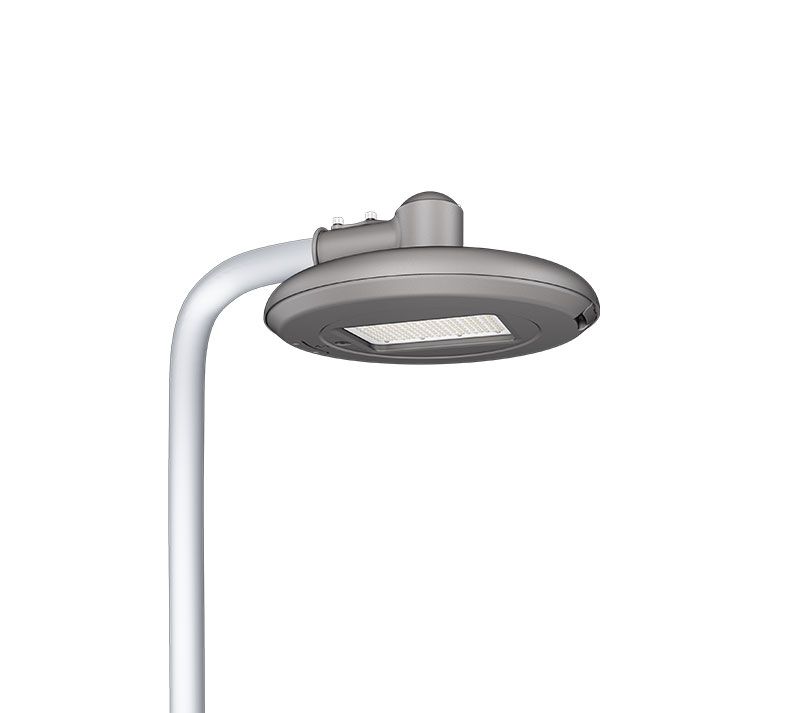

Post-Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.
Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.
e.g. photocell, motion sensor, DALI, 1-10V.
CE/ RoHS/ IK08/ IP66 / LM80/ LM79.
7 years limited warranty available.
Application:
Urban Roads, Urban Street, Parks and gardens, Residential areas
Catenary Street Lighting | Hanging Light | China Supplier
| Specifications | |
| Model | MK-SCX-27( X= 1,2,3,4) |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell HLG series/ Inventronics |
| Normal Wattage | 27W |
| LED Chip Quantity | 3030: 72pcs 5050: 36pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-150 lm /w |
| Lamp Rated Lumen output | 3510-4050 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium; TypeV, Short |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| Pole Fitter Diameter | 60mm |
| Rating | IP66 IK08 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Deep grey |
| Warranty | 7 years |
Catenary Street Lighting | Hanging Light | China Supplier
Hanging rope street light, suspended led street lights
Catenary lighting, which has been a popular option in Europe for many years, is gaining traction in the United Kingdom.
There are several advantages to suspending outdoor luminaires, whether you're looking for space savings or an aesthetic impact. Take a look at our list below:
Reduce (or eliminate!) the amount of litter on the roadway.
The use of overhead lighting improves the footprint's usability; without columns and structural supports, more floor space is available for pedestrians.
Optimization of space
Designers now have a blank canvas to generate additional aesthetic appeal and maximize a space's potential by lighting previously under-utilized regions, thanks to the removal of column mounting constraints. It's also possible to integrate artwork and seasonal decorations.
Wherever it's required, precise, directed illumination
Luminaires may be positioned above the region where light is required utilizing catenary lighting. As a consequence, the illumination intensity may be lowered while maintaining outstanding uniformity.
For added interest, use light.
Light, in general, is uninteresting (I know, it's controversial!). Catenary lighting, on the other hand, is fascinating (perhaps due to its being underutilized). It adds visual appeal and allows for the addition of decorations or art, which may help revitalize a public place and encourage people to return.
Enhanced safety
Improved lighting uniformity encourages nighttime usage and the feeling of a safer environment.
More cost-effective
When compared to standard installation techniques, catenary lighting may avoid overlighting a place, reducing upward light pollution and energy usage. There are no capital expenditures for columns or installation charges for new systems.
You're probably thinking that catenary lighting isn't appropriate for all projects, and you're correct. However, there are a variety of situations when it should be addressed, such as small streets or pedestrianized zones where reclaiming public space is a priority.
Our design team has put up a helpful infographic to walk you through the processes of planning a successful catenary lighting project:
1. Defining the purpose
2. Defining the lighting requirements
3. Establishing cable net arrangements
4. Assessing the site conditions
5. Engineering conditions
6. Maintenance planning
