The 120W LED street light adopts a module design, which is convenient for maintenance and upgrades. The module waterproof grade is IP67, the whole fixture reaches IK10, IP66, and the street light standard 10KV surge protector, as LED street light factory, MKLIGHTS offers professional road lighting Dialux simulation design.
IP66 and IK10 120w led street light with 10KV SPD
Street lamp with 10KV SPD, IP66 and IK10 120w street lamp, IK10 120w street lamp,120w street lamp, IP66 120w street lamp
Big power range from 30-300w.
High output lumen efficiency, up to 170lm/W.
Die-cast aluminum housing.

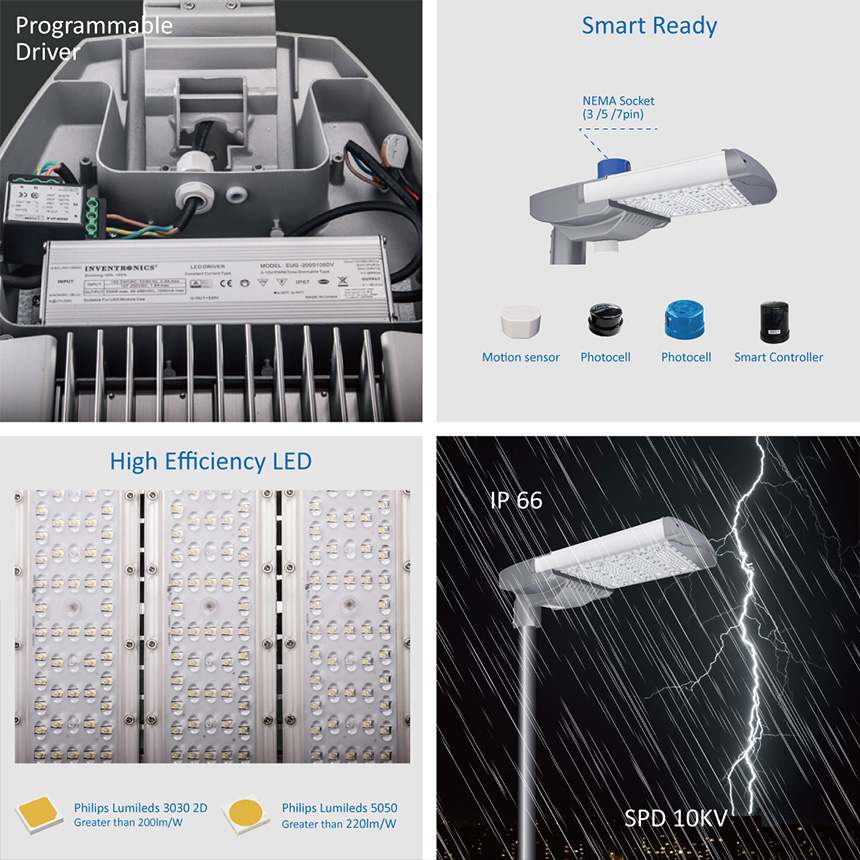

Modular design allows for easy installation, replacement, and maintenance. This design also creates a chimney effect which provides exceptional thermal management.
Provided with 10KV Surge Protection Devices.
Corrosion-resistant polyester powder painted 100µm in thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Over 10 optical lenses are available for virtually any application.
0, +/-5, +/-10, +/-15 degree of tilting angle adjustment.
Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.
e.g. photocell, motion sensor, DALI, 1-10V.
CE/ RoHS/ IK10/ IP66 / LM80/ LM79.
100,000 hours lifetime saving maintenance cost
7 years limited warranty available.
Application:
Roads, Street, Highways, Parks and gardens, Residential areas
street lamp with 10KV SPD, IP66 and IK10 120w street lamp, IK10 120w street lamp,120w street lamp, IP66 120w street lamp
| Specifications | |
| Model | MK-STA2-120 |
| LED Brand | Lumileds 3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 120W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277VAC/DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 15600-19200 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000 or 4000 or 5000 or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,LM80,LM79,FCC,IP66,IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Street lamp with 10KV SPD, IP66 and IK10 120w street lamp, IK10 120w street lamp,120w street lamp, IP66 120w street lamp
Street lamp with 10KV SPD, IP66 and IK10 120w street lamp, IK10 120w street lamp,120w street lamp, IP66 120w street lamp
As the majority of the light is directed downward to the street and sidewalk, the new lights will prevent unwanted light spill into houses and properties. However, if a homeowner claims that the new LEDs are allowing too much light into their home, the Town may install a house shield to restrict unwanted light.
Illumination color temperature is measured in Kelvin (K) units. When LED streetlights were originally introduced, the majority of applications used 5,000 Kelvin, a very chilly or white color temperature. These were quite sharp and almost blue. Then, applications switched to 4,000K, sometimes known as "moonlight." Several respectable sources have opined the deleterious effects of 4,000K illumination on human sleep patterns, nocturnal animal behavior, and light pollution. The Town has opted for 3,000 kelvin LED lighting because of the color's mellow but effective appearance.
Light Emitting Diodes (LED) is a technology that has been used in small electronic devices, such as calculators and digital clocks for decades. More recently, LED technology has advanced to streetlight applications. LED streetlights are extremely energy-efficient, have long life spans, and produce better quality light than HPS streetlights.
