china 80w led street light factories

china 80w led street light factories

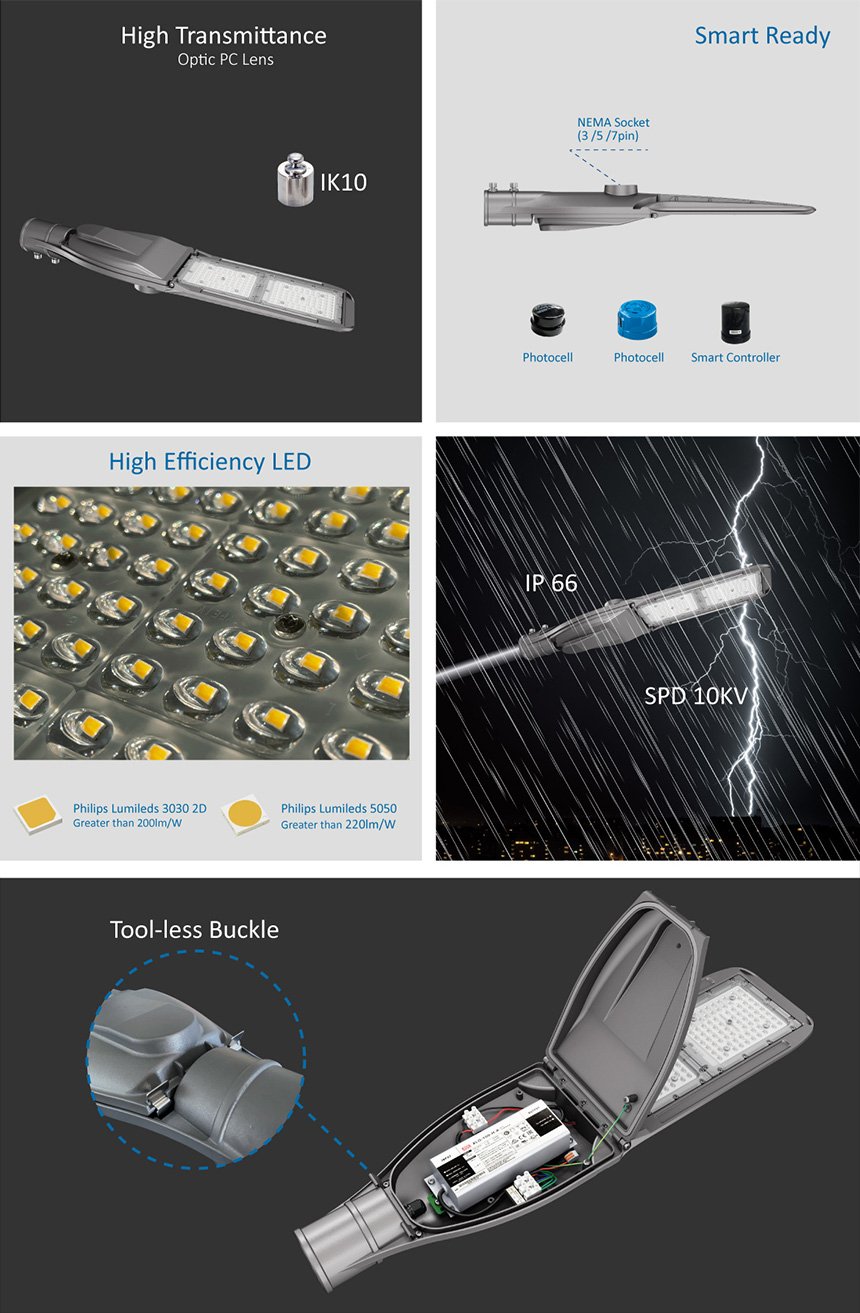

Key features

china 80w led street light factories

china 80w led street light,80w led street light, 80w led street light factories, led street light 80w, 80w solar led street light


Wide power range: 60W~130W.

Special circuit design, single LED's damage won't affect others' normal work.

Smart design, low transportation costs.

Tool-less open for easy installation, replacement and maintenance.

The LED engine, consisting of the LED light source and the power supply, can be easily replaced or upgraded. Designed for easy technology upgrade (Future Proof)

Electronic temperature monitoring prevents overheating of LEDs and power supply.

Provided with 10KV Surge Protection Devices.

Corrosion resistant polyester powder painted 100µm thickness.

Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.

Optimized roadway photometric distributions, ULOR = 0 (zero uplight)

Supports Smart City application,7-Pin NEMA socket and standard outdoor dimming protocols.

e.g. photocell, motion sensor, DALI, 1-10V.

High Lumen output up to 160lm/w with high quality LED chips.

Designed to last at least 100, 000 hours at L70.

ENEC/ CB/ CE/ RoHS/ IK10 /IP66 /LM79

5 years limited warranty available.



Applications

Street, highway, park lot, roadway, path and etc

Datasheet


china 80w led street light factories

china 80w led street light,80w led street light, 80w led street light factories, led street light 80w, 80w solar led street light


Specifications
ModelMK-SD2-80+
LED BrandLUMILEDS® LUXEON 3030
Driver BrandMeanwell   / Inventronics
Norminal Wattage80W
LED Chip Quantity3030: 160pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency153 lm /w
Lamp Rated Lumen output12240 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K  or 4000K or 5000K or 5700K
Photometric TypeTypeII Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion<10%
Lumen Maintenance>100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce  12
Body and Shell MaterialsDie-cast aluminum; PC Lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66  IK10
Protection Class  I
SPD10KV (20KV optional)
CertificationCE,  ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT
Dimming Options1-10V
Control OptionsPhotocell or Smart control
Color OptionsDeep grey
Warranty5  years


Description

china 80w led street light factories

china 80w led street light,80w led street light, 80w led street light factories, led street light 80w, 80w solar led street light

china 80w led street light factories

Video

china 80w led street light factories

china 80w led street light,80w led street light, 80w led street light factories, led street light 80w, 80w solar led street light


Download

FAQ

Packing   Details
Fixture Dimension717X178X99mm
Fixture Weight3.62   kg
Packing Dimension735X195X120mm
Packing Weight4.20   kg
