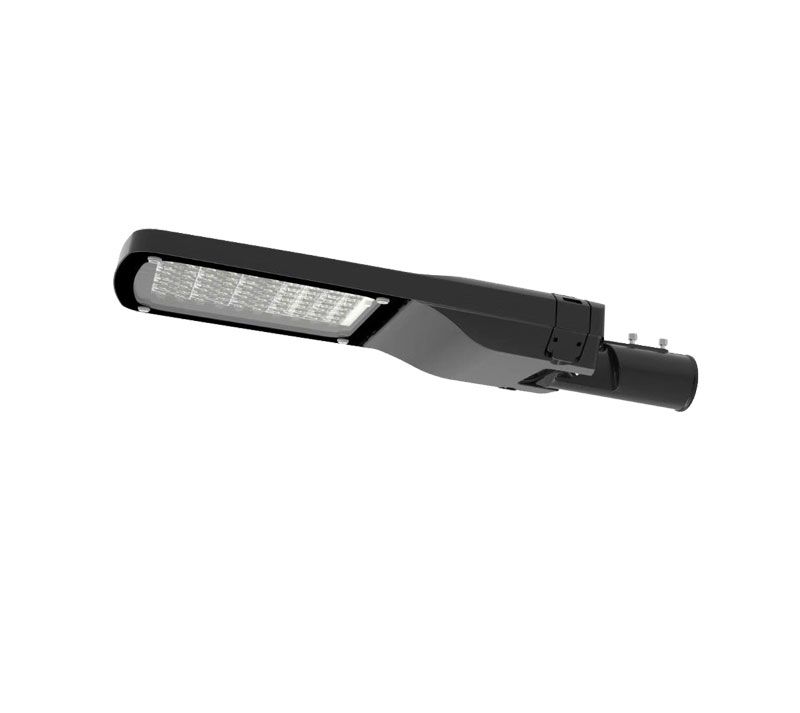

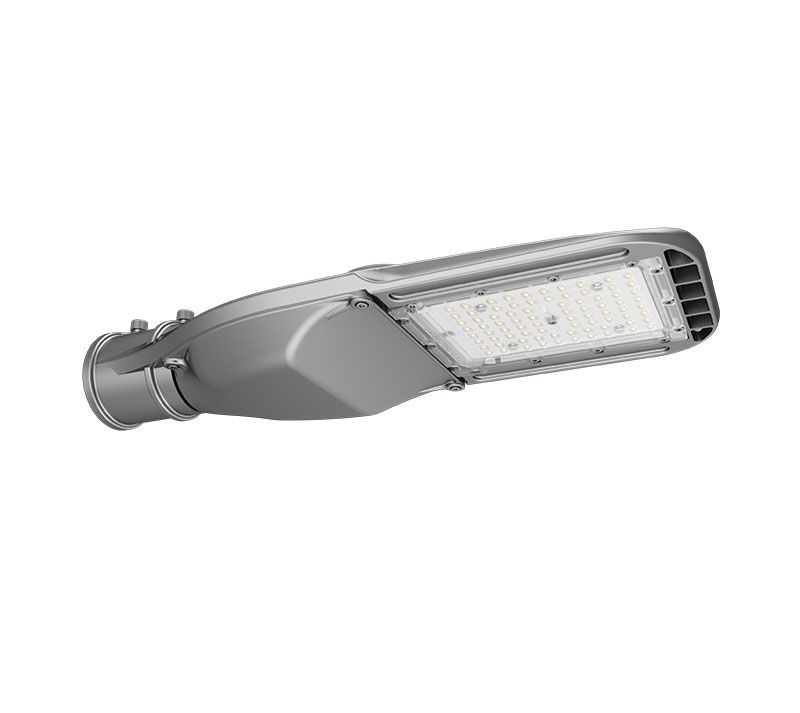

50W led street light, smooth body, not easy to accumulate dust, high efficiency Philips LED chip and high-end programmable Inventronics LED driver, support 1-10V dimming, timer dimming, DALI dimming, CLASS I or Class II, NEMA or ZHAGA based can be installed for the intelligent control system.
Wide power range: 20W~60W.
Special circuit design, single LED damage won't affect others' normal work.
Smart design, low transportation costs.
A smooth body would greatly diminish dust accumulation and bird droppings heap up.
High Lumen output up to 160lm/w with high-quality LED chips.
Multiple lighting control options are available, e.g. 1-10V, photocell.
Designed to last at least 100, 000 hours at L70.
ENEC/ CB/ CE/ RoHS/ IK10 /IP66 /LM79
5 years limited warranty available.
|LED Brand||LUMILEDS® LUXEON 3030|
|LED Chip Quantity||3030: 80pcs|
|Lamp Rated Luminous Efficiency||142 lm /w|
|Lamp Rated Lumen output||7100 lm (Lumen tolerance +/- 5%)|
|Color Rendering Index||70(80 optional)|
|Color Temperature||3000 or 4000 or 5000 or 5700K|
|Photometric Type||Type II Medium|
|Optimal Operating Temperature||25℃|
|Working Environment||Between-40°C~+50°C, 10%~90%RH|
|Total Harmonic Distortion||< 10%|
|Lumen Maintenance||> 100,000 hours -L70, @25 ºC (77 ºF)|
|Wind Index||Force 12|
|Body and Shell Materials||Die-cast aluminum; PC Lens|
|Pole Fitter Diameter||60mm ( 50mm optional)|
|SPD||10KV (20KV optional)|
|Certification||CE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT|
|Control Options||Photocell or Smart control|
|Color Options||Deep grey|
How to dim led street lights？
Although LED street lighting has better luminous efficiency than gas discharge lamps, the only method to conserve energy is to adopt LED dimming technology. Because there are few automobiles and people on the road in the middle of the night, especially in urban road lighting projects, if the high illuminance of road lighting is maintained, not only is there no real illumination value, but also electric energy is squandered. It will not only fulfill people's travel requirements but also save energy if the brightness of the LED street light is suitably adjusted in the middle of the night, consequently lowering power and conserving electric energy.
MKLIGHTS lighting is a leading maker of LED street lights. Dimmable LED driving power is mostly used to achieve LED street light dimming. MKLIGHTS currently uses the following dimmable LED driving power supply in their LED street lights:
The first type is Timing dimming. Set the time for the controller to turn on and off ahead of time to save electricity.
The second type is dimming controlled by a 1-10VDC signal. That is, the LED driving power source is used to pull two signal control lines. When a 1-10V voltage signal is applied to the signal control line, the LED driving power supply adjusts the output voltage or current to match the signal voltage, allowing the LED street light to be adjusted in brightness.
The third type is DALI control dimming. DALI is the most sophisticated lighting control system on the planet right now. It can control each bulb independently, achieve linear control of brightness, color temperature, color, and other parameters, control lamps in groups, create various scenarios, schedule jobs, and monitor energy usage, among other things. A computer or other mobile terminals can control the lights and lanterns that are compatible with the DALI system.
Today, when the energy crisis is worsening and the outlook for the environment is bleak, it is the obligation of every lighting project developer to strongly campaign for energy-saving and intelligent urban road lighting projects. MKLIGHTS is a long-term concept of MKLIGHTS lighting that is based on leading technology and leading quality, as well as people's health and social ecology, responsibility, and long-term development goals. It is based on leading technology and leading quality, and it is based on people's health and social ecology, responsibility, and long-term development goals.
What are the possible failures of LED street lights?
Despite the fact that LED street light technology is already quite advanced. However, we know that every kind of street light may fail, so what kinds of failures can occur while using LED street lights? What should we do when these failures occur? How can it be avoided?
Fault 1: The LED street light does not light on.
There are several reasons why the LED street light does not light up, and you must first investigate.
1. All of the LEDs are turned off.
1) If the reason is a tripped mains protection switch, just turn it back on. If it doesn't light up even after you turn it on, it's likely due to a power failure in the LED drive.
2) The power supply for LED street lamps is weatherproof and sealed. It will be replaced if it is broken. The poor power supply protection feature will have a direct impact on the quality of the LED street light.
2. There are various possible explanations for just a portion of the damage:
1) Which group may be disrupted if the LED street light power source is the multi-channel constant output?
2) Either the LED chip is defective or the LED street lamp's heat dissipation is inadequate, causing the LED chip to burn out.
Fault 2: The LED street lamp's brightness decreases.
Because of the low quality of the LED chip within the light source, decreasing the brightness of the LED street lighting may result in significant light attenuation. We strive to force street light manufacturers to utilize imported LED chips when selecting LED street lamps. Furthermore, the fading of the brightness of the LED street lighting may be caused by the burnout of certain lamp beads within the light source. In this scenario, we must consider the capacitance or resistance of the LED street light.
Fault 3: LED street light flashes after being turned off.
If the light source continues to flicker after the LED street lamp has been switched off, this might be due to the self-inductance current created by the LED street lamp itself. To resolve this issue, purchase a 220V relay, connect the coil and the light source in series, and the problem of the LED street light, not lighting may be resolved.
Because such and other problems of LED street lights are expensive to eradicate and maintain, our best practice is to take measures. Look for more strong and more dependable manufacturers to purchase from. Before purchasing, check the product's quality by paying attention to the brand of each component, product inspection certifications and reports, and so on. MKLIGHTS is a producer of high-grade LED outdoor lighting fixtures with superb quality and first-rate service that may alleviate your concerns to the maximum degree possible.
