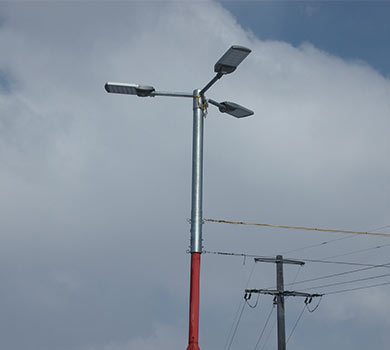

This is a hospital parking lot lighting project in Panama, using our SA series LED street lights with high luminous efficiency Philips LEDs and high-quality MEANWELL LED driver, modular design, good heat dissipation and very convenient maintenance, a single module to do 50W and 2 modules to do 60W, with daylight sensor to switch on/off, the installation includes one post single head, double heads, and four heads, the owner is very satisfied with the lighting effect.
Project Location： Panama
Hospital: HOSPITAL DRA.SUSANA JONES CANO
Project time： Mar. 2018
Product details：
50W LED Street Light, Model MK-SA1-50, 5700K, 3M, Lumileds 3030 chips， MW HLG driver, with photocell: 60 pcs
60W LED Street Light, Model MK-SA2-60(2 modules), 5700K, 3M, Lumileds 3030 chips， MW HLG driver, with photocell: 25 pcs
60W LED Street Light, Model MK-SA1-60, 5700K, 3M, Lumileds 3030 chips， MW HLG driver, with photocell: 30 pcs
LED Street Light, street lighting, street lights for sale, led street lighting, urban street lighting, street lamp lighting
Specification
| Model | MK-SA1-50 |
| LED Brand | Lumileds 3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 50W |
| LED Module Quantity | 1 module |
| Input Voltage | 100-240/277VAC/DC12/24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 135-165 lm/w |
| Lamp Rated Lumen output | 6750-8250 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000 or 4000 or 5000 or 5700K |
| Optic (IESNA) | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Specification_SA_LED Street Light_60W.pdf
Installation Manual_StreetLight_SA.pdf
|
|
|
| LED Street Light | Street lighting | Street lights for sale |
|
|
|
| LED street lighting | Urban street lighting | Street lamp lighting |
|
|
| 10 Important Facts About Led Street Light | |
|
|
| LED street lamps VS high-pressure sodium lamps | How to calculate illumination uniformity? |
How bright is a parking lot light?
We usually recommend two LED parking light caps of 20,000 lumens each, with each pole about 15-20 feet high. Place the poles about 20 feet apart. That's average illumination. If you want your space to be more attractive, make it brighter and taller.
How many watts are parking lot lights?
LED parking lights have an average power range of 65 to 400 watts, while HID (large fluorescent lamps traditionally used in parking lots) range from 400 to 1,000 watts. This could save thousands of dollars in electricity bills by switching to LED streetlights.
What is the best color temperature for parking lot lighting?
Color temperature range from 3500K to 5000K, suitable for most parking lots. What makes people feel more comfortable is natural white light.
