The LED Street Light Project is part of the Public Sector Smart Energy Initiative created by the Government of the Czech Republic in 2013 to promote the use of renewable energy (RE) and energy efficiency in the public sector.

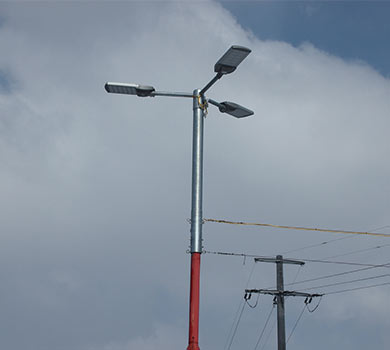

This is a street light project done in the Czech in 2018. The client chooses our street light cause it supports vertical installation, and with high light efficiency, The 25w led street light can replace the 100w high-pressure sodium lamp, in addition, the lamp adopts a tool-free buckle design, which is convenient for maintenance. The backlight shield optic lens selected by the client can reduce the impact of light pollution on neighbors.
Project Location: Czech Republic
Project time: 2018
Luminaire details:
Street lighting, 25W LED Street Light, Model: ZGSM-LD25KS, 4000K, 2M, 2pcs
LED Street Light, cobra head led street light, led street light heads, led street light 50 watt, best led street light, wipro street light, streetlight
| Specifications | |
| Model | MK-SB1-25 |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell / Inventronics |
| Normal Wattage | 25W |
| Input Voltage | 100-240/277VAC/347V/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-150 lm /w |
| Lamp Rated Lumen output | 3250-3750 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000 or 4000 or 5000 or 5700K |
| Photometric Type | Type II Medium; Type III Medium |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK08 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or NEMA or ZHAGA for Smart control |
| Color Options | Deep grey or Light grey |
| Warranty | 5 years |
Specification_SB_street lighting lamp.pdf
|
|
|
| cobra head led street light | led street light heads | led street light 50 watt |
 |  |  |
| best led street light | wipro street light | streetlight |
|
|
|
| led street light with motion sensor in Norway | 90w LED Street Light in Italy | 200W LED Street Light in Austria |
|
|
|
| 65w LED Street Light in DUBAI | 60w LED Street Light in Panama | 100w LED Street Light in USA |
|
|
| 10 Important Facts About Led Street Light | |
|
|
| Standard for lighting design of urban road |
a. What are smart street lights?
A smart street light is a public lighting fixture that combines technologies such as cameras, photocells, and other sensors to introduce real-time monitoring capabilities.
b. What is IOT based street light monitoring system?
The automated street lamp management system using the Internet of Things aims to save energy by reducing electricity waste as well as reducing manpower.
c. How many watts is a city street light?
The lights used in street lamps vary in size and consumption (typically between 20 and 250 watts), depending on whether they illuminate residential areas, main roads, or city centers.
d. What is the purpose of street lights?
The fundamental purpose of street lighting is to help drivers, pedestrians and cyclists find their way around in the dark. Many community groups believe that extra lighting can help prevent crime, and that commercial lighting may also help create an atmosphere or a pleasant environment.
