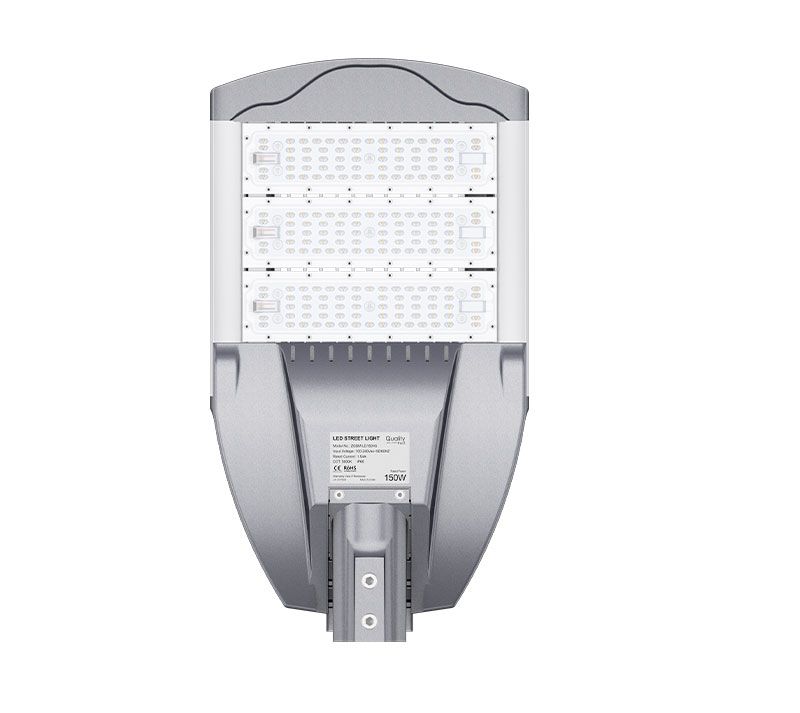

LED Street Light with Motion sensor and smart controller

SA series led street lights can be installed with ZHAGA and NEMA base adaptable smart controller to achieve remote control of street light switch, dimming and other operations on the computer or cell phone, while motion sensor can be installed to achieve the energy-saving mode of light on when people come and light off when people leave.

Key features

LED Street Light


Big power range from 30-300w.

High output lumen efficiency, up to 170lm/W.

Die-cast aluminum housing.

Modular design allows for easy installation, replacement, and maintenance. This design also creates a chimney effect which provides exceptional thermal management.

Provided with 10KV Surge Protection Devices.

Corrosion-resistant polyester powder painted 100µm in thickness.

Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.

Over 10 optical lenses are available for virtually any application.

0, +/-5, +/-10, +/-15 degree of tilting angle adjustment.

Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.

e.g. photocell, motion sensor, DALI, 1-10V.

CE/ RoHS/ IK10/ IP66 / LM80/ LM79.

100,000 hours lifetime saving maintenance cost

7 years limited warranty available.



Application:

Roads, Street, Highways, Parks and gardens, Residential areas

Datasheet

LED street light with sensor


Specifications
ModelMK-SA3-120
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Nominal Wattage120W
LED Module Quantity3 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency145-170 lm/w
Lamp Rated Lumen output17400-20400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000 or 4000 or 5000 or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download

FAQ

  1. How Do Motion Sensors Work?

    A motion sensor is a critical component of a home security system. For instance, while door and window sensors notify a homeowner when someone enters the house, outdoor light motion sensors notify them when there is motion outside. While there are numerous motion sensors available, the majority use the same technology to detect movement by detecting specific indications such as vibration, temperature, or radiation.

    Outdoor lighting with motion sensing is a passive system that detects infrared energy. Passive Infrared Detectors (PIR) or pyroelectric sensors are the terms used to describe these sensors. This type of motion sensor is temperature-sensitive.

    You may have noticed that certain lights are sensitive to motion but not to a stationary object. This is because the sensors are actively looking for a change in the amount of infrared energy they are sensing. As a result, when a person passes, the infrared radiation in that field of view changes and may be easily identified. Similarly, motion sensors should be capable of promptly detecting changes.


  2. Why do we need smart street lights?

    By enhancing safety and reducing congestion, smart street lights contribute to more livable communities. Cost savings on energy. Smart street lights handle electricity more efficiently, resulting in larger cost savings when compared to standard LED luminaires. Opportunities for increased revenue.


  3. What are street sensor motion lights?

    A motion sensor-controlled street lighting system that automatically activates when a car or pedestrian is detected in the vicinity. If there is no activity in the vicinity, the light is automatically changed to an optimally low level of illumination.
