CE Class II 100w LED Street Light Fitting

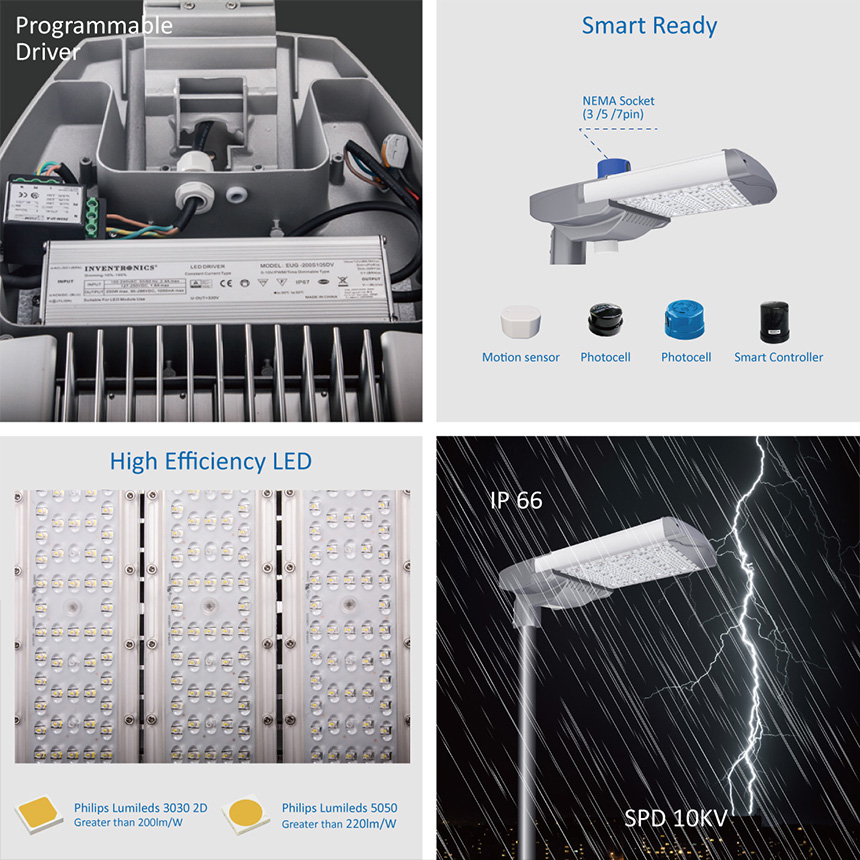

CE certified Class II 100w street light, using programmable Inventronics Class II driver, similar to havells street light, high quality but competitive price, also can be configured with Class 1, Class 2 LED driver and motion sensor for sell, as LED street light supply MKLIGHTS can provide various lighting solutions, welcome to contact.

Key features

Street light fitting


Big power range from 30-300w.

High output lumen efficiency, up to 170lm/W.

Die-cast aluminum housing.

Modular design allows for easy installation, replacement, and maintenance. This design also creates a chimney effect which provides exceptional thermal management.

Provided with 10KV Surge Protection Devices.

Corrosion-resistant polyester powder painted 100µm in thickness.

Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.

Over 10 optical lenses are available for virtually any application.

0, +/-5, +/-10, +/-15 degree of tilting angle adjustment.

Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.

e.g. photocell, motion sensor, DALI, 1-10V.

CE/ RoHS/ IK10/ IP66 / LM80/ LM79.

100,000 hours lifetime saving maintenance cost

7 years limited warranty available.



Application:

Roads, Street, Highways, Parks, gardens, Residential areas

Datasheet

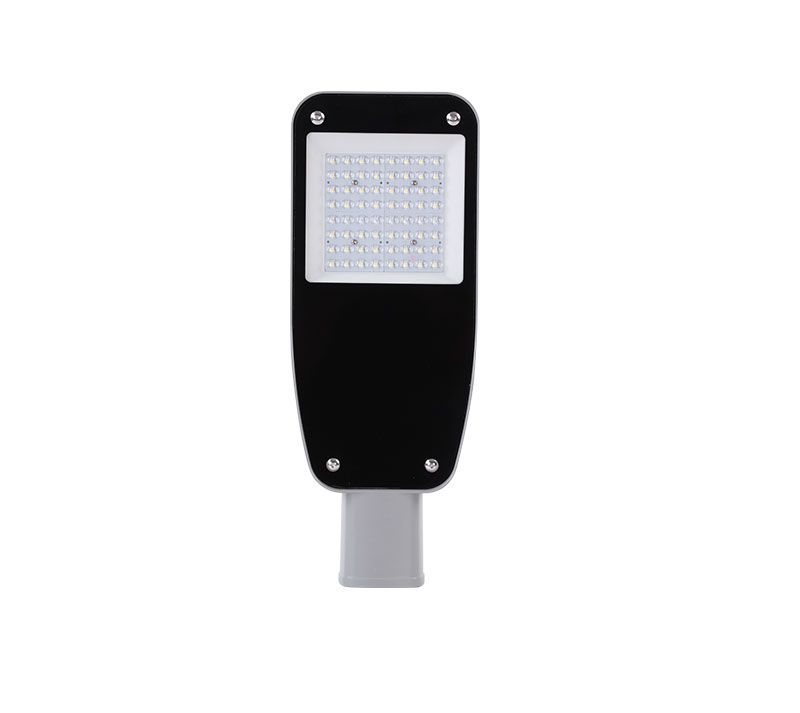

100w street light fitting


Specifications
ModelMK-SA2-100
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage100W
LED Module Quantity2 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency135-165 lm/w
Lamp Rated Lumen output13500-16500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000 or 4000 or 5000 or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years




Download

FAQ

  1.  Why LED street lights?

    Prior to the emergence of LEDs, municipal governments depended on conventional street lights such as fluorescents, sodium vapor, or mercury vapor. While these lights provided the requisite levels of lighting, they were nevertheless subjected to a variety of maintenance, durability, and efficiency challenges. Thus, authorities have steadily increased their dependence on LED-based and solar-powered street lighting systems in order to reap the greatest advantages.

    Several significant advantages of LED street lighting include the following:

    • Increased efficiency and better illumination with less power usage.

    • Liberates municipal governments from routine maintenance worries. For example, LED lights can operate for about 100,000 hours, much longer than any other kind of illumination.

    • LEDs provide accurate color reproduction and great glare reduction. This enables drivers to perceive items easily and simply.

    • Unlike sodium vapor and mercury vapor lights, which take a long time to warm up and turn on, LEDs are battery-powered and have instant "On & Off" functionality.

    • In the winter, fluorescent lights provide less light. This is not the case, fortunately, with LED street lights.

    • LED street lights repel nocturnal insects.

    Additionally, LED street lights are more robust, resilient, and environmentally friendly than any other kind of illumination available on the market. MKlights ensures that our products are sufficiently diverse to be readily handled, maintained, and monitored. For example, our SE LED street lights are encased in an aluminum die-cast shell and have an IP66 certification, indicating their longevity, dependability, and efficiency.

  2. How to select a street lighting solution?

    Before selecting a street lighting option, municipal governments should always perform extensive studies. They should analyze all factors, including the lumen output, the number of street lights needed, the IP rating, the pole height, and the LED package, before making an educated selection.

  3. Does Street Lighting Reduce Crime?

    There has always been a link between light and crime. Consider the words "in a dark alley" and what immediately comes to mind. Street lights have been shown to significantly reduce robberies, burglaries, property defacement, and other crimes that often occur in the dark. By ensuring enough illumination surrounds your property, you may mitigate dangers and prevent encouraging illegal behavior.
