50w led street light fixture

50w led street light fixture

Key features

50w led street light fixture

led street light fixture, streetlight lamps, highway street lights, street light fixture, city streetlight

Big power range from 30-300w.

High output lumen efficiency, up to 170lm/W.

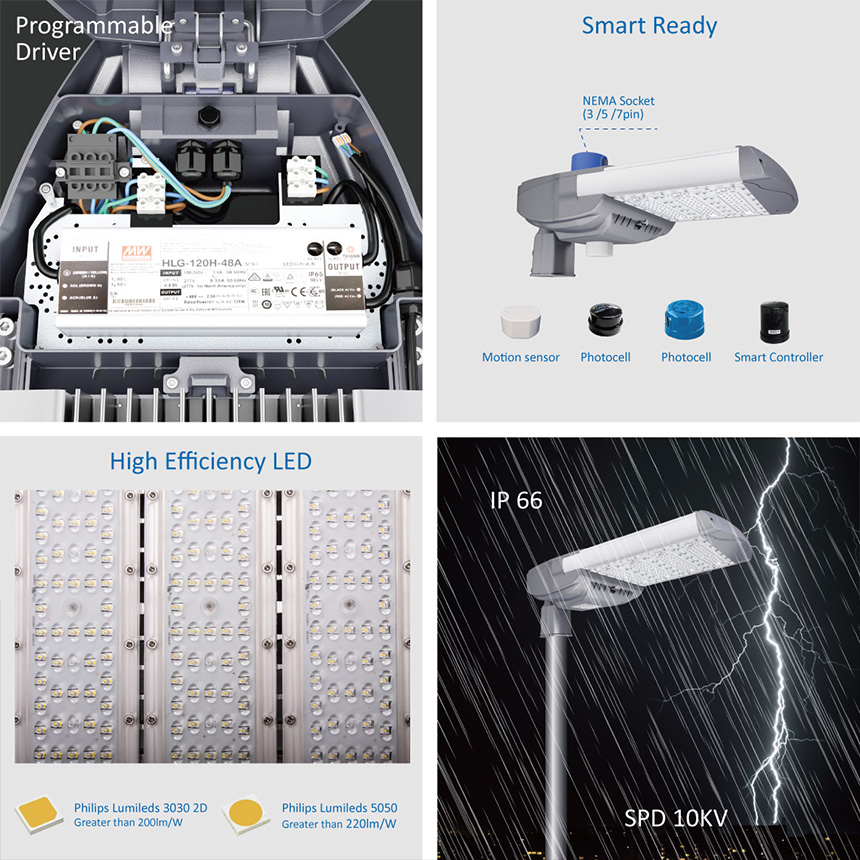

Modular design allows for easy installation, replacement, and maintenance. This design also creates a chimney effect which provides exceptional thermal management.

Toolless open for easy installation, replacement, and maintenance.

Power-off protection makes the power automatically off when the fixture is opened.

Level bubble makes it easy for the installer to adjust the position of the lamp.

Tool-less entry to the driver compartment.

Provided with 10KV Surge Protection Devices.

Corrosion-resistant polyester powder painted 100µm thickness.

Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.

Over 10 optical lenses are available for virtually any application.

0, +/-5, +/-10, +/-15 degree of tilting angle adjustment.

Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.

e.g. photocell, motion sensor, DALI, 1-10V.

100,000 hours lifetime saving maintenance cost

CE/ RoHS/ IK10/ IP66 / LM80/ LM79

7 years limited warranty available.



Application:

Roads, Street, Highways, Parks, and gardens, Residential areas

Datasheet

50w led street light fixture

led street light fixture, streetlight lamps, highway street lights, street light fixture, city streetlight

Specifications
ModelMK-SA1-50
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage50W
LED Module Quantity1 module
Input Voltage100-240/277VAC/DC12/24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency135-165 lm/w
Lamp Rated Lumen output6750-8250 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Optic (IESNA)Type I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Description

50w led street light fixture

led street light fixture, streetlight lamps, highway street lights, street light fixture, city streetlight

led street light fixture

Video

50w led street light fixture

led street light fixture, streetlight lamps, highway street lights, street light fixture, city streetlight


Download

FAQ

Packing Details
Fixture Dimension478x316x139 mm
Fixture Weight       5.75 kg
Packing Dimension520x370x200 mm
Packing Weight       7.05 kg
