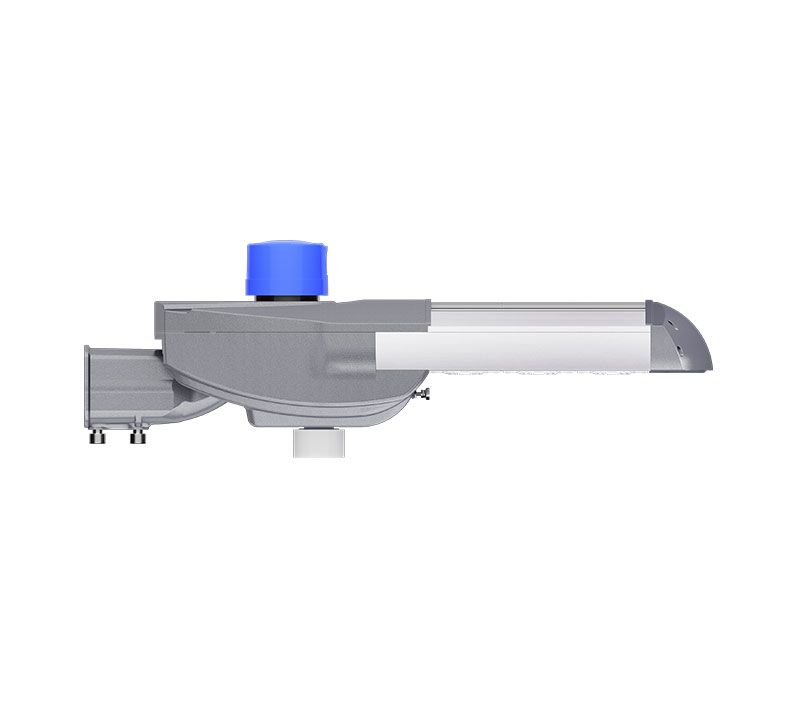

200W LED street light can provide various functional parameters and test report required by bidding, such as high light efficiency 165LM/W, 1-10V dimming, DALI/DALI2 dimming, CLASS II, NEMA base, ZHAGA socket, mounting bracket ±15 degrees adjustable, LM80, LM79, ISTMT, TM-21, CE, IP66, IK10, L90>100,000hrs and etc
Led street lighting, street lighting supplies
Big power range from 30-300w.
High output lumen efficiency, up to 170lm/W.
Modular design allows for easy installation, replacement, and maintenance. This design also creates a chimney effect which provides exceptional thermal management.
Toolless open for easy installation, replacement, and maintenance.
Power-off protection makes the power automatically off when the fixture is opened.
The level bubble makes it easy for the installer to adjust the position of the lamp.
Tool-less entry to the driver compartment.
Provided with 10KV Surge Protection Devices.
Corrosion-resistant polyester powder painted 100µm in thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Over 10 optical lenses are available for virtually any application.
0, +/-5, +/-10, +/-15 degree of tilting angle adjustment.
Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.
e.g. photocell, motion sensor, DALI, 1-10V.
100,000 hours lifetime saving maintenance cost
CE/ RoHS/ IK10/ IP66 / LM80/ LM79
7 years limited warranty available.
Application:
Roads, Street, Highways, Parks, gardens, Residential areas
| Specifications | |
| Model | MK-SA4-200 |
| LED Brand | Lumileds3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Nominal Wattage | 200W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 135-165 lm/w |
| Lamp Rated Lumen output | 27000-33000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000 or 4000 or 5000 or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Attracting private money via Public-Private Partnerships (PPPs) may assist municipalities in raising the finances necessary to build intelligent street lighting systems that ensure long-term efficiency and compliance with technical requirements.
A shoebox is a kind of light fixture that may be used both inside and out. Security lights, street illumination, vast parking lots, streets, and parks are all included. The Shoebox is named because of its rectangular shape, which resembles that of a shoebox.
It is a good idea to replace your existing light with a new LED street lamp. As is the case with many things, this alternative has a number of advantages and disadvantages. The primary disadvantage of changing your light is the project's initial expense. LED street lighting fixtures are often more expensive than accessible retrofit kits. Though the initial investment is more than retrofitting, installing a new fixture wins the efficiency race.
Instead of being retrofitted with LED technology, the replacement fixtures are intended to perform with LED technology. If keeping the appearance of your present fixture is not a concern, then replacing it is the best option. You can determine the wattage equivalent of your existing street light fixture.
| LED Wattage | Metal Halide Wattage |
| 30W | 70W |
| 50W | 150W |
| 90W | 175W |
| 160W | 400W |
| 250W | 1000W |
| 100W | 500W |
