The 90w city urban street light adopts a European design style, and supports hanging mounted, side enter mounted, post top mounted, and suspended mounted with optional mounting accessories, toolless buckle design, easy for maintaining and upgrading, and suitable for Garden and Footpath Lighting. factory directly price, welcome inquiry.

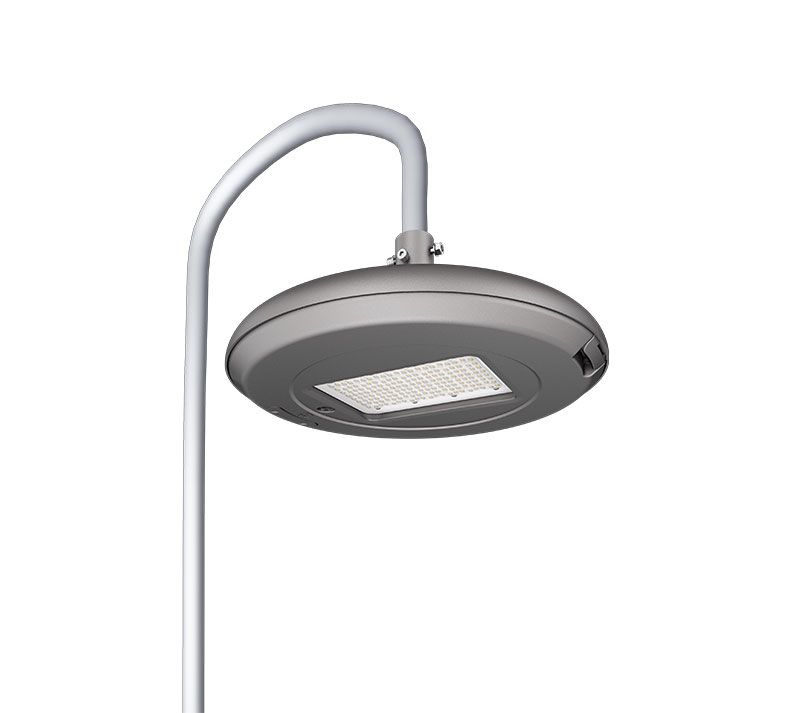

90w Urban Street Light | Garden and Footpath Lighting
Urban street lighting, urban street light, urban light, urban road light, led urban light
Die-cast aluminum housing with flat tempered glass.
Toolless open for easy installation, replacement, and maintenance.
Power-off protection makes the power automatically off when the fixture is opened.
A smooth body would greatly diminish dust accumulation and bird droppings heap up.
Possible energy savings of more than 70%. 100,000 hours lifetime saving maintenance cost.
The LED engine, consisting of the LED light source and the power supply, can be easily replaced or upgraded. Designed for easy technology upgrade (Future Proof)
Electronic temperature monitoring prevents overheating of LEDs and power supply.
Provided with 10KV Surge Protection Devices.
Corrosion-resistant polyester powder painted 100µm in thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Optimized roadway photometric distributions, ULOR = 0 (zero uplight)
Post-Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.
Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.
e.g. photocell, motion sensor, DALI, 1-10V.
CE/ RoHS/ IK08/ IP66 / LM80/ LM79.
7 years limited warranty available.
Application:
Urban Roads, Urban Street, Parks and gardens, Residential areas
90w Urban Street Light | Garden and Footpath Lighting
| Specifications | |
| Model | MK-SCX-90( X= 1,2,3,4) |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell HLG series/ Inventronics |
| Normal Wattage | 90W |
| LED Chip Quantity | 3030: 168pcs 5050: 84pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-150 lm /w |
| Lamp Rated Lumen output | 11700-13500 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium; TypeV, Short |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| Pole Fitter Diameter | 60mm |
| Rating | IP66 IK08 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Deep grey |
| Warranty | 7 years |
There are four major things that effective street lighting may accomplish:
Reduce the dangers connected with late-night and midnight accidents.
Dissuade people from committing criminal acts like vandalism and burglary.
Keep your property and structures safe.
Increase the safety of the living environment.
The arrangement of lights may assist emphasise the function of a route and create an urban appearance. When two light poles are erected, a road entry might resemble a gateway. The lighting design must take into account any plants and trees (which will still grow).
Proper illumination should increase the security and safety of pedestrians, drivers, and cyclists. It may aid to illuminate a road's curves and bottlenecks, helping cars to identify potential hazards and one another. It may also assist to reduce criminal anxieties.
It is critical to provide street lighting at road access points as well as along shared roadways, sidewalks, and driveways. The design must take into account their location as well as potential shrub and tree development. The illumination should reduce the susceptibility of bikers and pedestrians to shadows.
Lighting poles, as well as their fittings and accessories, must be tamper-resistant and installed in locations where automobiles cannot readily harm them. They must be aligned with other street accessories to enhance the area and in non-obstructive areas.
While there are several types of urban design street lights to explore, four stand out above the rest:
Metal Halide Street Light - This kind of light is utilized in places that need a lot of brightness, such as parking lots, stadiums, and streetlights. These lamps, which emit white light, cause severe light pollution yet are very efficient. They have excellent color rendering, which implies that items underneath them retain their original hue.
High-Pressure Sodium Street Lights - This kind of street light is used in many nations to provide strong light using a combination of gases and electricity. The light emits a yellow-orange glow and is very efficient. The light requires very little maintenance.
Low-Pressure Sodium Street Lights - These lights are similar to HPS lights in that they provide a warm yellow/orange tint rather than a white tone. Although it is an efficient light, it may take some time for the bulb to fully illuminate.
Light-Emitting Diode Street Lights - LED technology has advanced rapidly in the previous decade, with the bulbs now being used in outdoor lighting. Despite the energy savings they provide, white-blue light may be harmful to both human and animal health. They may greatly cut power usage when used in conjunction with solar panels.
