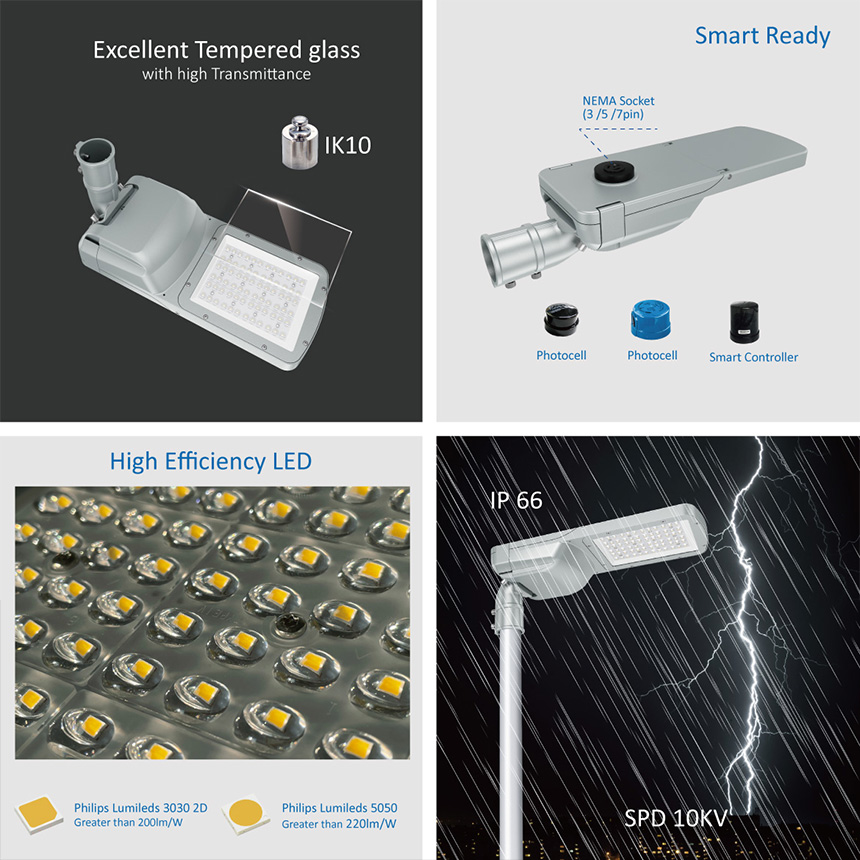

SE series 80w street lamp adopts tool-free buckle design, Philips LEDs and Inventronics programmable driver, efficiency> 170LM/W, IK 10 rated tempered glass, IP66 waterproof, adjustable bracket, respirator, knife switch, L90B10>100,000 hrs, can be connected to ZIBGEE or LORA smart control system with NEMA and ZHAGA base.
Wide power range: 20W~240W
Luminaire efficacy: Up to 170 lm /w
70% energy saving, short ROI period
Up to 100, 000hrs @ L70, low maintenance cost
World-class, approbated quality components (LEDs /Driver /etc.)
Tool-less opening of driver box, ease of maintenance
Support horizontal and vertical mounted, suitable for different light poles
High-pressure die-cast aluminum and Tempered glass cover
More than 10 types of light distributions for optional
Power-off protection makes the power automatically off when the fixture is opened.
A smooth body would greatly diminish dust accumulation and bird droppings heap up.
Level bubble makes it easy for the installer to adjust the position of the lamp.
1500 hours salt spray test report.
Applications
Local roads, Express roads, Town roads, Residential area roads, Pedestrian crossings, Parking areas
| Specifications | |
| Model | MK-SE1-80 |
| LED Brand | Lumileds 3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Norminal Wattage | 80W |
| Input Voltage | 100-240/277VAC/DC12/24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-155 lm/w |
| Lamp Rated Lumen output | 11200-12400 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000 or 4000 or 5000 or 5700K |
| Optic (IESNA) | Type II Medium; Type III Medium |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast aluminum Housing and Tempered glass |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,ENEC,CB,LM80,LM79,IP66,IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Available on request | NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming |
| Warranty | 5 years |
How many hours need to install a Solar Led street light？
Installing a solar or wind LED street light isn't difficult; in fact, anyone prepared to do it on their own may accomplish it quickly.
Step 1: Dig a hole for the installation.
Once you've determined where you want your solar LED street light to go, double-check that you've drilled a proper hole in the ground.
But how would you go about doing it? For excavating the hole, you have two possibilities.
1. If you use the excavator, it will only take you around 2-3 minutes to complete the task.
2. The alternative option is to dig the hole by hand with a shovel. If there is just one man working on the project, it will take one hour to finish.
Step 2: Put the concrete foundation kits together.
This method necessitates the use of cement since a sufficient foundation must be laid in order for the street pole to be securely supported.
If done by one person, this process will take about 20 minutes.
Step 3: Make the wire connections in step three.
This task necessitates concentration, as you must ensure that all cables leading to the lights and the battery are properly linked. It will take you 20 minutes if you do it alone.
Step 4: Fix the pole to the foundation kits in step four.
The final step in installing a solar LED street light is to secure the pole in the foundation you worked so hard to find.
Try to correctly install the solar or wind-powered streetlight, because if you make a mistake, you'll have to start over.
With the use of a crane and two workers, this process takes about 5-7 minutes. On the other hand, if you do it by hand, it will take about 15-20 minutes. Aside from that, you'll need at least four to five men to assist you in correctly installing it.
In short, if done correctly and step by step, the entire installation should take no more than 2 hours.
How many meters is the distance between street lights?
The distance between street lights is governed by the type of road, such as manufacturing roads, country roads, and urban roads, as well as the street light power, which ranges from 30W to 120W to 150W. The distance between street lights is determined by the width of the road surface and the height of the street light poles, and the distance must be established by the meter. Inadequate street lamp pole spacing and excessive elevation angles of the lamps are insufficient to provide basic lighting functions. Some cities' street lamp poles are currently either too massive or too utilitarian to pursue artistic and tasteful goals. This results in dazzling road illumination. Depending on the varying road density circumstances, On urban roads, the distance between street lights is usually between 25 and 50 meters. When the light source is not very bright, the distance is not very brilliant if it is a tiny street lamp such as landscape lights, courtyard lights, etc. It can be reduced somewhat and spaced around 20 meters apart, depending on the needs of the customer or the design.
