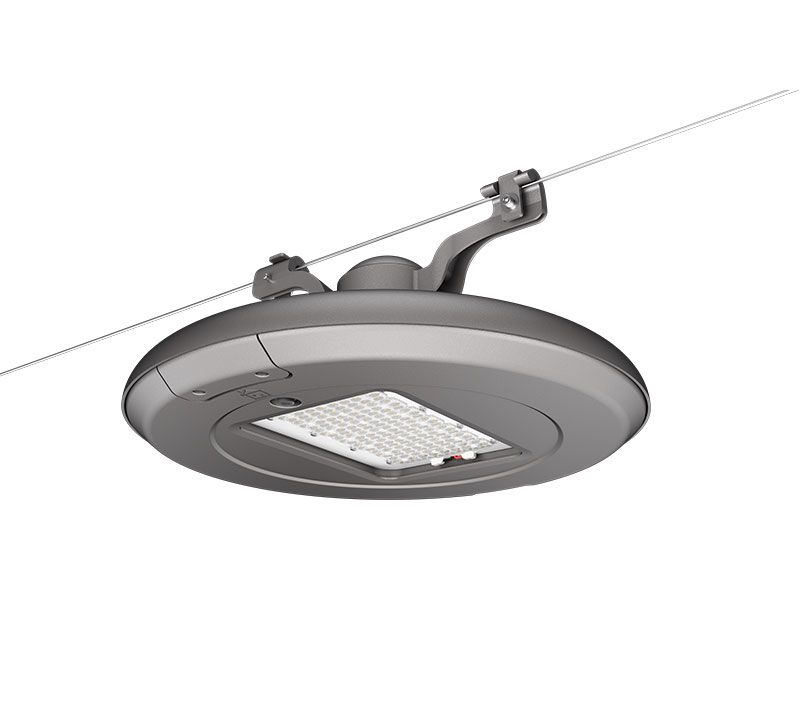

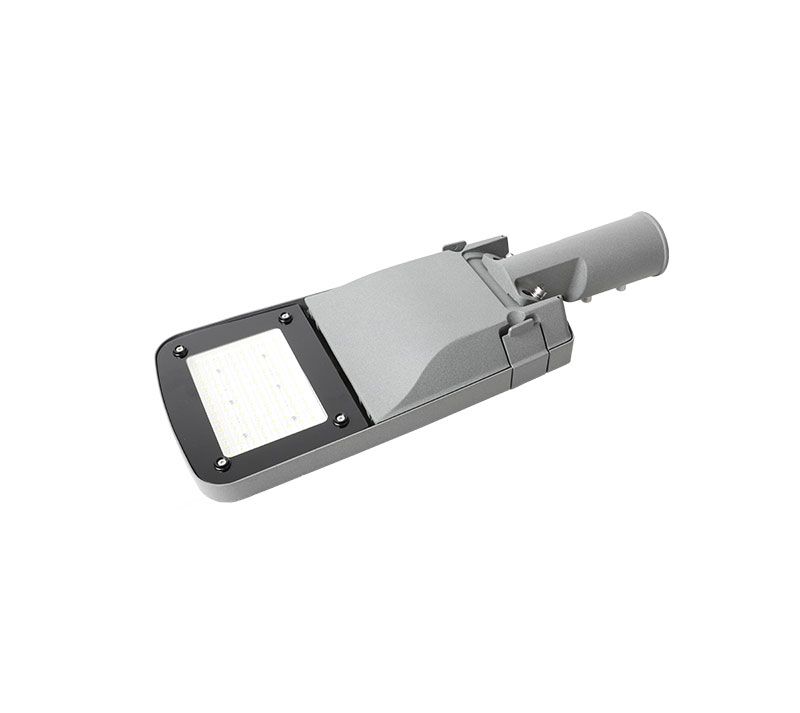

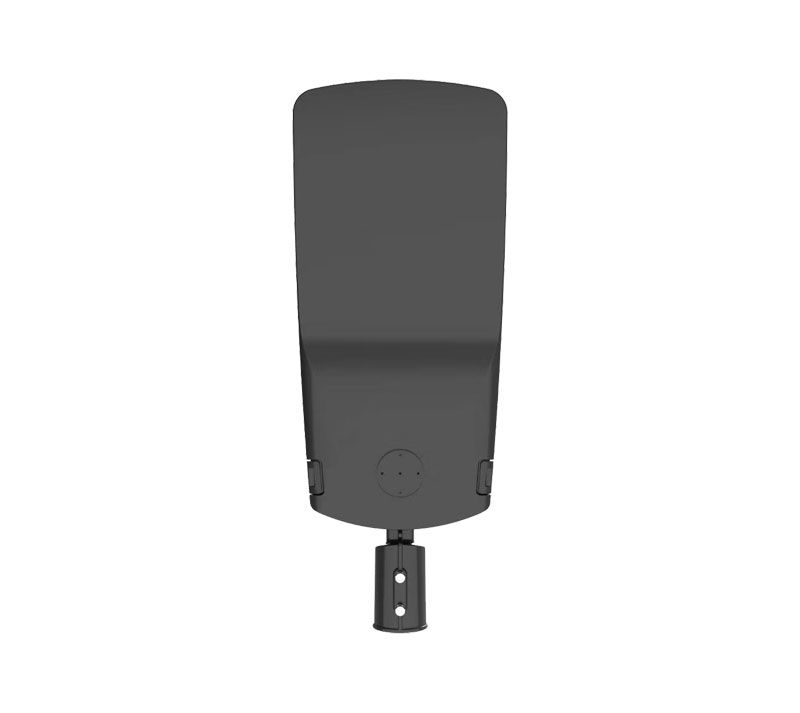

60w outdoor street light with high luminous efficiency Philips LED and Osram LED driver, L90 more than 100,000 hours, luminous efficiency up to 150LM/W, smooth body, not easy to accumulate dust and bird droppings, as a LED street light manufacturer, MKLIGHTS not only supply LED street light but also provide various styles of light poles.
Wide power range: 30W~240W.
Special circuit design, single LED damage won't affect others' normal work.
Toolless open for easy installation, replacement, and maintenance.
Power-off protection makes the power automatically off when the fixture is opened.
Smooth body would greatly diminish dust accumulation and bird droppings heap up.
Level bubble makes it easy for the installer to adjust the position of the lamp.
High Lumen output up to 150lm/ w with high-quality LED chips.
Vertical and horizontal installation are both available adjustable by ±15° in both directions.
Multiple lighting control options are available, e.g., DALI, 1-10V, photocell, and motion sensor.
Designed to last at least 100, 000 hours at L70.
Multiple lighting distributions are available.
CE/ RoHS/ IK08 /IP66 /LM79
5 years limited warranty available.
Street, highway, park lot, roadway, path, etc.
|LED Brand||LUMILEDS® LUXEON 3030 or 5050|
|Driver Brand||Meanwell / Inventronics|
|Lamp Rated Luminous Efficiency||130-150 lm /w|
|Lamp Rated Lumen output||7800-9000 lm (Lumen tolerance +/- 5%)|
|Color Rendering Index||70(80 optional)|
|Color Temperature||3000K or 4000K or 5000K or 5700K|
|Photometric Type||Type II Medium; Type III Medium|
|Optimal Operating Temperature||25℃|
|Working Environment||Between-40°C~+50°C, 10%~90%RH|
|Total Harmonic Distortion||< 10%|
|Lumen Maintenance||> 100,000 hours -L70, @25 ºC (77 ºF)|
|Wind Index||Force 12|
|Body and Shell Materials||Die-cast aluminum; Tempered Glass|
|Pole Fitter Diameter||60mm ( 50mm optional)|
|Protection||Class I ( Class II optional)|
|SPD||10KV (20KV optional)|
|Certification||CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT|
|Dimming Options||1-10V or DALI or PWM or Timer|
|Control Options||Photocell or Motion sensor or NEMA or ZHAGA for Smart control|
|Color Options||Deep grey or Light grey|
When the price of an entire set of LED street lights is estimated, the primary price is divided into three parts: lamps with light sources, LED street lamp power supplies, and street lamp poles.
In addition to distinguishing the size and style of lighting lights, the network speed size, and the brand of the light source, speak in depth. There are various packaging expenses, such as hidden cage, that are also a tiny portion of the price. LED street light power supply to differentiate between the brand and wattage, as well as the lamp pole to distinguish height, material, thickness, etc.
Overall, the price structure of LED street lights is defined by the unique demand arrangement, with no standard pricing. It seems that LED street lighting with the same configuration and appearance may frequently be found at various different costs.
The quality of chips and lamp beads
LED street lights employ solid-state semiconductors to convert electrical energy into light energy, and the chip's quality directly influences the lamp beads' luminous quality.
Domestic, Taiwanese, and overseas chips are available.
The cost varies substantially amongst chips.
Lamp bead material, welding line, filling glue, and other materials and quality procedures are also available.
LED packaging technology
LED packaging is the packaging of light-emitting chips that must not only protect the wick but also allow light to pass through.
The two most common types of packaging are resin and silicone.
The resin container is less expensive, but everything else remains the same.
Because the heat dissipation performance of the silica gel packaging is superior to that of the resin package, the price is somewhat more.
Radiators and heat dissipation technology
When the lamp bead is turned on, some of the electric energy is transformed into heat energy.
The LED lamp's service life would be adversely impacted if the heat dissipation is inadequate.
This requires a good auxiliary heat source, namely passive and active heat dissipation.
For passive heat dissipation, most manufacturers now employ aluminum as a radiator because of its lightweight, cheap cost, and high thermal conductivity.
And the current plastic bag aluminum heat dissipation benefits compared to aluminum have become the market trend.
Air cooling, liquid cooling, heat pipes, and semiconductor refrigeration are the four types of active heat dissipation.
LED street light main board structure
At the moment, there are two types of constant voltage and constant current mainboards on the market.
When the lamp's body temperature rises, steady pressure is unable to protect the motherboard, reducing the lamp's life.
While constant current motherboards have excellent stability and performance, they are more costly.
At the same time, various specs, brands, and even styles will command varying costs.
The thickness, material, and height of the lamp pole vary, as do the patents on the lamp's technology and look. The quality of the power supply, as well as the kind and brand quality of the controller, all influence pricing.
The pricing structure of LED street lighting is defined by the actual user demand.
Someone previously inquired about the cost of LED street lighting and provided me with a particular setup. For the same setup, I can match at least three pricing. Of course, the same configuration, and various costs, depending on the brand's quality, which is also, as I previously said, a cheap slogan for low-grade items.
That is why they inform street light engineers, particularly novice purchasers, that they can offer the same setup for 30% less than their competitors.
