Tool-less 160w road street light with knife switch
Tool-less 160w road street light with knife switch
road street light,led road light,led street light fixture,residential street lights,best led street light
Big power range from 30-300w.
High output lumen efficiency, up to 170lm/W.

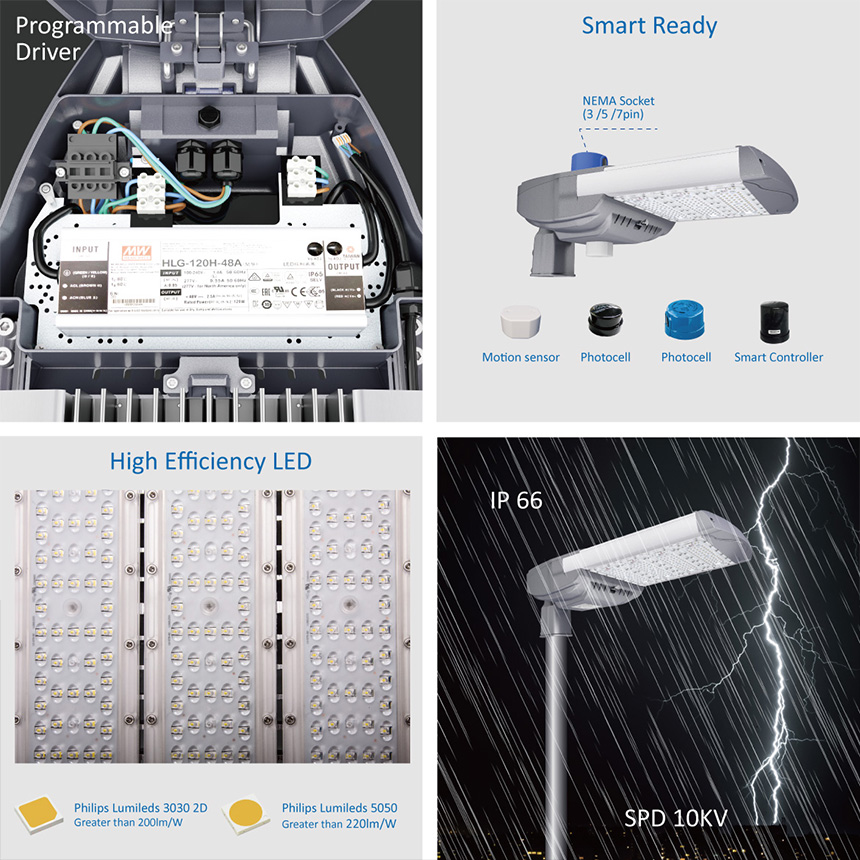

Modular design allows for easy installation, replacement, and maintenance. This design also creates a chimney effect which provides exceptional thermal management.
Toolless open for easy installation, replacement, and maintenance.
Power-off protection makes the power automatically off when the fixture is opened.
Level bubble makes it easy for the installer to adjust the position of the lamp.
Tool-less entry to the driver compartment.
Provided with 10KV Surge Protection Devices.
Corrosion-resistant polyester powder painted 100µm thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Over 10 optical lenses are available for virtually any application.
0, +/-5, +/-10, +/-15 degree of tilting angle adjustment.
Supports Smart City application,7-Pin NEMA socket, and standard outdoor dimming protocols.
e.g. photocell, motion sensor, DALI, 1-10V.
100,000 hours lifetime saving maintenance cost
CE/ RoHS/ IK10/ IP66 / LM80/ LM79
7 years limited warranty available.
Application:
Roads, Street, Highways, Parks and gardens, Residential areas
Tool-less 160w road street light with knife switch
road street light,led road light,led street light fixture,residential street lights,best led street light
| Specifications | |
| Model | MK-STA4-160 |
| LED Brand | Lumileds 3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 160W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 145-170 lm/w |
| Lamp Rated Lumen output | 23200-27200 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Tool-less 160w road street light with knife switch
road street light,led road light,led street light fixture,residential street lights,best led street light
Tool-less 160w road street light with knife switch
road street light,led road light,led street light fixture,residential street lights,best led street light
| Packing Details | |
| Fixture Dimension | 697x316x139 mm |
| Fixture Weight | 8.65kg |
| Packing Dimension | 745x370x200mm |
| Packing Weight | 10.35kg |
