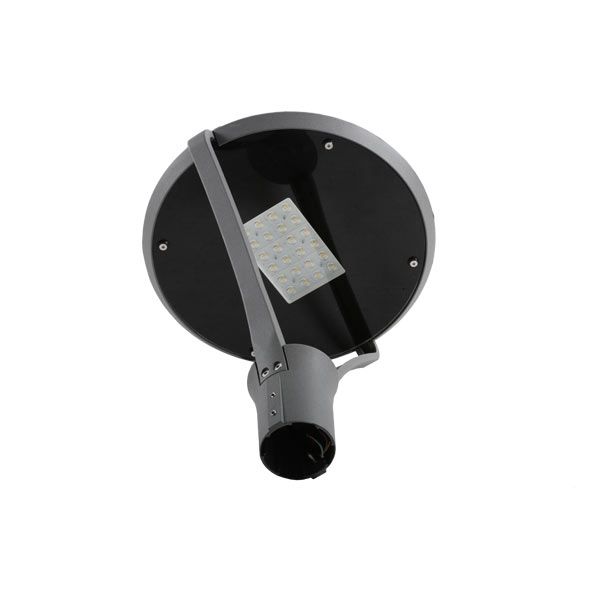

50w garden street lamp

50w garden street lamp

Key features

50w garden street lamp

garden street lamp, garden street light, post top led lights, led post top lights, post top led street lights


The whole lamp ADC12 aluminum shell is die-casted

The luminous efficiency of the lamp reaches 130LM/W

Tempered glass surface, high light transmittance

IP66 waterproof, dustproof and explosion-proof

Through the secondary optical design, more than 6 kinds of spectral lenses can be selected, which can meet different road lighting requirements

Using high-quality LED lamp beads and LED driver to ensure the long life of the lamp

The lamp shell is treated with anti-ultraviolet and high anti-corrosion plastic powder

Can be used for various direct light pole diameters

Protection class CLASS I, CLASS II is also optional

The lamps have passed the European CE certification

The luminous flux maintenance rate is 70%, the time used is 100,000 hours, and the maintenance cost is ultra-low

Compared with traditional light sources, the energy-saving rate is as high as 70%

High power factor, low harmonic distortion

The basic options of NEMA and ZHAGA can be used to access the city's intelligent control system in the future

Provide a variety of programmable LED drivers, such as Inventronics, Philips, and Osram, with long life and many functions.

5-year warranty.


application.

Roads, streets, parking lots, parks, gardens, branch roads, factories, schools, gardens, various residential quarters, and courtyards.


Datasheet

50w garden street lamp

garden street lamp, garden street light, post top led lights, led post top lights, post top led street lights

Data
ModelMK-GB-50
LED BrandPhilips Lumileds /Bridgelux
Driver BrandMW, PHILIPS,DONE,OSRAM
Power50W
Voltage90-305VAC/347V/480V
Driver Efficiency>90%
PF>0.90
Light Efficiency>130 lm /w
Luminaire lumens>6500 lm
CRI>70
Color temperature2700,3000K,4000K,5000K,5700K,6500K
Light distributionType II; Type III, Type V
Working Temperatures-40°C~50°C
Working Environment-40°C~+50°C, 10%~90%RH
THD< 15%
Lifespan> 100,000 hours
Wind resistanceForce 16
MaterialsDie-cast aluminum/Tempered Glass
Diameter50/60mm/76mm
RatingIP66 IK10
Class Rating
Class I ( Class II optional)
SPDstandard 10KV /20KV is optional
CertificationsCE, ROHS,LM80,IP66 IK10
Dimming1-10V / DALI / DALI2 / Timer dimming
Control OptionsZigbee / Lora smart control
Color OptionsGray / Black
Warranty5 years limited warranty



Description

50w garden street lamp

garden street lamp, garden street light, post top led lights, led post top lights, post top led street lights

30w led post top light fixture

Video

50w garden street lamp

garden street lamp, garden street light, post top led lights, led post top lights, post top led street lights


Download

FAQ

Packing Details
Fixture Dimension1 type: 480X480 X521mm ; 2/3/4 type: 480X480 X240mm
Fixture Weight7.5 kg
Packing Dimension495 X 495 X170 mm
Packing Weight8.8 kg
