Tool-less 120w LED Garden Light

Tool-less 120w LED Garden Light

Key features

Tool-less 120w LED Garden Light

LED Garden Light, garden led light, garden light led, led garden light factories, solar led garden light


Die-cast aluminum housing with flat tempered glass.

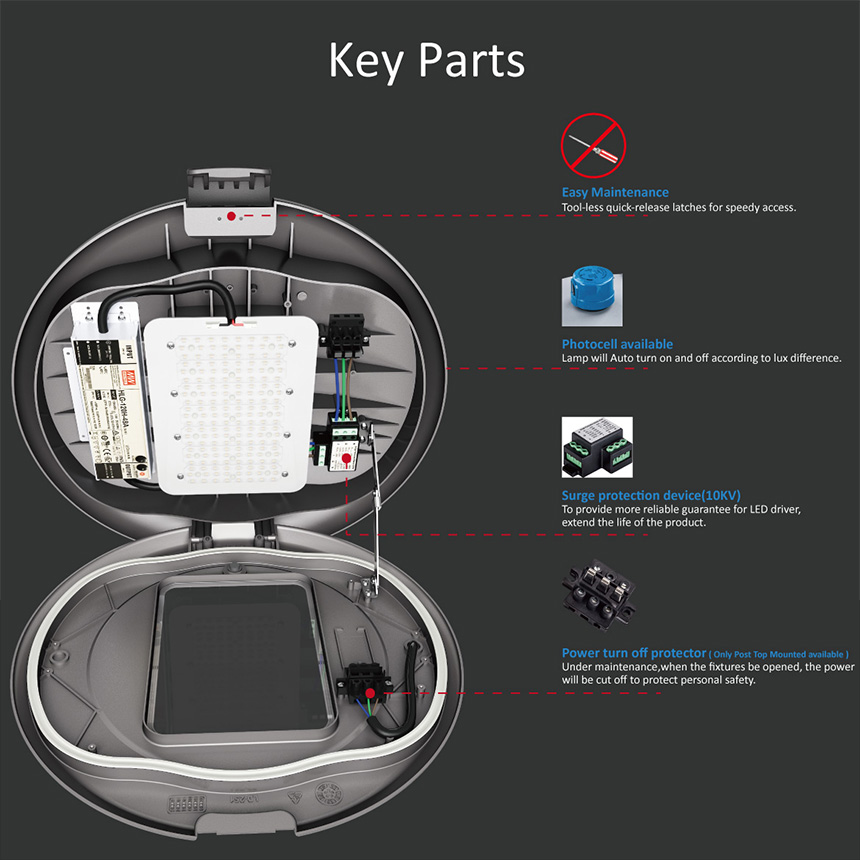

Toolless open for easy installation, replacement, and maintenance.

Power-off protection makes the power automatically off when the fixture is opened.

A smooth body would greatly diminish dust accumulation and bird droppings heap up.

Possible energy savings of more than 70%. 100,000 hours lifetime saving maintenance cost.

The LED engine, consisting of the LED light source and the power supply, can be easily replaced or upgraded. Designed for easy technology upgrade (Future Proof)

Electronic temperature monitoring prevents overheating of LEDs and power supply.

Provided with 10KV Surge Protection Devices.

Corrosion resistant polyester powder painted 100µm thickness.

Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.

Optimized roadway photometric distributions, ULOR = 0 (zero uplight)

Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

Supports Smart City application,7-Pin NEMA socket and standard outdoor dimming protocols.

e.g. photocell, motion sensor, DALI, 1-10V.

CE/ RoHS/ IK08/ IP66 / LM80/ LM79.

7 years limited warranty available.



Application:

Urban Roads, Urban Street, Parks and gardens, Residential areas

Datasheet

Tool-less 120w LED Garden Light

LED Garden Light, garden led light, garden light led, led garden light factories, solar led garden light


Specifications
ModelMK-SCX-120( X= 1,2,3,4)
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Norminal Wattage120W
LED Chip Quantity3030: 168pcs 5050: 84pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-145 lm /w
Lamp Rated Lumen output15000-17400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium;Type II Medium;Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years

Description

Tool-less 120w LED Garden Light

LED Garden Light, garden led light, garden light led, led garden light factories, solar led garden light

Tool-less 120w LED Garden Light

Video

Tool-less 120w LED Garden Light

LED Garden Light, garden led light, garden light led, led garden light factories, solar led garden light



Download

FAQ

Packing Details
Fixture Dimension1 type: 480X480 X521mm ; 2/3/4 type: 480X480 X240mm
Fixture Weight7.5 kg
Packing Dimension495 X 495 X170 mm
Packing Weight8.8 kg
