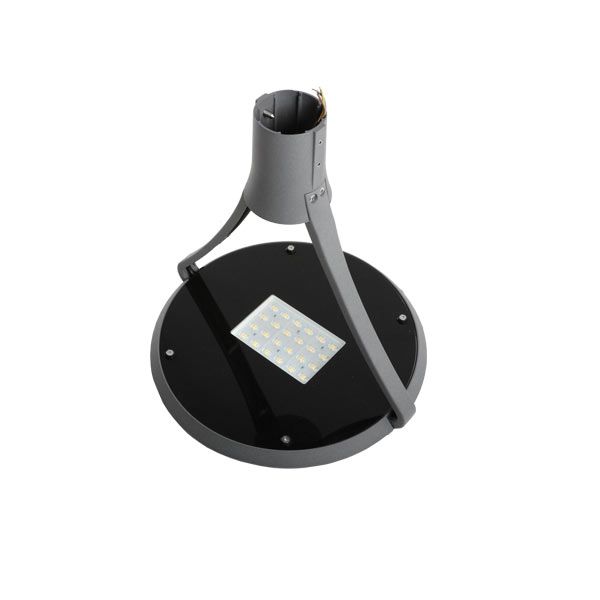

120w post top light fittings

120w post top light fittings

Key features

120w post top light fittings

post top light fittings, garden street lights for sale, led street light garden light road light, outdoor lamp post tops, decorative post top


The shell is made of full die-cast ADC12 aluminum, which can resist 1000 hours of neutral salt spray test

LED luminous efficiency is greater than 160LM/W, lamp luminous efficiency reaches 130LM/W

Toughened glass with impact resistance level up to IK09, high light transmission

The waterproof and dustproof rating of the lamp is IP66

The lamp can be installed with a light control switch so that the lamp is automatically turned on at night and automatically turned off in the morning

High-quality LEDs and LED drivers give the lamps stable performance and long life

The lamps can be installed with microwave induction to maximize energy saving

The lamp body is coated with anti-ultraviolet plastic powder and passed the anti-salt spray test

It is suitable for vertical pole installation, and the installation diameter is 50/60mm.

There are more than 6 kinds of optical lenses to choose from, and IES and LTD lamp files can be provided

The life span is up to 100,000 hours, and it can be used for 22 years according to the 12-hour working time per day

Compared with traditional lamps, the same illuminance can save 70% of electricity bills,

Power factor is greater than 0.95, total harmonic distortion (THD) <10%

3Pin, 5pin or 7pin NEMA bases can be installed, and the intelligent controller can be inserted to realize remote control.

The main product is Inventronics programmable 1-10V dimming power supply.

5-year warranty.


Application.

Roads, streets, parking lots, parks, gardens, branch roads, factories, schools, gardens, various residential quarters and courtyards.



Datasheet

120w post top light fittings

post top light fittings, garden street lights for sale, led street light garden light road light, outdoor lamp post tops, decorative post top

Data
ModelMK-GB-120
LED BrandPhilips Lumileds /Bridgelux/ CREE
Driver BrandMW, PHILIPS,DONE,OSRAM
Rating Power120W
Input Voltage100-277VAC/347V/480V
Driver Efficiency>90%
Power factor>0.90
luminaire Efficiency>130 lm /w
Luminaire lumens>15600 lm
CRI>70
CCT2700,3000K,4000K,5000K,5700K,6500K
Optic lensType II; Type III, Type V
Working Temperatures-40°C~50°C
Working Environment-40°C~+50°C, 10%~90%RH
THD< 15%
Lifetime> 100,000 hours
Wind resistanceForce 16
Body MaterialsDie-cast aluminum/Tempered Glass
Diameter of holder50/60mm/76mm
Protect RatingIP66 IK10
Class Rating
Class I ( Class II optional)
SPDstandard 10KV /20KV is optional
CertificationCE, ROHS,LM80,IP66 IK10
Dimming1-10V / DALI / DALI2 / Timer dimming
ControlsZigbee / Lora smart control
Body-colorGray / Black
Warranty5 years limited warranty



Description

120w post top light fittings

post top light fittings, garden street lights for sale, led street light garden light road light, outdoor lamp post tops, decorative post top

30w led post top light fixture

Video

120w post top light fittings

post top light fittings, garden street lights for sale, led street light garden light road light, outdoor lamp post tops, decorative post top

Download

FAQ

Packing Details
Fixture Dimension1 type: 480X480 X521mm ; 2/3/4 type: 480X480 X240mm
Fixture Weight7.5 kg
Packing Dimension495 X 495 X170 mm
Packing Weight8.8 kg
