This is a Ukraine road lighting project, using our SB toolless design full die-cast street lights, smooth back is not easy to accumulate dust, more than 10 kinds of optical lenses to choose from, high luminous efficiency LEDs and high-end brand LED drivers, adjustable angle bracket, support horizontal and vertical installation, the project is a pilot project, using horizontal installation, light pole height 10m, one post with double lights, 120W towards the motorized road, 60W towards non-motorized and sidewalks.
Project location: Ukraine
Project time: Aug.2018
Project details:
120W LED Street Light, Model: MK-SB2-120, Lumileds 3030 and Inventronics Driver, 2M, 4000K,13pcs
60W LED Street Light, Model: MK-SB2-60, Lumileds 3030 and Inventronics Driver, 1M, 4000K,11pcs
types of street lighting, street lighting design, Crompton led street light, street light fixture

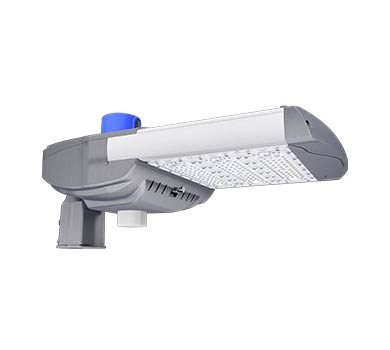

| Specifications | |
| Model | MK-SB3-120 |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell / Inventronics |
| Normal Wattage | 120W |
| Input Voltage | 100-240/277VAC/347V/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-150 lm /w |
| Lamp Rated Lumen output | 15600-18000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000 or 4000 or 5000 or 5700K |
| Photometric Type | Type II Medium; Type III Medium |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK08 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or NEMA or ZHAGA for Smart control |
| Color Options | Deep grey or Light grey |
| Warranty | 5 years |
Specification_SB_LED Street Light.pdf
|
|
|
| Main street lighting | types of street lighting | street lighting design |
|
|
|
| Crompton led street light | street light fixture | commercial street lights |
|
|
|
| 50-60w LED Street Light in Panama | 55W LED Street Light with Zigbee system in Slovakia | |
|
|
|
| 120w LED Street Light in Malaysia | 65w LED Street Light in DUBAI | SA LED Street Light in Croatia |
|
|
| 10 Important Facts About Led Street Light | Advantages and Prospects of LED Street Lights |
|
|
| LED street lamps VS high-pressure sodium lamps |
how much does led street lighting save?
Energy-efficient discovery and design (LED-based smart street lighting systems) can reduce street lighting costs by 35-70%. Cities around the world are now switching to LED lights to save money and energy while improving safety and visibility.
how much co2 does led street lighting cut?
Lighting accounts for nearly 5 percent of global carbon dioxide emissions. A global switch to energy-efficient light-emitting diode (LED) technology could save more than 1.4 billion tons of carbon dioxide and prevent the construction of 1,250 power stations.
what is smart street lighting?
An intelligent street lamp system consists of a set of street lamps that communicate with each other and provide lighting data to the local concentrator. The concentrator manages the relevant data and transfers it to a secure server, which captures the data and renders it in a Web browser dashboard.
