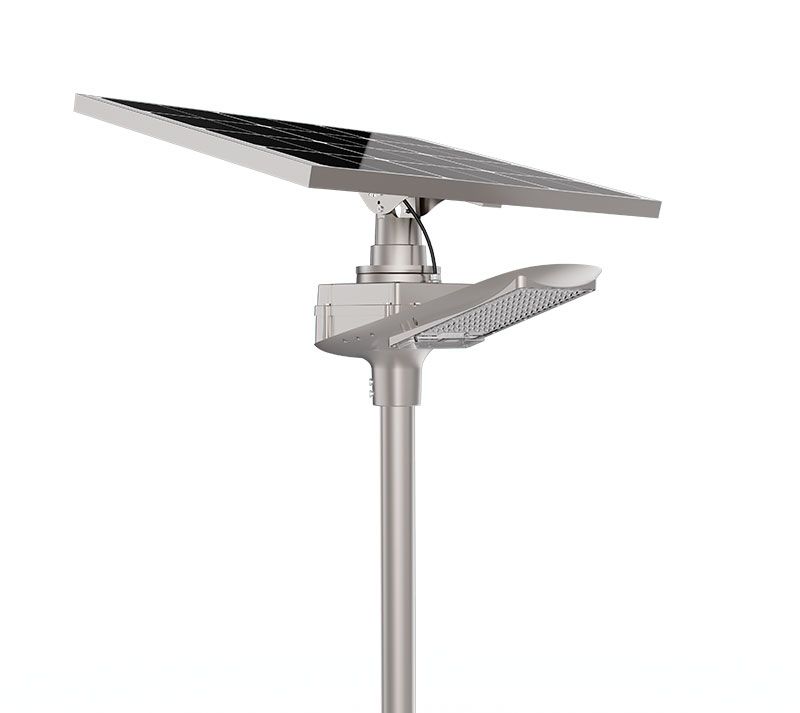

80w LED solar street light system adopts split design. The solar panel, battery, controller, and LED street light are separated. Customers need to assemble system when installation. As solar street light manufacturer, MK supports customized solar systems and provide free road lighting simulations designed to help clients get government projects.
80w Led Solar Street Lighting System
solar led street lighting, led solar street lighting, led solar street lighting system, solar led street lighting system, solar led street lighting suppliers
Wide power range: 20W~240W
Luminaire efficacy: Up to 170 lm /w
70% energy saving, short ROI period
Up to 100, 000hrs @ L70, low maintenance cost
World-class, approbated quality components (LEDs /Driver /etc.)
Tool-less opening of driver box, ease of maintenance
Support horizontal and vertical mounted, suitable for different light poles
High-pressure die-cast aluminum and Tempered glass cover
More than 10 types of light distributions for optional
Power-off protection makes the power automatically off when the fixture is opened.
A smooth body would greatly diminish dust accumulation and bird droppings heap up.
The level bubble makes it easy for the installer to adjust the position of the lamp.
1500 hours salt spray test report.
Applications
Local roads, Express roads, Town roads, Residential area roads, Pedestrian crossings, Parking areas
80w Led Solar Street Lighting System
Specifications | |
Model | MK-SE1-80 |
LED Brand | Lumileds 3030/5050 |
Driver Brand | Meanwell or Inventronics |
Norminal Wattage | 80W |
Input Voltage | 100-240/277VAC/DC12/24V |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | 140-155 lm/w |
Lamp Rated Lumen output | 11200-12400 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | 70( 80 optional) |
Color Temperature | 3000K or 4000K or 5000K or 5700K |
Optic (IESNA) | Type II Medium; Type III Medium |
Optimal Operating Temperature | 25° |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
Wind Index | Force 12 |
Body | Die-cast aluminum Housing and Tempered glass |
Cover | PC lens |
Pole Fitter Diameter | 60mm ( 50mm optional) |
Rating | IP66 IK10 |
Protection | Class I ( Class II optional) |
SPD | 10KV (20KV optional) |
Certification | CE,ROHS,ENEC,CB,LM80,LM79,IP66,IK10 |
Dimming Options | 1-10V or DALI or PWM or Timer |
Available on request | NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming |
Warranty | 5 years |
80w Led Solar Street Lighting System
Solar led street lighting system, solar led street lighting suppliers
Lead-acid was the common option of batteries for solar street lights earlier since they were reasonably affordable and available for several uses. They require larger solar panels for charging and the panels are required to generate 12 V to charge the batteries, consequently, their efficacy is not at its greatest during overcast and rainy days. Modern solar street lights consist of 3.7 or 3.2-volt lithium-ion or LiFePO4 batteries thus the solar panels do not need to provide a lot of electricity to charge these batteries. They are small, have a longer lifetime, and require practically any maintenance.
Solar panels are able to convert any available sunlight into energy to power the lighting system. Lithium-ion and LiFePO4 batteries with 3.7 or 3.2 volts are utilized in current solar street lights; hence, the panels do not need to produce a great deal of power to charge these batteries. Even on cloudy days, the batteries continue to charge at a slower pace, and the brightness of the light may vary depending on the charge.
Numerous advantages are linked with solar LED street lighting. Solar lighting is the most eco-friendly option for illuminating public and private places while reducing installation, maintenance, and operating expenses. Since solar street lights operate only on solar energy and do not need a connection to the electrical grid, they may be installed in an unlit location. Unlike typical street lights, solar street lights are unaffected by power interruptions, assuring nighttime safety and security.
