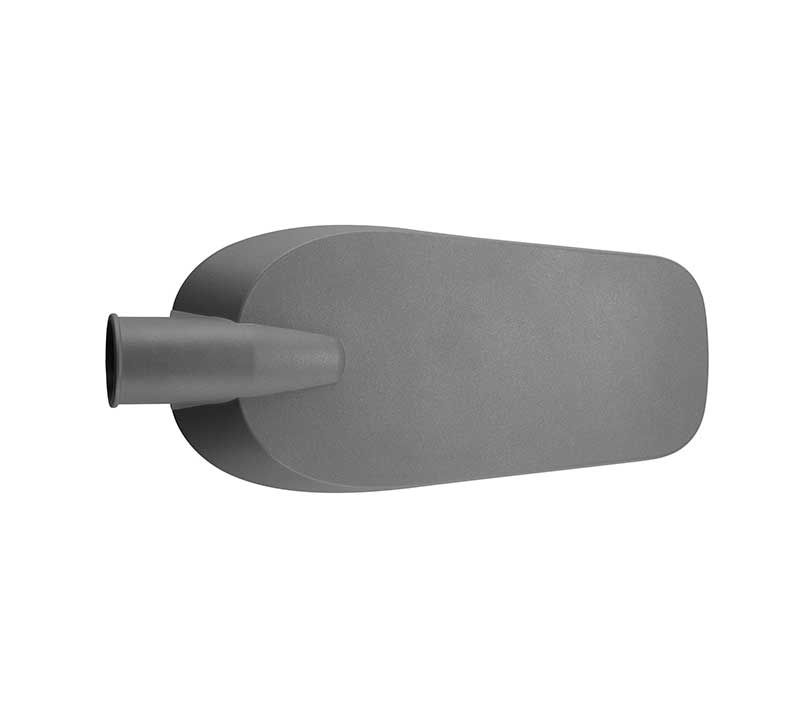

The 120W LED street light adopts high-efficiency Philips SMD LEDs, with high performance and competitive price. As a supplier of LED street lights in China, MKLIGHTS provides street lights with reasonable prices and superior performance, and also provides free road lighting design solutions, welcome to consult
120w SMD led street light with reasonable price in china
Smd led street light, 120w led street light, 120w led street light price, led street light price, led street light in china
Cost-effective and efficient lighting solution (DOB solution)
Maximized saving in energy and maintenance
Surge protection 4 to 5KV (+10Kv optional)
3 size to offer the most accurate solution
Wide range of color temperature
Wide range of operating temperature
Wide range of BEAM angles (optional)
Housing optimized for heat dissipation and reduced dust accumulation
IP66 tightness level
Applications
Local roads, Express roads, Town roads, Residential area roads, Pedestrian crossings, Parking areas
120w SMD led street light with reasonable price in china
SMD led street light, 120w led street light, 120w led street light price, led street light price, led street light in china
| Specifications | |
| Model | MK-SF3-120 |
| LED Brand | SANAN 2835 |
| Driver Brand | Integrated Driver |
| Norminal Wattage | 120W |
| Input Voltage | 180-265VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 100 lm/w |
| Lamp Rated Lumen output | 12000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000-6500K |
| Optic (IESNA) | Type II Medium |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C,10%~90%RH |
| Total Harmonic Distortion | < 15% |
| Lumen Maintenance | > 30000 hours |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm/50mm |
| Rating | IP66 IK09 |
| Protection | Class I |
| SPD | 5KV |
| Certification | CE,ROHS,LM80,LM79,IP66,IK09 |
| Warranty | 3 years |
smd led street light, 120w led street light, 120w led street light price, led street light price, led street light in china
smd led street light, 120w led street light, 120w led street light price, led street light price, led street light in china
SMD stands for Surface mounted diode, whereas COB and DOB stand for Chip on Board and Driver on Board, respectively. DOB is a technique that eliminates the need for a separate power source. Voltage rectification and stepping down are performed via printed circuits on the chip. DOB is gaining popularity as the globe searches for less expensive lighting options. DOB technology has an inherent difficulty with flickering. We do not sell any items using this technology.
SMD is a method that installs several tiny chips on a PCB. To power up each SMD, a separate power line is supplied to it. SMD are comparatively brighter as a chip but need a substantial increase in surface area to accommodate additional chips. Consequently, the luminance density is not even close to a COB. In an SMD configuration, each chip has its own connection; hence, the likelihood of individual chip failure in luminaires is increased. To power an SMD luminaire, a driver is necessary.
A COB chip is a highly dense chip composed of numerous chips adhered directly to an aluminum or silica substrate. The substrate has a significant influence on heat dissipation. COB chips need connection at just two locations, reducing the likelihood of failure. A much higher luminance density makes the light more appealing and often produces more attractive light. A driver is required to activate a COB light.
If the lighting application is well planned, the use of LEDs does not increase light pollution. Contrariwise, when well-designed LED street lights are used, it is possible to efficiently regulate dispersion and glare while having a significantly higher effect on minimizing high-angle brightness and light pollution.
