150w led street light fixtures with 10 years warranty

150w led street light fixtures with 10 years warranty

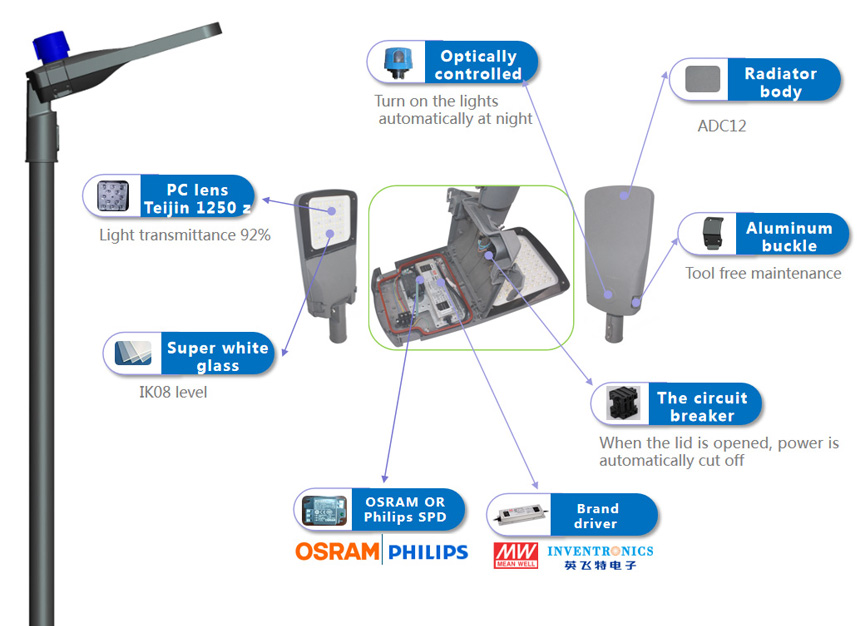

Key features

150w led street light fixtures with 10 years warranty

led street light fixtures, Street Light Fixtures, led street light fixtures for sale, led street light fixture, 150w led street light fixtures


Wide power range: 30W~240W.

Special circuit design, single LED‘s damage won't affect others' normal work.

Toolless open for easy installation, replacement, and maintenance.

Power-off protection makes the power automatically off when fixture is opened.

A smooth body would greatly diminish dust accumulation and bird droppings heap up.

Level bubble makes it easy for the installer to adjust the position of the lamp.

High Lumen output up to 150lm/ w with high-quality LED chips.

Vertical and horizontal installation are both available adjustable by ±15° in both directions.

Multiple lighting control options are available, e.g., DALI, 1-10V, photocell, motion sensor.

Designed to last at least 100, 000 hours at L70.

Multiple lighting distributions are available.

CE/ RoHS/ IK08 /IP66 /LM79

5 years limited warranty available.



Applications

Street, highway, park lot, roadway, path, etc.


Datasheet

150w led street light fixtures with 10 years warranty

led street light fixtures, Street Light Fixtures, led street light fixtures for sale, led street light fixture, 150w led street light fixtures

Specifications
ModelMK-SB4-150
LED BrandLUMILEDS®   LUXEON 3030 or 5050
Driver BrandMeanwell   / Inventronics
Norminal Wattage150W
Input Voltage100-240/277VAC/347V/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150   lm /w
Lamp Rated Lumen output19500-22500   lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80   optional)
Color Temperature3000K   or 4000K or 5000K or 5700K
Photometric TypeType   II Medium;Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion<   10%
Lumen Maintenance>   100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce   12
Body and Shell MaterialsDie-cast   aluminum; Tempered Glass
Pole Fitter Diameter60mm   ( 50mm optional)
RatingIP66   IK08
Protection Class   I ( Class II optional)
SPD10KV   (20KV optional)
CertificationCE,   ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V   or DALI or PWM or Timer
Control OptionsPhotocell   or Motion sensor or NEMA or ZHAGA for Smart control
Color OptionsDeep   grey or Light grey
Warranty5   years


Description

150w led street light fixtures with 10 years warranty

led street light fixtures, Street Light Fixtures, led street light fixtures for sale, led street light fixture, 150w led street light fixtures

150w led street light fixtures with 10 years warranty
