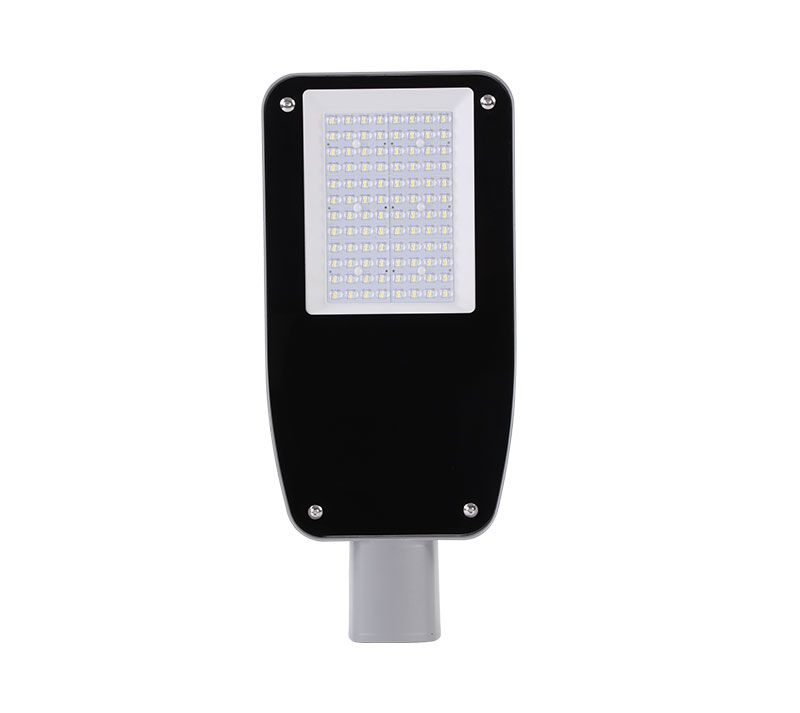

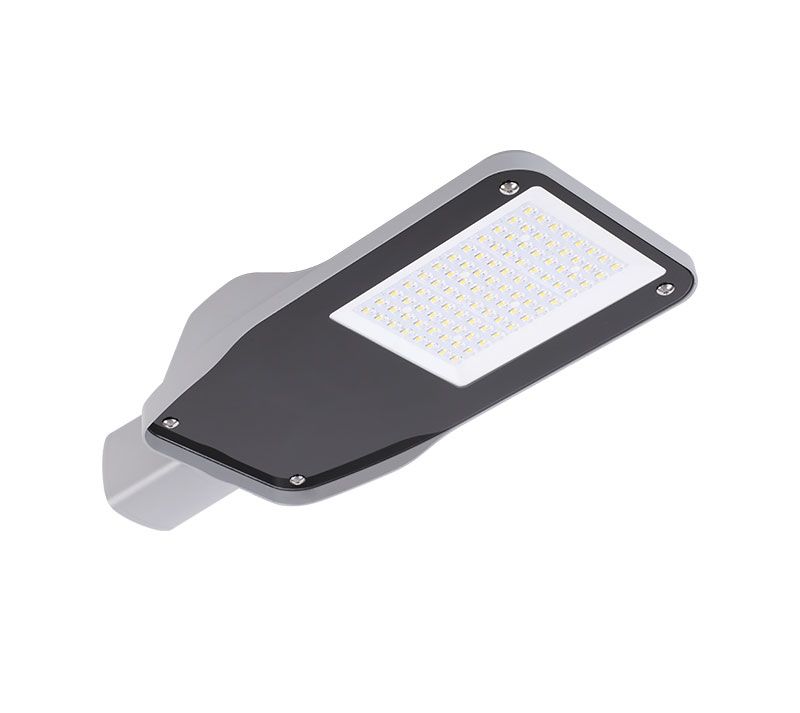

timer dimmable street light led 100w with OLC

timer dimmable street light led 100w with OLC

Key features

timer dimmable street light led 100w with OLC

street light led 100w, street light led, dimmable street light led, 100w led street light, 100 watt street light price

Features:

70% energy saving, short ROI period

Up to 100, 000hrs @ L70, low maintenance cost

Wide choice of optics for different applications

Smart design, low transportation costs

Smooth back of the fixture is designed to prevent dust accumulation

100,000 times switching cycle before failure

The LED street lighting luminaires shall provide a “Full Cut-off” distribution fully in accordance with the relevant IEC, BS, CIE and/or IESNA specification that specifies the most stringent requirements for light distribution

The construction of the luminaire shall be fully suitable to withstand extreme temperature and weather conditions

The luminaire body is painted with gray shades, and is die cast aluminum with very low copper-content and high corrosive resistance and is of minimum thickness 2.0 mm.

Luminaire efficacy: Up to 140 lm /w

Lifetime more than 100, 000 hours

Impact resistance: IK10

Type of protection: IP66

5 years warranty



Area Application:

Local roads, Express roads, Town roads, Residential area roads, Pedestrian crossings, parking areas


Datasheet

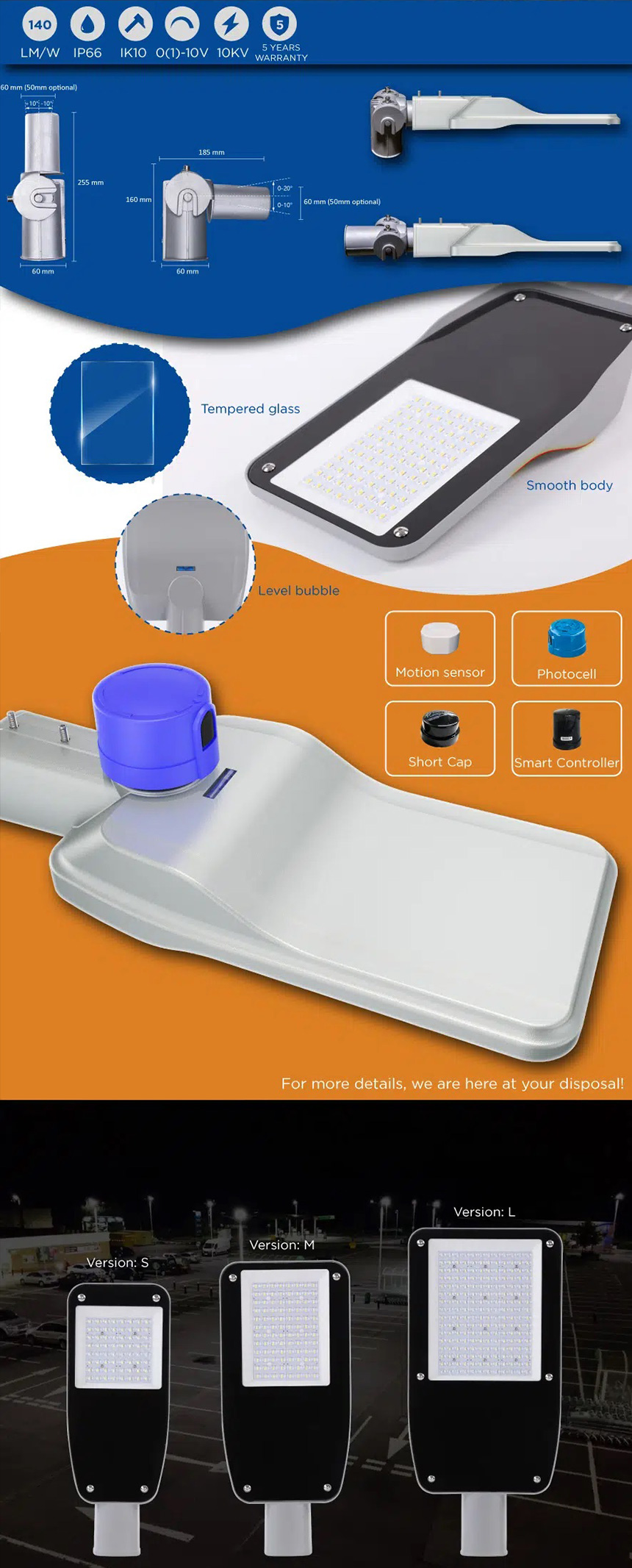

timer dimmable street light led 100w with OLC

street light led 100w, street light led, dimmable street light led, 100w led street light, 100 watt street light price

Specifications
Model NoMK-SI-100
LED Bridgelux   /Other brands on request
DriverDONE   /Other brands on request
Nominal Wattage100W
Working VoltageAC100-265V|50/60Hz
Power Factor (PF)0.9
Efficiency120-130   lm /w
Lumen12000-13000lm
CRIRa>70   (Default) / Ra>80
CCT3000K,   4000K, 5000K, 5700, 6500K
Optic lensType   II Medium; Type III Medium
Mounting TypeSide entry
Storage Temperatures-40°C~50°C
Working Environment-40°C   ~ +50°C, 10%~90%RH
THD<15%
Lifetime>100000hrs
MaterialsHigh-pressure die-cast aluminum, Tempered glass, UV-resistant Polycarbonate
Holder60mm
RatingIP66   IK10
Protection Class   Ⅰ
Surge Protection Device10KV   (20KV optional)
CertificationsCE,   RoHS, LM79, LM80, TM-21, IP66, IK10
DimmingNon-dimming   (Default) /1-10v(available on request)
Available on requestNEMA   socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC,   OLC, Solar Compatible, 1-10V/DALI Dimming
Body colorLight   Grey (available on request)
Warranty5   years


Description

timer dimmable street light led 100w with OLC

street light led 100w, street light led, dimmable street light led, 100w led street light, 100 watt street light price

timer dimmable street light led 100w with OLC
