30W Street Lighting with competitive price

30W Street Lighting with the best price from the manufacturer, As a factory of LED street lighting, MKLIGHTS has rich experience in the manufacture and lighting design of led street lighting, a variety of functions can be achieved, such as NTC, OLC, 1-10V/DALI dimming, timer dimming, NEMA or ZHAGA socket with Zigbee or Lora smart controller.

Inquire Now Next Product

Key Features Datasheet Description Video Download FAQ

Key features

30W Street Lighting with competitive price

Street Lighting, 30W Street Lighting, led street lighting, city street lighting, street lighting led

Cost-effective and efficient lighting solution (DOB solution)

Maximized saving in energy and maintenance

Surge protection 4 to 5KV (+10Kv optional)

3 size to offer the most accurate solution

Wide range of color temperature

Wide range of operating temperature

Wide range of BEAM angles (optional)

Housing optimized for heat dissipation and reduced dust accumulation

IP 66 tightness level

Applications

Local roads, Express roads, Town roads, Residential area roads, Pedestrian crossings, Parking areas

Datasheet

Street Lighting, 30W Street Lighting, led street lighting, city street lighting, street lighting led

Specifications
Model	MK-SF1-30
LED Brand	SANAN 2835
Driver Brand	Integrated Driver
Norminal Wattage	30W
Input Voltage	180-265VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	100 lm/w
Lamp Rated Lumen output	3000 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70( 80 optional）
Color Temperature	3000-6500K
Optic (IESNA)	Type II Medium
Optimal Operating Temperature	25°
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C,10%~90%RH
Total Harmonic Distortion	< 15%
Lumen Maintenance	> 30000 hours
Wind Index	Force 12
Body	Die-cast Aluminum Housing
Cover	PC lens
Pole Fitter Diameter	60mm/50mm
Rating	IP66 IK09
Protection	Class I
SPD	5KV
Certification	CE,ROHS,LM80,LM79,IP66,IK09
Warranty	3 years

Description

Street Lighting, 30W Street Lighting, led street lighting, city street lighting, street lighting led

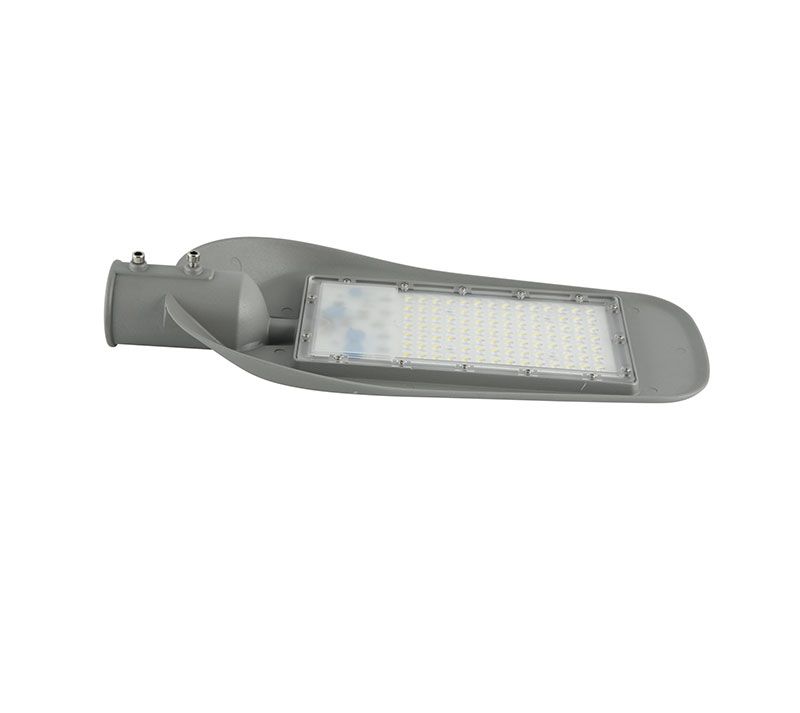

SF 30W LED Street Light

Video

Street Lighting, 30W Street Lighting, led street lighting, city street lighting, street lighting led

Download

Catalog IES Files

FAQ

What is DOB LED?

A DOB LED light is an LED lighting system (either an LED bulb or an LED luminaire) that contains a light engine with an integrated onboard driver. DOB is short for "driver-on-board".

What is the distance between the street light poles?

The distance between two light poles should be around 2.5–3 times the pole's height. There should be shorter light poles built at closer spacing.

What are the Advantages of LED Street Lights?

Longest lifespan compared with other street light types (50,000 to 100,000 hours)

Least heat emission

Directional light (over 180 degrees, unlike other lights with 360 degrees light direction)

Easy warm-up, and switching on and off

Doesn't emit ultraviolet rays unlike HPS

Low maintenance costs

Low operation cost

Used for smart solar street lights, where the brightness can be automatically adjusted
