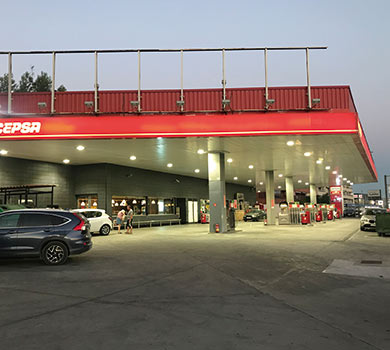

This is a gas station lighting project done in 2020 in Uruguay, using RB series recessed LED canopy lights, modular design, easy maintenance, with ATEX explosion-proof certification, can be safely used in flammable and explosive places such as gas stations, high light efficiency 150w The LED canopy light replaces the original 400W metal halide light, and the energy-saving rate is as high as 60%. The owner of the gas station is very satisfied with the project results.
Project Name: 150w gas station lights in Uruguay
Project Time: 2020
Country: Uruguay
Details:
MK-RB3-150, 5700K, 150W,100- 240V/277V AC; Philips Chip; Meanwell Driver; Silver Shell; 90° ---60 PCS
gas station lighting, gas station lights, 150w led canopy light, led gas station lighting, petrol station canopy lights, led canopy lights for petrol station, petrol station lighting, led canopy light
| Specifications | |
| Model | MK-RB3-150 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Normal Wattage | 150W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 145-170 lm/w |
| Lamp Rated Lumen output | 21750-25500 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000, 4000, 5000 or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | <10% |
| Lumen Maintenance | >100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Specification_RB_LED Canopy gas station Light.pdf
Installation Manual_CanopyLight_RB.pdf
|
|
|
| recessed canopy lighting | led gas station canopy lights | canopy lights for petrol station |
|
|
|
| Surface Mount Canopy Lights | led canopy light fixtures | gas station lights |
|
|
| How to calculate illumination uniformity? | Does LED street lamps better than HPS lamps? |
What are Canopy lights?
Canopy lights are usually installed outdoors under overhangs. These lamps illuminate the area below them. They can be equipped with clear lenses that focus light or frosted lenses that spread light, reducing glare and illuminating a wider area. They are durable and often weatherproof and tamper-proof.
Where are Canopy lights used?
Overhead lights can be found in many applications. They can be installed in gas stations, parking lots, bus stops, auto shops and other locations that require a strong light source and are likely to be exposed to harsh conditions. Smaller Canopy lights can be used in residential Settings, including overhead, deck, porch, and carport.
What is the gas station light?
The main type of LED lighting often used in gas stations is recessed lighting. LED gas station canopy lights are usually installed on the canopy that covers the gas pump.
