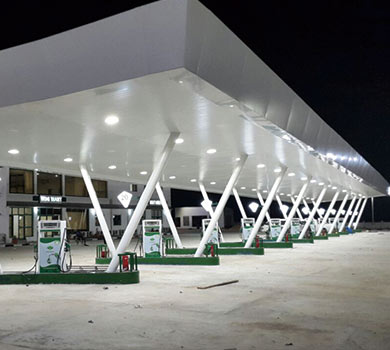

The 80w ATEX certified recessed LED canopy light is used as an LED gas station light for the gas station in Malaysia. The owner of the petrol station originally planned to use a 250W metal halide light. After the design of our DIALUX lighting simulation scheme, the 80W LED gas station light was selected and installed. The final effect is very good. 80W replaces the traditional metal halide lamp with 250W, and the energy-saving rate is over 70%. The owner is very satisfied with this project and plans to choose our 80W gas station lamp in any of the next 8 gas stations.
80w led gas station light in Malaysia
Project location: Malaysia
Project time: 2016
Project details:

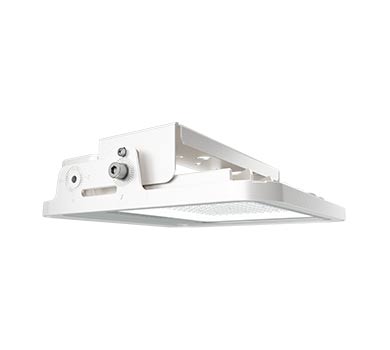

80W LED Canopy Light, Model: MK-RB2-80,4000k,110degrees, 36pcs
led gas station light, led canopy light for gas station, gas station light fixtures, gas canopy led lights, gas station canopy light, gas station canopy lighting
| Specifications | |
| Model | MK-RB2-80 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 80W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 145-170 lm/w |
| Lamp Rated Lumen output | 11600-13600 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000, 4000, 5000, or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | <10% |
| Lumen Maintenance | >100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Datasheet:
Specification_RB_LED Canopy gas station Light.pdf
Installation manual: Installation Manual_CanopyLight_RB.pdf
|
|
|
| led gas station light | led canopy light for gas station | gas station light fixtures |
|
|
|
| gas canopy led lights | gas station canopy light | gas station canopy lighting |
|
|
| LED lamps VS HPS lamps | How to calculate illumination uniformity? |
a. Do gas station canopy lights need ATEX certification?
The answer is YES, gas stations are inflammable and explosive places, and any static electricity or sparks may cause major disasters, so the lamps used in gas stations must have explosion-proof certification.
b. Are your petrol station canopy lights ATEX certified?
We have three types of petrol station lights, of which RB and RC petrol station lights have explosion-proof certification, and the certification standards are EN 60079-0:2012/A11:2013, EN 60079-7:2015,
EN 60079-11:2012, EN 60079-31:2014.
