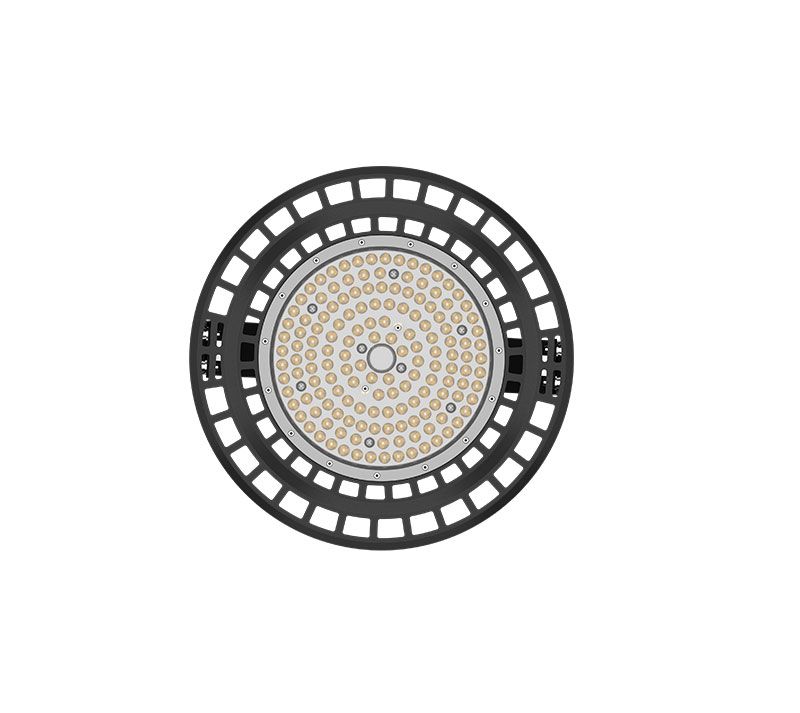

200w Led High Bay Fixture

200w Led High Bay Fixture with high efficiency which is best for industrial lighting, rings hook mounted or bracket mounted for optional, UFO design, simple and practical, suit for warehouse, workshop, shopping malls, exhibition halls and etc.

Key features

200w Led High Bay Fixture | High Bay Lighting | Supplier

led high bay lighting, high bay led lighting prices, warehouse high bay lighting, high bay lighting fixtures, high bay lighting led


Wide power range: 100W~200W

Special circuit design, single LED damage won't affect others' normal work

High Lumen output up to 155lm/w with high-quality LED chips

Variety of applications with different mounting Accessories

Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

Designed to last at least 100,000 hours at L70

Multiple lighting distributions are available

CE/ RoHS/ IK08 /IP65

5 years limited warranty available.



Applications

Warehouse, factory, rink, area and etc.

Datasheet

200w Led High Bay Fixture | High Bay Lighting | Supplier

led high bay lighting, high bay led lighting prices, warehouse high bay lighting, high bay lighting fixtures, high bay lighting led


Specifications
ModelMK-BC-200
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HBG series
Normal Wattage200W
LED  Quantity3030: 304pcs 5050: 152pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-155lm/w
Lamp Rated Lumen output28000-31000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K,  4000K, 5000K or 5700K
Photometric Type60,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,  10%~90%RH
Total Harmonic Distortion<10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast  Aluminum Housing
Cover110°-Tempered  glass;60°-PC lens
RatingIP65   IK08
Protection Class  I
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI  or PWM or Timer
Control OptionsMotion  sensor or Smart control
Color OptionsBlack
Warranty5  years


Description

200w Led High Bay Fixture | High Bay Lighting | Supplier

led high bay lighting, high bay led lighting prices, warehouse high bay lighting, high bay lighting fixtures, high bay lighting led

200w led high bay lighting

Video

200w Led High Bay Fixture | High Bay Lighting | Supplier

led high bay lighting, high bay led lighting prices, warehouse high bay lighting, high bay lighting fixtures, high bay lighting led

Download

FAQ

What are UFO LED High Bay Lights?  Where to Use LED Round UFO High Bay Lights?

UFO LED high bay lights are LED lights that are shaped like UFOs and are usually used for commercial or industrial lighting, such as warehouses, factories, garages, shopping malls, etc. They can light enormous regions.

In general, the use of UFO LED high bay lights depends on the height of ceilings, installation angle, luminous flux, the power of light fixtures, etc. If you put a 100W UFO LED high bay light in a 10 feet high room, it will seem overbearing due to the tremendous brightness. On the other hand, if you place a standard bedroom LED light in a warehouse over 15 feet or even 40 feet high, you would not obtain your desired brightness.

Why Choose LED UFO High Bay Lights?

With the advancement of high bay light technology, UFO LED high bay lights have become the finest option for industrial and commercial illumination on a big scale. In comparison to conventional illumination such as xenon lights and metal-halide lamps, they provide the following advantages:

Low lighting costs and high efficiency.

A 100W UFO LED high bay light might replace a 300W HID bulb, resulting in a 66% reduction in power costs. A 150W UFO LED high bay light might replace a 450W HID bulb, resulting in a 66% reduction in power costs. A 240W UFO LED high bay light might replace a 750W HID bulb, resulting in a 68% reduction in power costs.

The light is soothing and uniform without strobing, making it safe for the eyes.

With an IP65 rating for water and dust resistance and an anti-surge protection mechanism, they are suitable for usage in wet areas and other hostile conditions.

The temperature of the lights stays low due to the minimal heat emission of LEDs and the great heat dissipation efficiency of the aluminum casing. The illumination is softer and less prone to ignite due to overheating.

The outside shells of the lights were treated using a paint-baking process, resulting in an extended lifespan. They are resistant to oxidation, salt fog, corrosion, and rust, so there is no need to replace them regularly.

UFO high bay LED lights are environmentally safe, lead- and mercury-free, and green. They do not contain any harmful substances and are safe for the environment.
