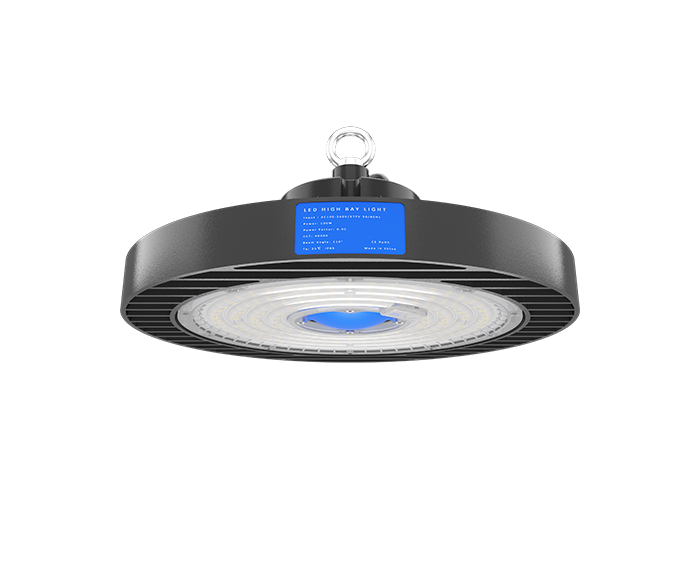

190lm/w 100w ufo high bay light

100W ufo high bay light adopts UFO design, equipped with high-efficiency LED and LED driver, the whole light efficiency reaches 190LM/W, supports different installation methods of hanging rings and brackets, can replace 400W MH lights, the energy-saving rate is greater than 75%, and it is 24 hours Best choice for workshop.

Key features

ufo high bay light, led high bay light

The energy-efficient design delivers up to 190 lm /w

70% energy saving, short ROI period

Durability, suitable for dry and wet applications

Multiple lighting distributions are available

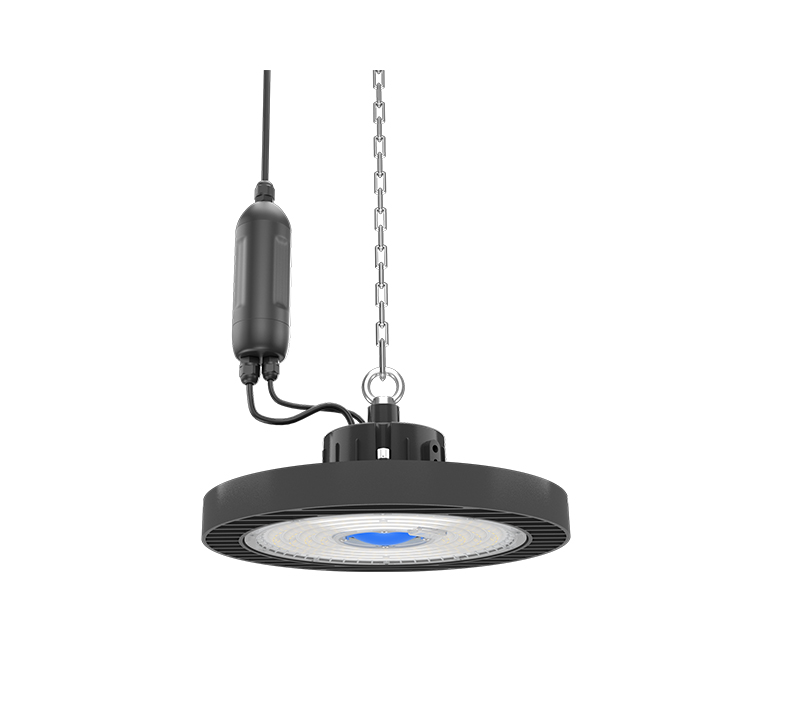

Versatile in mounting with wall-mounted, loop hanging, steel chain hanging

Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

RoHS compliant, environmentally friendly, no mercury or lead, 100% recyclable

5 years warranty



Applications

Warehouse, factory, rink, area and etc.

Datasheet

led ufo lights

Specifications
ModelMK-BD-100S
LED BrandLumileds LUXEON 3030/2835
Driver BrandMOSO series
Normal Wattage100W
LED  Quantity3030: 126pcs 2835: 387pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-190 lm/w
Lamp Rated Lumen output14000-19000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000, 4000, 5000 or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 50,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast aluminum Housing
CoverPC lens
RatingIP65 IK08
Protection Class  I
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsBlack
Warranty5 years


Description

Download

FAQ

  1. What is a UFO LED high bay light?

    The solution is already in question. A UFO LED high bay light is a disc-shaped LED luminaire system with a flat integrated aluminum housing and optics designed to improve light distribution over a given area without the need for cumbersome reflectors. LEDs are directional in nature and need optics, which are often reflectors for traditional LED high bay lights, to satisfy the light output patterns required for many applications. Conventional fixtures, on the other hand, often imitate classic metal-halide (MH) lights in luminaire form and are constructed with massive and heavy heat sinks. The whole fixture not only seems old and awkward, but it also does not fit in with the modern architectural design. Furthermore, due to the enormous number of thin aluminum reflectors, they must be packaged individually and transported with additional care, which increases the shipping cost. UFO LED high bay lights are smaller and more efficient than typical LED lighting. They have a nicer appearance, endure longer, and are simpler to move and install.


  2. How high should high bay lights be?

    The easiest approach to evaluate high bay vs. low bay lighting is to measure the ceiling height. Low bay fixtures are only suitable for ceilings between 12 and 20 feet high. High bay light fixtures can illuminate ceilings ranging in height from 20 to 45 feet.


  3. What Is the Difference Between Low and High Bay Lights?

    High Bay / Low Bay is a lighting phrase that refers to the kind of bay lights that are required for a certain ceiling height.

    High Bay Lights are often used in big areas with a ceiling height higher than 20 feet. Low Bay Fixtures, on the other hand, are often employed in big rooms with a ceiling height of between 12 and 20 feet.

    Bay lights that are 150W or more are sometimes referred to as High Bay lights since they have a beam angle of 90 degrees or less. Low Bay lights generally range in power from 60 to 100 watts and have a beam angle of 120 degrees.

    High Bay fixtures are more prevalent in warehouses, factories, and hangars, while Low Bay lighting is more prevalent in retail stores, grocery stores, and workshops.
