Key features

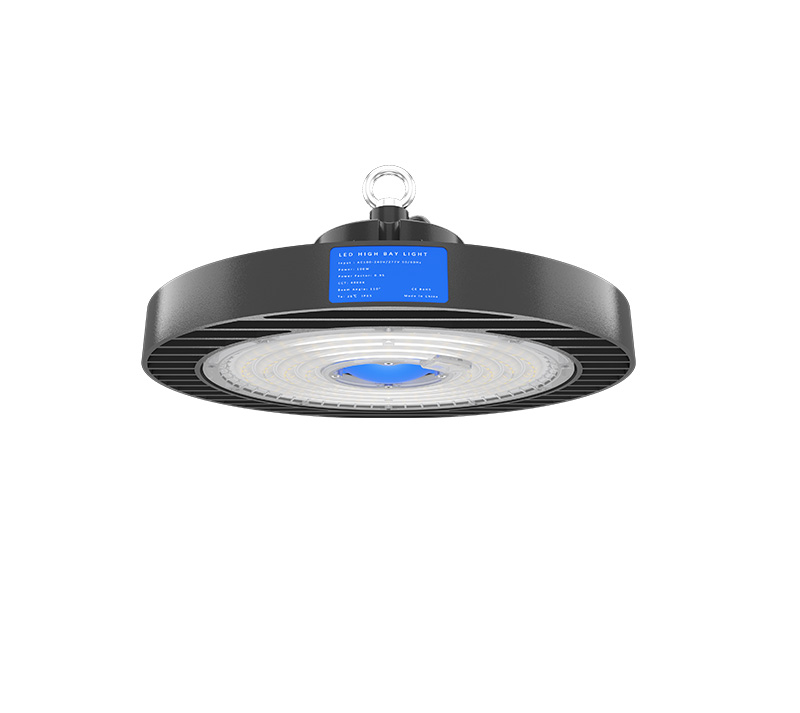

ufo high bay light

Energy efficient design delivers up to 190 lm /w

70% energy saving, short ROI period

Durability, suitable for dry and wet applications

Multiple lighting distributions available

Versatile in mounting with wall mounted, loop hanging, steel chain hanging

Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

RoHS compliant, environmentally friendly, no mercury or lead, 100% recyclable

5 years warranty



Applications

Warehouse, factory, rink, area and etc.

Datasheet

Specifications
ModelMK-BD-100S
LED BrandLumileds  LUXEON 3030/2835
Driver BrandMOSO series
Norminal Wattage100W
LED  Quantity3030: 172pcs 2835: 602pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-190lm/w
Lamp Rated Lumen output21000-28500lm (Lumen tolerance +/- 5%)
Color Rendering Index70  (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion<10%
Lumen Maintenance>50,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast aluminum Housing
CoverPC lens
RatingIP65 IK08
Protection Class  I
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsBlack
Warranty5 years


Description

None

Video

Download

None

FAQ

Packing  Details
Fixture Dimension286 x286 x147 mm
Fixture Weight2.6 kg
Packing Dimension340 x340 x150 mm
Packing Weight3.2 kg
