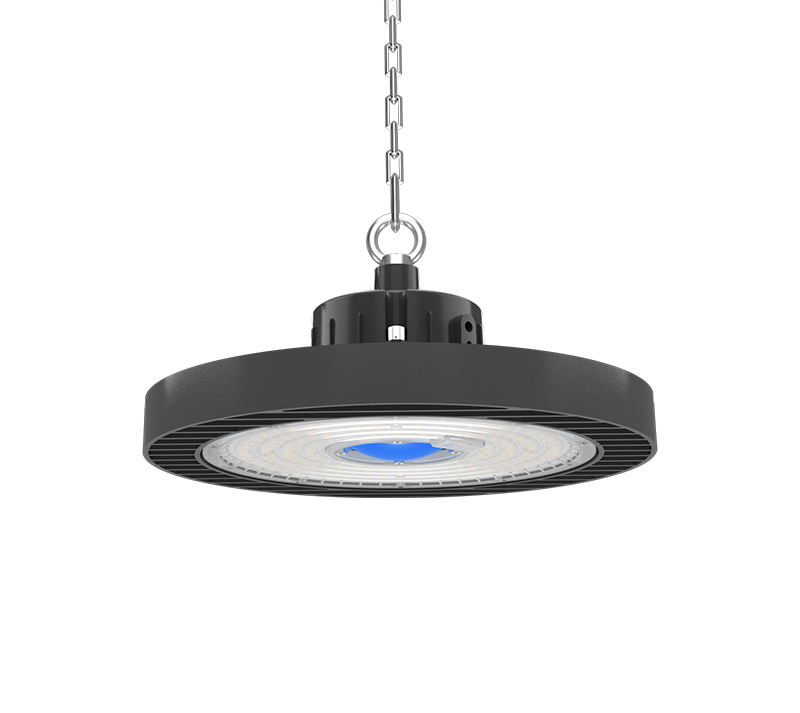

Philips LED High Bay Light

LED High Bay Light adopts Philips LED chips and LED driver, the luminous efficiency is up to 190LM/W, the UFO shape design, energy-saving rate is up to 80%, and it can be matched with plug-in microwave or infrared to realize intelligent control, as the manufacturer of LED high bay light, MKLIGHTS can offer free Dialux lighting design.

Key features

Philips LED High Bay Light, LED High Bay Light, LED Industrial Lighting, Philips High Bay Light, Philips LED Bay Light


The energy-efficient design delivers up to 190 lm /w

70% energy saving, short ROI period

Durability, suitable for dry and wet applications

Multiple lighting distributions are available

Multiple beam angles are available

Versatile in mounting with wall-mounted, loop hanging, steel chain hanging

Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

RoHS compliant, environmentally friendly, no mercury or lead, 100% recyclable

5 years warranty



Applications

Warehouse, factory, rink, area and etc.

Datasheet

Philips LED High Bay Light, LED High Bay Light, LED Industrial Lighting, Philips High Bay Light, Philips LED Bay Light


Specifications
ModelMK-BD-200M
LED BrandLumileds LUXEON 3030/2835
Driver BrandMOSO series
Norminal Wattage100W
LED  Quantity3030: 126pcs 2835: 387pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-190 lm/w
Lamp Rated Lumen output14000-19000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000, 4000, 5000 or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 50,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP65 IK08
Protection Class  I
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsBlack
Warranty5 years



Description

Philips LED High Bay Light, LED High Bay LightLED Industrial LightingPhilips High Bay Light, Philips LED Bay Light

Philips LED High Bay Light

Video

Philips LED High Bay Light, LED High Bay LightLED Industrial Lighting, Philips High Bay Light, Philips LED Bay Light

Download

FAQ

What are the many types of high bay lights, and why are they round?

Who knew that lighting a new room would be so difficult? Surely we cannot use the same lighting solutions for both residential and business spaces?

While selecting lighting solutions, one must consider a variety of parameters. The size of the room, the height of the ceilings, the desired qualities of the light, and the kind of lamp are only a few considerations. Every kind of area has its own specifications.

The overall size of the area to be lighted is among the most critical factors to consider. Here, there are substantial distinctions between traditional areas and vast, high-ceilinged spaces. These bigger buildings, with ceiling heights ranging from 20 to 45 feet, are often seen in industrial settings such as factories, shop floors, and warehouses, as well as other high-capacity venues such as gymnasiums and large commercial organizations. Conventional lighting options, such as standard bulbs, recessed lighting, and lamps, simply cannot sufficiently illuminate these regions.

In addition to light intensity, essential criteria for large-scale lighting systems include illumination uniformity and color accuracy. Workers in industrial facilities often participate in high-risk jobs involving heavy equipment, necessitating constant and potent lighting to assure their safety and productivity.

High Bay lights are the most prevalent and practical answer for these lighting requirements. High Bay lights are very potent and particularly intended to satisfy the needs of expansive regions. For many years, Metal Halide (MH) lamps and High-Pressure Sodium (HPS) lamps have been the most popular options. These lights use a significantly different technology than standard incandescent or fluorescent lighting. As a result of this technology, the most efficient form for MH and HPS lights is round or round. This form increases the quantity of light cast in a given direction and improves the lamp's lifetime.

As a consequence of advancements in lighting technology, more contemporary varieties of lights are now appropriate for High Bay applications. Industrial LED lights often exceed MH and HPS lamps in the majority of categories, including maintenance expense, energy efficiency, and illumination quality. They have the extra benefit of being adaptable to a variety of forms, as opposed to the circular shape that MH and HPS lamps are limited to. The most popular extra shapes used with Industrial LED lights are rectangles or strips, in which the lights are stacked linearly to maximize coverage and uniformity.

Modern LED technology enables us to produce and install non-circular High Bay lights. The linear and grid-mounted shapes and layouts are two of the most popular new forms and designs. However, the typical round form remains the preferred choice for High Bay lighting in regions where it is necessary. This is mostly due to consistency and continuity.

Numerous old buildings are outfitted with the usual round lights, and there is often no motivation to remodel the lighting arrangement. Because the time and money necessary to modify the form of the lights may be better spent elsewhere, it makes the most economical sense to just go with the standard round design.

In addition, circular High Bay lights already benefit from a robust ecology consisting of spare parts, standard fittings, and predictable labor costs. Additionally, many businesses have long-term maintenance contracts that are tailored to their current lighting system. Moving to a new light form would need significant adjustments at numerous levels, and there is often not enough benefit to justify such a change.

High Bay lights have a long history and are a vital element of the present environment. Technology continues to evolve and introduce new improvements, but the familiar round form will remain in factories and industrial settings across the globe.
