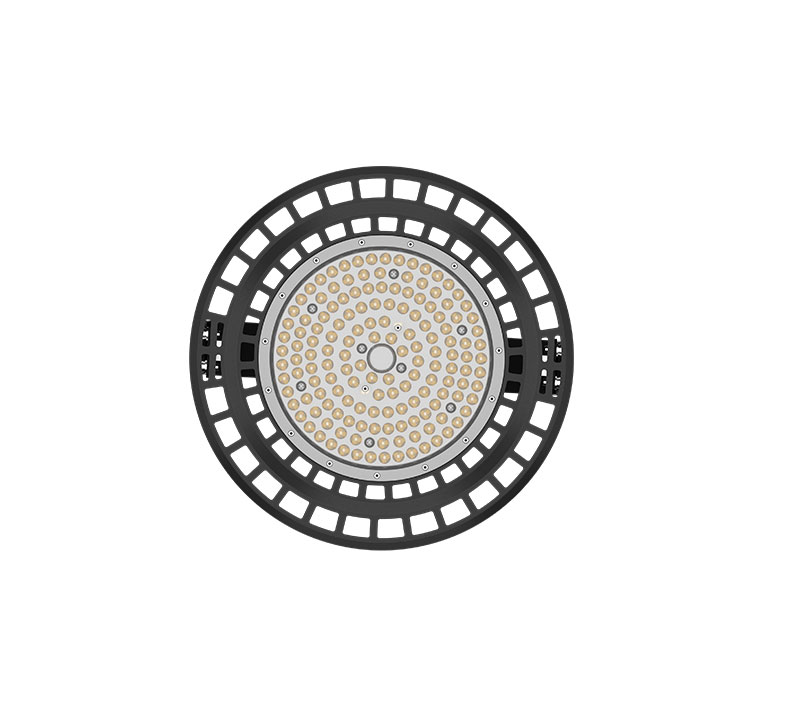

100w UFO LED High Bay Light

100W ufo high bay light use Philips LEDs and Meanwell Driver, high efficacy up to 150lm/w which can replace 250w traditional Metal halide lamp high bay light, much higher CRI, better uniformity, smarter with motion sensor or PIR sensor.

Key features

LED high bay

Wide power range: 100W~200W

Special circuit design, single LED damage won't affect others' normal work

High Lumen output up to 155lm/w with high quality LED chips

Variety applications with different mounting Accessories

Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

Designed to last at least 100,000 hours at L70

Multiple lighting distributions are available

CE/ RoHS/ IK08 /IP65

5 years limited warranty available.



Applications

Warehouse, factory, rink, area and etc.

Datasheet

High bay led light

Specifications
ModelMK-BC-100
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HBG series
Normal Wattage100W
LED  Quantity3030: 152pcs 5050: 78pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-155 lm/w
Lamp Rated Lumen output14000-15500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000,  4000, 5000, or 5700K
Photometric Type60,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion<10%
Lumen Maintenance>100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast  Aluminum Housing
Cover110°-Tempered  glass;60°-PC lens
RatingIP65  IK08
Protection Class  I
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI  or PWM or Timer
Control OptionsMotion  sensor or Smart control
Color OptionsBlack
Warranty5  years



Description

Download

FAQ

  1.  What is a UFO LED high bay light?

    In the query, the solution is already present. A UFO LED high bay light is a disc-shaped LED luminaire system with a flat integrated aluminum housing and optics designed to improve light distribution over a given area without the use of cumbersome reflectors. LEDs are directional by nature and require optics, which in the case of traditional LED high bay lights are usually reflectors, to provide the light output patterns required for many applications. Conventional fixtures, on the other hand, are sometimes built to seem like traditional metal-halide (MH) fixtures, with massive and heavy heat sinks. Not only does the complete fixture appear archaic and awkward, but it also does not blend in with modern architectural style. Furthermore, large quantities of thin aluminum reflectors must be packed separately and transported with great caution, increasing the delivery cost. Traditional LED high bay lights are more compact and inefficient than UFO LED high bay lights. They have a nicer appearance, last longer, and are less difficult to carry and install.


  2. How to Calculate the Numbers of UFO LED High Bay Lights I Need?

    Normally, you must choose lights with the appropriate power based on the scene's desired illumination and the height of the suspension. The intended illumination varies depending on the scenario, as do the relevant factors required. Before purchasing a UFO LED high bay light, it is advised that you review the IES files linked and perform the calculations using professional lighting software such as DIALux, AGI32, and others. When calculating the number of lights, you must first enter some fundamental information, such as the room's dimensions, length, width, and height, as well as the required illuminance. After you've entered the IES files into the software, you'll be able to plan the lighting layout you want. You may also see the light's effect after it's been installed; it's quick and accurate.


  3. What are the types of high bay lights?

    For high bay LED lights, there are a variety of fixtures to choose from. Architectural high bays, high bay shop lights, and grid-mount high bays are examples of these, all of which provide varied light quality and coverage types. Different light quality and coverage styles are available with each type of high bay lighting fixture:

    Round (UFO) - Simple to install and maintain, with a powerful, controlled beam angle.

    Linear - Provides enough light for places with ceilings ranging from 20 to 45 feet tall.

    Vapor Tight - These UL-listed vapor barriers keep moisture and dust out. LED high bay lighting that is Wet Location compatible gives clear, uniform illumination of what is below them with minimal glare. Different types of reflectors can achieve different lighting effects. also. Prismatic reflectors offer a more diffused illumination that is ideal for illuminating shelves and other raised objects in space, whereas aluminum reflectors make light from the lights flow directly down to the floor.
