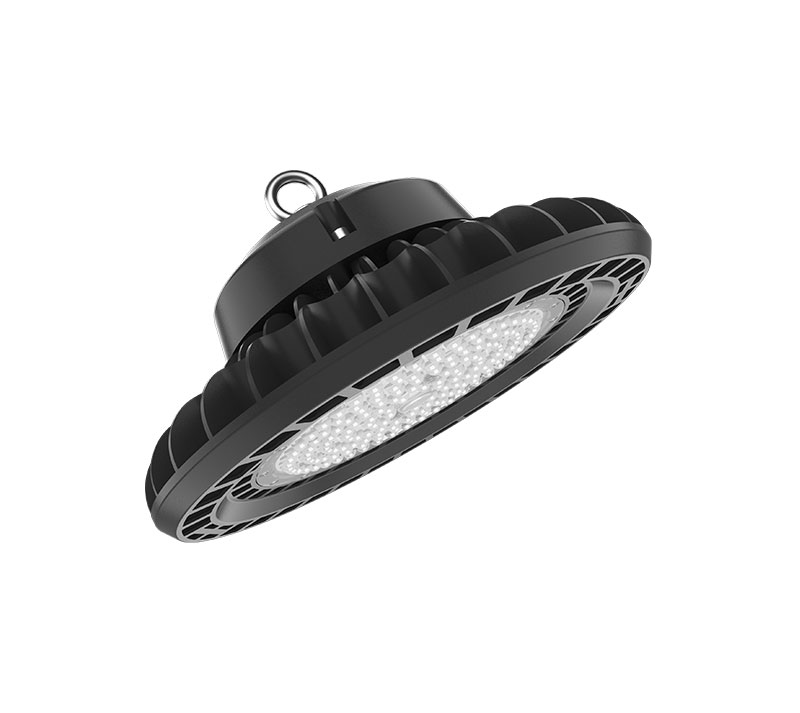

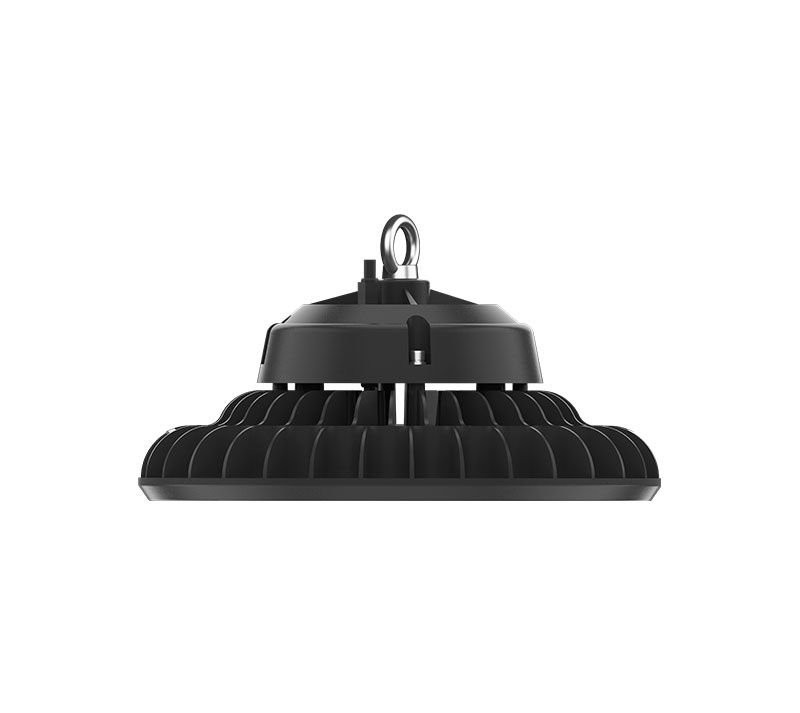

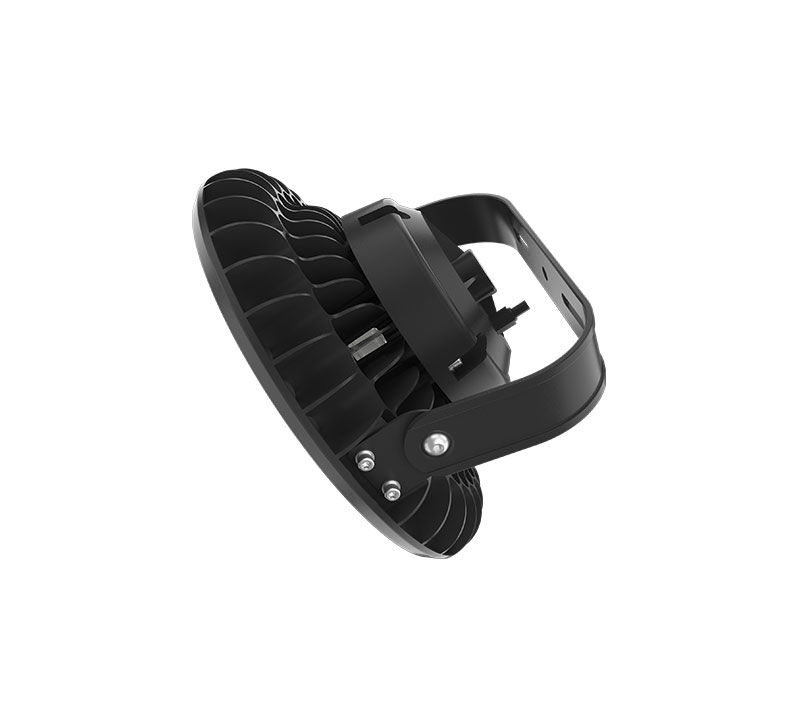

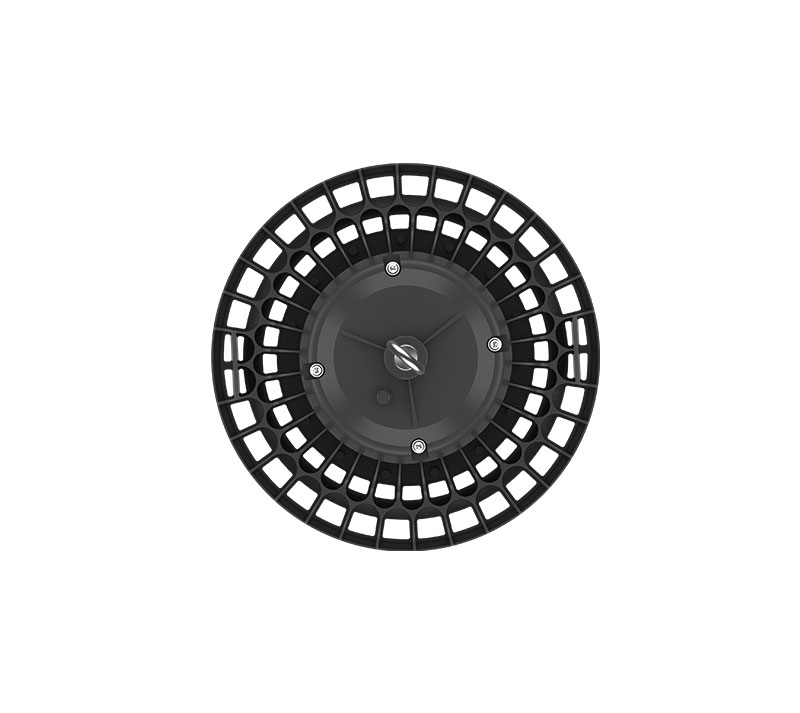

160w UFO industrial lighting with motion sensor
Wide power range: 100W~200W
Special circuit design, single LED's damage won't affect others' normal work
High Lumen output up to 155lm/w with high quality LED chips
Variety applications with different mounting Accessories
Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor
Designed to last at least 100,000 hours at L70
Multiple lighting distributions available
CE/ RoHS/ IK08 /IP65
5 years limited warranty available.
Applications
Warehouse, factory, rink, area and etc.
Specifications | |
Model | MK-BC-160 |
LED Brand | Lumileds LUXEON 3030/5050 |
Driver Brand | Meanwell HBG series |
Norminal Wattage | 160W |
LED Quantity | 3030: 240pcs 5050: 122pcs |
Input Voltage | 100-240/277VAC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | 140-155lm/w |
Lamp Rated Lumen output | 22400-24800lm (Lumen tolerance +/- 5%) |
Color Rendering Index | 70 (80 is optional) |
Color Temperature | 3000K, 4000K, 5000K or 5700K |
Photometric Type | 60,110 degrees |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | <10% |
Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
Body | Die-cast aluminum Housing |
Cover | 110°-Tempered glass ;60°-PC lens |
Rating | IP65 IK08 |
Protection | Class I |
Certification | CE,ROHS,LM80 |
Dimming Options | 1-10V or DALI or PWM or Timer |
Control Options | Motion sensor or Smart control |
Color Options | Black |
Warranty | 5 years |
None
None
Packing Details | |
Fixture Dimension | 350X350X193mm |
Fixture Weight | 5.2kg |
Packing Dimension | 365X365X210mm |
Packing Weight | 6.0kg |
