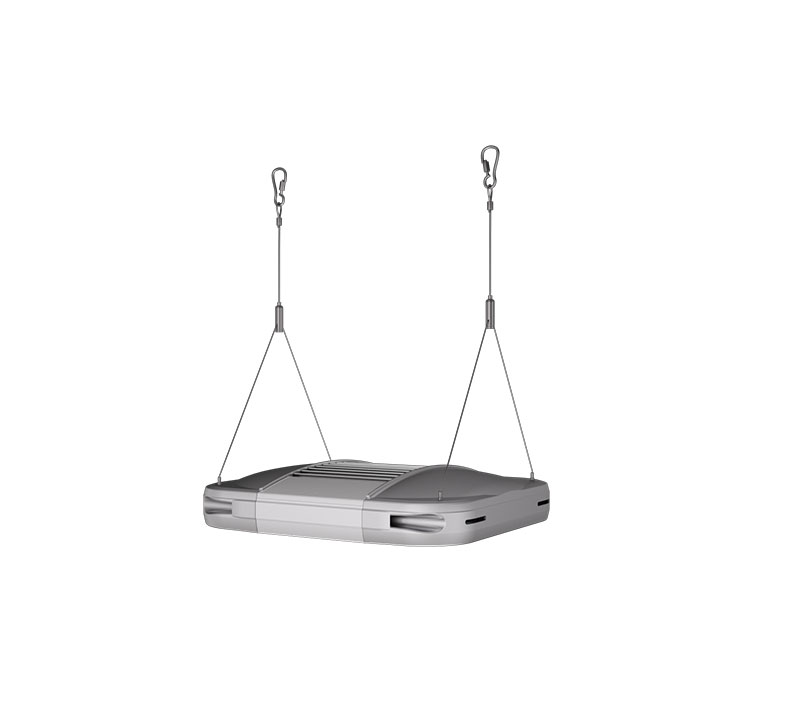

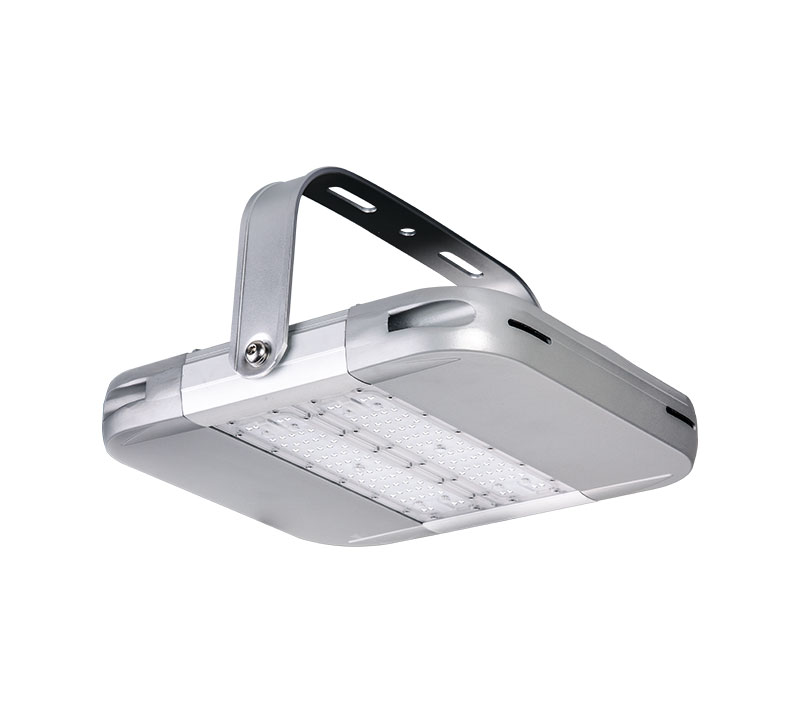

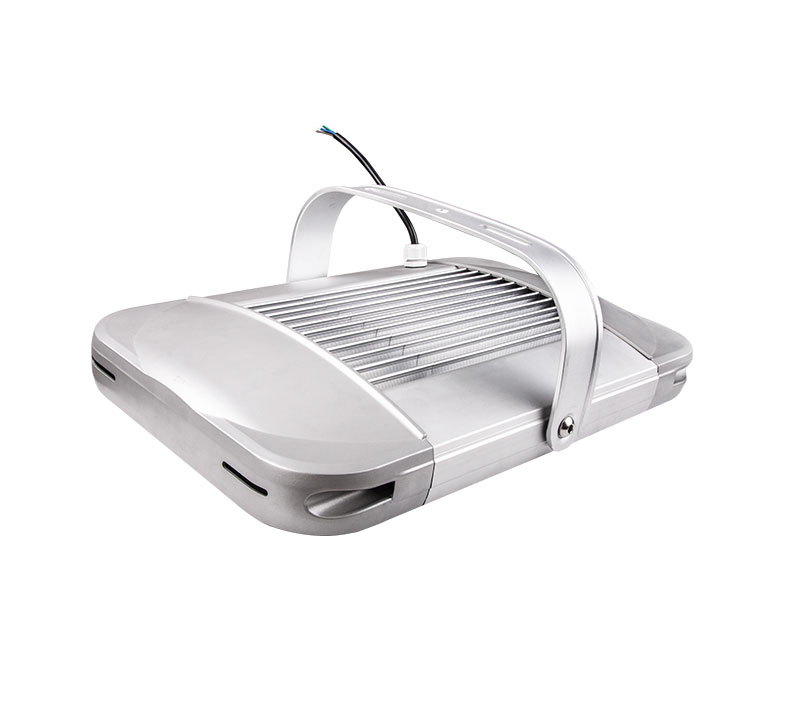

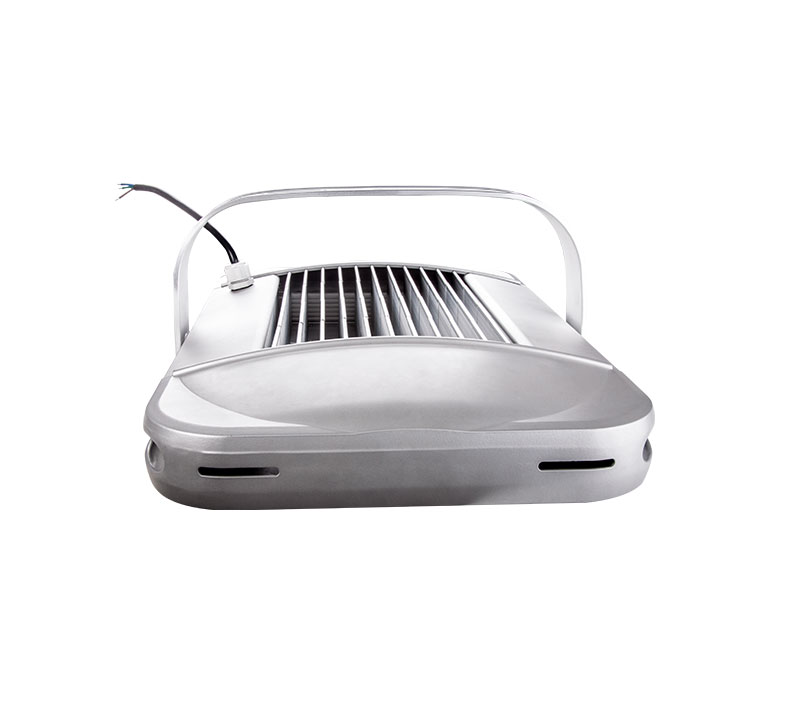

120w Led High Bay Lights | MK-BA2-120

120w Led High Bay Lights adopts modular design, which is easy to maintain and update. Equipped with Philips LEDs, the light efficiency is up to 165LM/W, which can perfectly replace 250W or even 400W traditional metal halide lamps, and the energy saving rate is over 60%. It can be used in warehouses, workshops, or exhibition halls

Key features

120w Led High Bay Lights | China Factory & Manufacturer

led high bay, high bay lights, high bay led light, high bay led high bay light


Wide power range: 40W~360W.

Special circuit design and single LED damage won't affect others' normal work.

High output lumen efficiency, up to 170lm/W.

Die-cast aluminum housing.

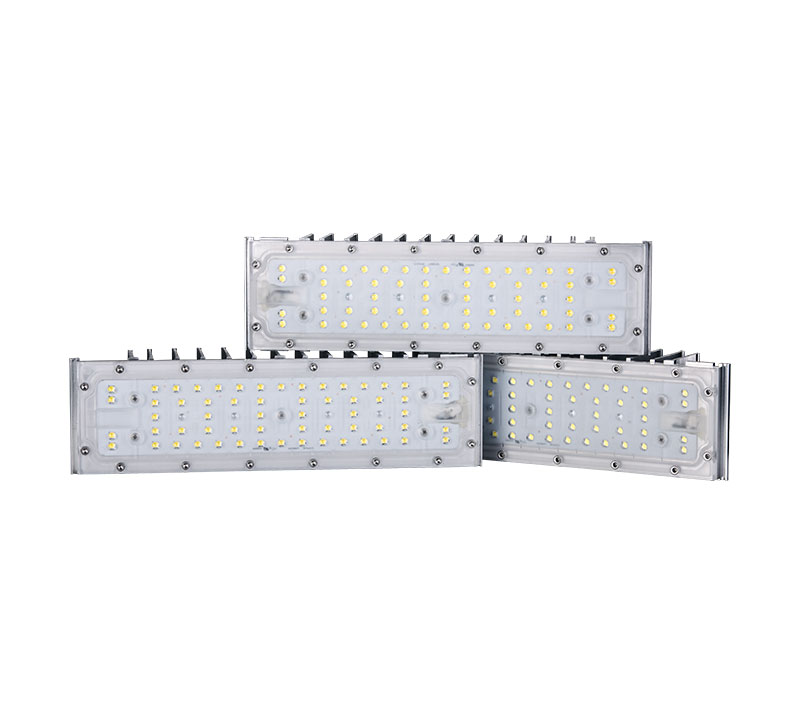

Modular design allows for easy installation, replacement, and maintenance. This design also creates a chimney effect which provides exceptional thermal management.

Corrosion-resistant polyester powder painted 100µm in thickness.

Over 10 optical lenses are available for virtually any application.

Variety applications with different mounting Accessories.

Multiple lighting control options are available, e.g. DALI, 1-10V, and Motion sensor.

Designed to last at least 100,000 hours at L70

CB/ CE/ RoHS/ IK10 /IP66 /LM79

7 years limited warranty available.



Applications

Warehouse, factory, rink, area and etc

Datasheet

120w Led High Bay Lights | China Factory & Manufacturer

led high bay, high bay lights, high bay led light, high bay, led high bay light


Specifications
ModelMK-BA2-120
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell /Inventronics
Normal Wattage120W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output15600-19800 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60, 90, 110degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming   Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years



Description

120w Led High Bay Lights | China Factory & Manufacturer

led high bay, high bay lights, high bay led light, high bay, led high bay light

Protect Eyesight 120w led high bay

Video

120w Led High Bay Lights | China Factory & Manufacturer

led high bay, high bay lights, high bay led light, high bay, led high bay light

Download

FAQ

How much power do high bay lights use?

Common LED high bay fixture wattages to vary between 60 and 300 watts. Comparing this wattage to that of a standard HID high bay fixture, the same range of 175 to 1,000 watts applies. Therefore, switching to LED lighting instantly reduces your energy use by 40% to 60%.


How high does a high bay light need to be?

The easiest method to compare high bay vs low bay lighting is by the ceiling height. Low bay fixtures are only compatible with ceilings between 12 and 20 feet in height. High bay lighting can illuminate ceilings between 20 and 45 feet in height.


How can I determine how many LED lights I need?

To get the lumens required, multiply the square footage of the room by the foot-candle requirement. For instance, a 100-square-foot living room that requires 10 to 20-foot candles would need 1,000 to 2,000 lumens. A 100-square-foot eating area that requires 30 to 40-foot candles would need 3,000 to 4,000 lumens.
