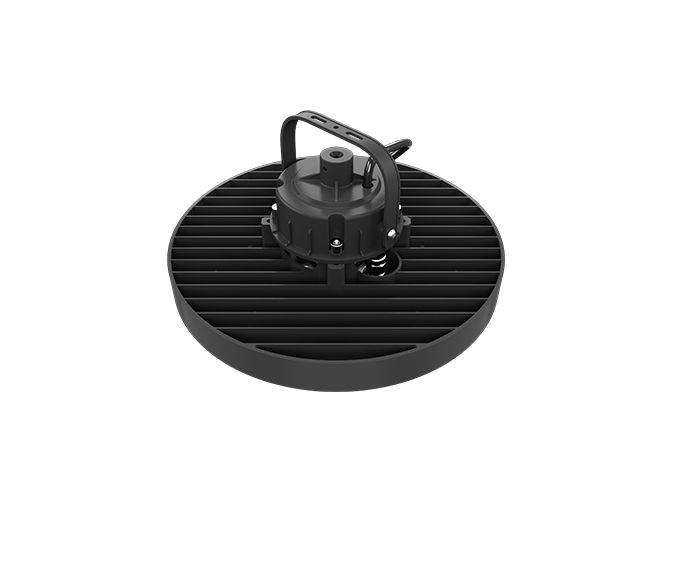

150w High Efficacy High Bay Lights

150w high-efficiency high bay light adopts high-efficiency Philips LEDs and LED driver, the highest efficiency is up to 190LM/W, which can perfectly replace 400W MH lamp, and improve the lux value by 30%, optional 60, 90 and 120° beam angle Suitable for 3-20m height, can be used in production workshops, warehouses, exhibition halls, gymnasiums, etc

Key features

High bay lights, led bay lights, led high bay fixtures, high bay light fixtures, led high bay light 150w


The energy-efficient design delivers up to 190 lm /w

70% energy saving, short ROI period

Durability, suitable for dry and wet applications

Multiple lighting distributions are available

Versatile in mounting with wall-mounted, loop hanging, steel chain hanging

Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

RoHS compliant, environmentally friendly, no mercury or lead, 100% recyclable

5 years warranty



Applications

Warehouse, factory, rink, area and etc.

Datasheet

high bay lights, Led bay lights, led high bay fixtures, high bay light fixtures, led high bay light 150w


Specifications
ModelMK-BD-100S
LED BrandLumileds  LUXEON 3030/2835
Driver BrandMOSO series
Normal Wattage100W
LED  Quantity3030: 172pcs 2835: 602pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-190lm/w
Lamp Rated Lumen output21000-28500lm (Lumen tolerance +/- 5%)
Color Rendering Index70  (80 is optional)
Color Temperature3000, 4000, 5000 or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion<10%
Lumen Maintenance>50,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP65 IK08
Protection Class  I
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsBlack
Warranty5 years



Description

high bay lights, led bay lights, led high bay fixtures, high bay light fixtures, led high bay light 150w

150w high efficacy high bay lights

Video

high bay lights, led bay lights, led high bay fixtures, high bay light fixtures, led high bay light 150w


Download

FAQ

What are high bay lights?

High bay lights are used to light up places whose ceilings are higher than 20ft above the floor and approximately 40ft. Also, for these lights to perform successfully from this height, they require specifically constructed reflectors in the case of HPS / MH bulbs and lens angles in the case of LED high bays.


What is the difference between high bay lights and low bay lights?

High Bay and Low Bay are lighting phrases used to indicate the appropriate bay lights for a certain ceiling height. Typically, High Bay Lights are used in huge spaces with ceiling heights exceeding 20 feet. Low Bay Fixtures are utilized in big spaces with ceilings between 12 and 20 feet in height.


What is High Bay lighting used for?

Large interior spaces that make it difficult to generate strong and uniform illumination throughout the whole work area need high bay lighting. High bays are often powerful fixtures that may be adjusted in a wide number of ways to meet the specific requirements of the user and the environment.

There are several kinds of fittings and reflectors for high bay lights, including LEDs, metal halide bulbs, fluorescent tubes, and plasma lamps. Different types of reflectors and fixture placements will provide notably distinct effects, ranging from powerful overhead spotlighting to a softer, more diffuse glow that illuminates a larger area.

Regardless of the setup that best suits your requirements, keeps in mind that effective lighting is mainly about safety and accuracy. In designing the installation of any high bay lighting system, it is essential to examine the particular characteristics of the area and the nature of the work being performed there.

Warehouse lighting

Warehouse lighting is one of the most frequent applications for high bay lighting, since the vast interior dimensions of large structures may make them intrinsically difficult to illuminate consistently. The shadows created by stacked items and tall shelves might be difficult for many low bay lighting systems to penetrate at shallower angles.

When installing warehouse high bay lighting, there are hundreds of various setups to select from. In light of the fact that many of these establishments are open 24 hours a day, LED high bay systems have gained popularity owing to their much cheaper operating and maintenance expenses over time.

LEDs often have a greater initial cost than conventional bulb fittings, but they need replacement far less frequently, use a fraction of the power, and provide more intense and constant light.

Traditional incandescent, fluorescent, and metal halide lamps are also suitable for many warehouse lighting applications. However, keep in mind that all of these choices will need more frequent replacement and use more energy than their more energy-efficient LED rivals.

Shop lighting

The T5 or T8 fluorescent tube lamp is one of the most common configurations for high bay store lighting in use today. These are often seen positioned high above shop floors, typically recessed behind massive concave reflectors, allowing them to provide brilliant and consistent illumination across vast regions. Fluorescent lights are especially prevalent in situations with glossy, polished, or reflecting surfaces, which tend to complement their flat, color-neutral, and widely spread light quality.

Industrial lighting

Modern LED setups have gained significant popularity in industrial high bay lighting fixtures in recent years, partly because safety, accuracy, and quality are paramount issues in all industrial contexts. Both instant-on functionality and compatibility with microwave activation sensors are notable benefits of LED industrial lighting.

Adaptable lighting configurations are also appreciated in a variety of industrial contexts. LEDs are leagues ahead of conventional lamps in this sense, often allowing for minute adjustments on the fly and enabling users to produce drastically diverse illumination quality and intensities in various zones of the workstation.

Again, because of the 24-hour nature of many industrial and manufacturing facilities, the larger initial investment in LED bulbs is often soon compensated by their much cheaper operating expenses. Additionally, much-enhanced durability and dependability lead to a little downtime, which is an important factor for fast-paced production lines.

Loading-bay lighting

The loading dock is one of the most crucial connections in the supply chain of any warehouse, industrial, logistics, or big retail facility. Demand for around-the-clock access to these busy work areas necessitates the installation of a durable, well-designed loading bay lighting system. All general goods handling, transportation, and transfer zones must be adequately illuminated to maximize worker safety and efficiency.

Additionally, it is essential to examine where extra functionality may be necessary to fulfill the stringent requirements of a multi-space loading bay. Adjustable dock guiding lights, for instance, are very useful for lighting the inside of trucks, crates, and containers to lessen the danger of damage or injury during product delivery.

Garage Lights

High-quality garage lighting is essential for maximizing productivity and work quality, as well as for withstanding the demands of a shop floor or service area, where lower-grade systems may struggle. Particulates, gases, and other pollutants may rapidly obstruct or destroy high or low bay fixtures that are not up to the environment's rigors, resulting in significantly reduced illumination quality and uniformity.

Popular options for high bay lighting in garages, workshops and service centers include fluorescent and LED bulb configurations. This is owing to its appropriateness for usage in locations where the greatest levels of workmanship, finishing, and attention to detail need good color reproduction and little glare.
