This is a bus station lighting project in Ecuador. It uses 240W LED flood light, AC347V high voltage input, modular design, easy maintenance, and a variety of beam angles to choose from. After the project was completed in 2017, none of the lights have failed so far.
Project Location: Ecuador
Project time: 2017
Luminaire details:

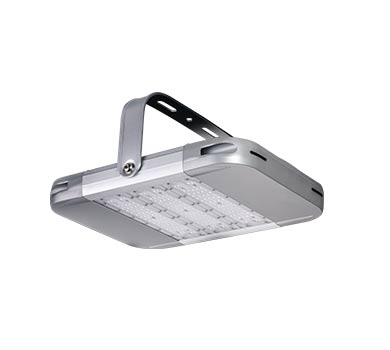

240W LED High Bay Light, Model: MK-BA6-240, 347V high voltage, 5700K 110degree, 80pcs+
led outdoor flood light, flood lamps, led flood lamps, best outdoor flood lights, floodlight, led floodlight
| Specifications | |
| Model | MK-BA6-240 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell /Inventronics |
| Norminal Wattage | 240W |
| LED Module Quantity | 6 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 145-170 lm/w |
| Lamp Rated Lumen output | 34800-40800 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000, 4000, 5000 or 5700K |
| Photometric Type | 60, 90, 110degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Specification_BA_ led flood light.pdf
Installation Manual__HighBay&FloodLight_BA.pdf
Related Products:
|
|
|
| led outdoor flood light | flood lamps | led flood lamps |
|
|
|
| best outdoor flood lights | floodlight | led floodlight |
Related Projects:
|
|
|
| 120w led flood light in Indonesia | 840w led stadium light in Mexico | 80w led flood light in Israel |
|
|
|
| 150w LED Flood Light in Bulgaria | led flood light in Czech Republic | High Bay Light project in Spain |
|
|
| How to calculate illumination uniformity? | 10 Important Facts About Led Street Light |
|
|
| Does LED street lamps better than HPS lamps? | Standard for lighting design of urban road |
a. What is a good LED flood light?
5,000K – 5000K LED floodlights are by far the most common. This color temperature projects cool white illumination that simulates the daytime environment. This is ideal for lighting and safety in outdoor spaces.
b. What is a 30W LED floodlight equivalent to?
For example, our 30W LED floodlights emit 3900 lumens of light - the equivalent of a 150W halogen floodlight while consuming much less energy.
c. What LED wattage is equivalent to 500w?
Since the lumens per watt of LED are more than 10 times higher, we can directly replace a 500 watt halogen bulb with a 50 watt or 100 watt LED.
d. What is the purpose of LED flood light?
The main purpose of LED floodlights is to brighten your outdoor areas with high intensity of light. LED floodlights provide you with higher levels of light to protect your outdoor space.
