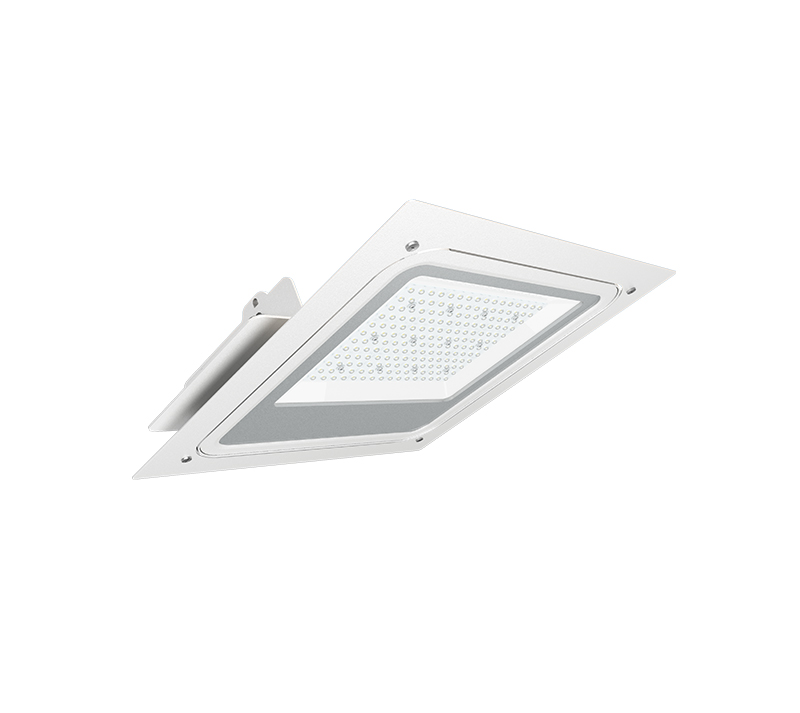

80w petrol station light

80w LED canopy light for petrol station lighting, using high quality LUMILEDS LEDs and INVENTRONICS Driver to ensure high performance and long lifetime, it supports recessed, surface and bracket three installation types, 60 , 90 and 120° beam angles are optional, with ATEX explosion-proof certification, which can be safely used in gas stations.

Key features

led canopy lights for petrol station

1.Up to 100,000hrs @ L70, low maintenance cost

2. World-class, approbated quality components (LEDs /Driver /etc.)

3. Tempered glass cover, easy for cleaning

4. Compact die-cast structure, solid mechanism, and reliable quality

5. ATEXcertification allows the lamps to be used safely inflammable and explosive areas

6. Optional installations accessories for recessed, surface, and bracket mounting

7. CE/ RoHS/ IK10 /IP66

8. Multiple lighting distributions are available

9. Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

10.  5 years warranty



Petrol station, Gas station, Warehouse, Logistic hall, Toll station, Exhibition center, Workshop


gas station canopy lights

LED BrandLumileds  LUXEON 3030
Norminal Wattage80W
LED Quantity144pcs
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency165 lm/w
Lamp Rated Lumen output13200 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000, 4000, 5000, or 5700K
Photometric Type60°, 90° or 120°
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh-pressure die-cast aluminum
CoverUV-resistant  Polycarbonate+Tempered glass
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsWhite
Warranty5 years



  1. What are Canopy lights?

    Canopy lights are usually installed outdoors under overhangs. These lamps illuminate the area below them. They can be equipped with clear lenses that focus light or frosted lenses that spread light, reducing glare and illuminating a wider area. They are durable and often weatherproof and tamper-proof.

  2. Where are Canopy lights used?

    canopy lights can be found in many applications. They can be installed in gas stations, parking lots, bus stops, auto shops, and other locations that require a strong light source and are likely to be exposed to harsh conditions. Smaller canopy lights can be used in residential environments, including overhead, deck, porch, and carport.

  3. What are the different types of Canopy lights?

    There are some differences between Canopy lights. They are usually square (square canopy) or round (round canopy) and are surface mount or recessed mount. The light source is usually HID (high-intensity discharge) bulbs, such as metal halide or sodium vapor, or LED diodes.

  4. What are the benefits of LED Canopy lights?

    LED canopy lights have many benefits. LED Canopy lights are more energy-efficient than HID alternatives, turn on immediately, and can cope with extreme temperatures. LED lamps are typically thinner in shape and can be easily installed in multiple locations.
