LED tunnel floodlight adopts modular design, easy maintenance and replacement, flexible and adjustable angle mounting bracket, power range 40W-360W, light efficiency up to 165LM/W, Philips LEDs, and Inventronics programmable power supply, L90 is greater than 100,000 hours, high performance but competitive price.
Wide power range: 40W~240W
Special circuit design, single LED damage won't affect others' normal work
Modular design for easy installation, replacement, and maintenance.
High Lumen output up to 165lm/w with high quality LED chips
Variety of applications with different mounting Accessories
Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor
Designed to last at least 100,000 hours at L70
Multiple lighting distributions are available
SAA/ CB/ CE/ RoHS/ IK10 /IP66 /LM79
7 years limited warranty available.
Applications
Tunnel, Channel, Corridor, Cave
| Specifications | |
| Model | MK-TA1-40 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Normal Wattage | 40W |
| LED Module Quantity | 1 module |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 145-170lm/w |
| Lamp Rated Lumen output | 5800-6800lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000, 4000, 5000 or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | <10% |
| Lumen Maintenance | >100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |

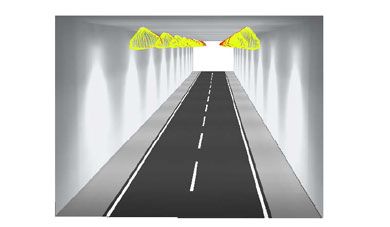

A decent tunnel lighting system allows the driver to adjust to the light within the tunnel at the entry. Providing appropriate illumination throughout the tunnel promotes a safe driving environment. The motorist must enter the tunnel without causing any damage, travel through it, and escape it safely.
Generally used for transition and interior zones in long tunnels, and for all zones in small tunnels or low-speed tunnels. In one-way tunnels, asymmetrical lighting may also be used to reinforce the brightness level.
Tunnel illumination is required to address the issue of the tunnel's atmosphere abruptly adapting. The adaptation of the inside and outside brightness for the person entering or departing the tunnel must be balanced. This design is based on the tunnel's critical length.
