560w stadium flood light for football field adopts modular design, the module can realize 0-270 degree rotation, both symmetrical and asymmetrical spectrum are optional, high light efficiency 150lm/w, can replace traditional 2000W metal halide lamp, adopt INVENTRONICS programmable LED driver can realize 1-10V, DALI dimming, and remote control.

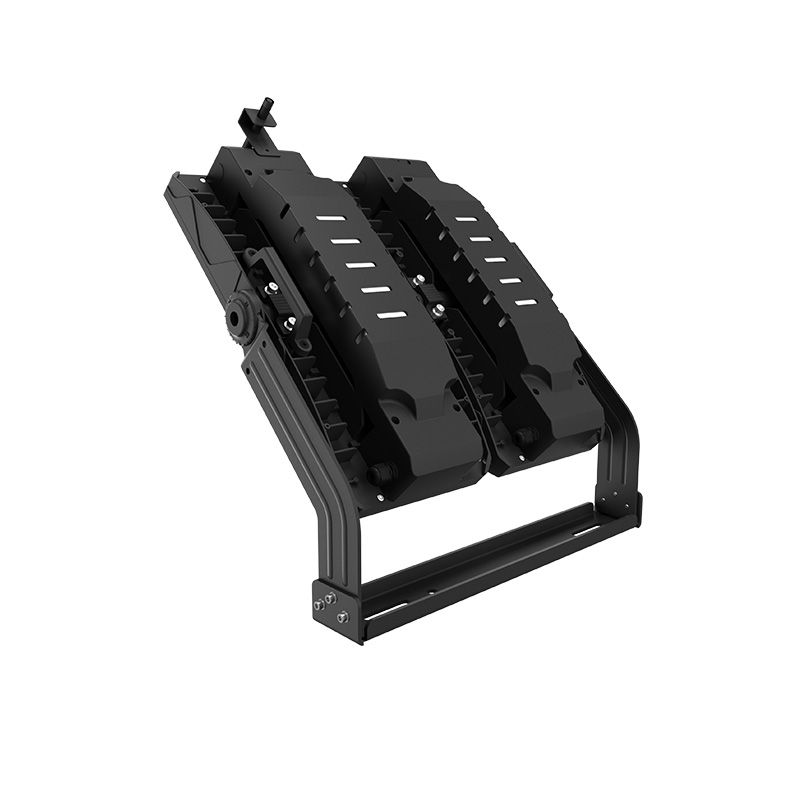

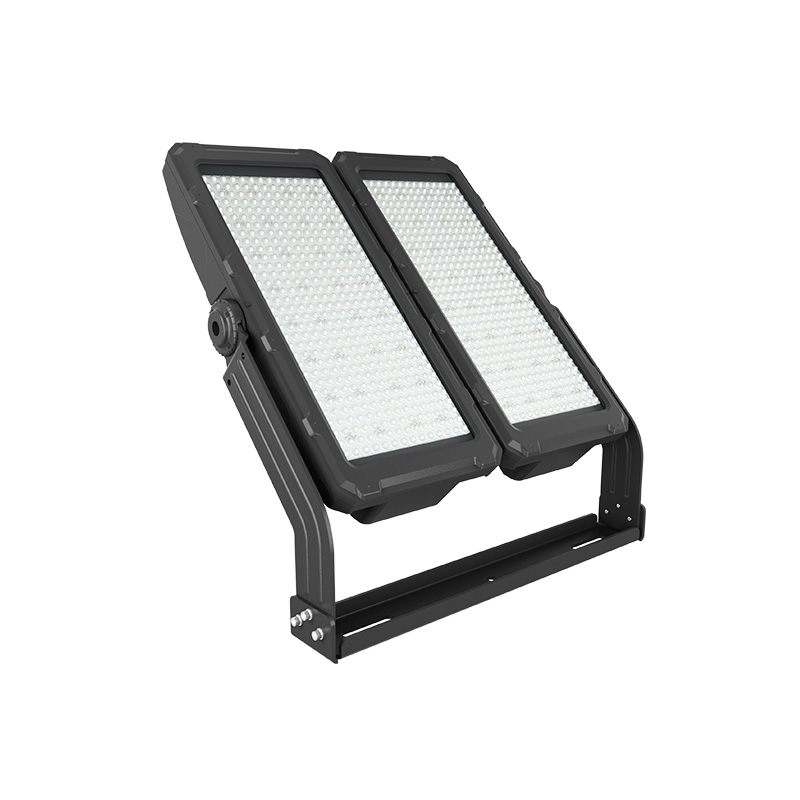

560w stadium flood light
Stadium flood light, football stadium lights, stadium light, football field lights, sports field lights
Up to 840W, max lumens is 126,000lm
Special circuit design, single LED damage won't affect others' normal work
Modular design for easy installation, replacement, and maintenance.
Mounting bracket for 360-degree adjustment
Multiple lighting control options are available, e.g. DALI, 1-10V
Designed to last at least 100,000 hours at L70
Multiple lighting distributions are available
CE/ RoHS/ IK10 /IP66
5 years limited warranty available.
Applications
Stadium, arena, golf course, tennis court, Airport, crossroad
560w stadium flood light
stadium flood light, football stadium lights, stadium light, football field lights,Sport field lights
| Specifications | |
| Model | MK-FA-560 |
| LED Brand | Philips LUXEON 3030 2D |
| Driver Brand | INVENTRONICS DRIVER |
| Normal Wattage | 280W |
| LED Quantity | 896Pcs |
| Input Voltage | 100-240/277VAC, 50/60Hz |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >150lm/w |
| Lamp Rated Lumen output | 84000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000, 4000, 5000 or 5700K |
| Photometric Type | 15,30,45,60 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40℃~+50℃ |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | <10% |
| Lumen Maintenance | >100,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Stretched Aluminium Alloy |
| IP Rating | IP66 with a test report |
| Certification | CE, ROHS |
| Optional Function | 1-10VDC Dimming |
| Warranty | 5 years |
560w stadium flood light
stadium flood light, football stadium lights, stadium light, football field lights, sport field lights
560w stadium flood light
stadium flood light, football stadium lights, stadium light, football field lights, sport field lights
Stadium flood lights are high-powered, high-output lighting fixtures that can illuminate enormous areas like sports arenas, fairs, big parking lots, major construction and industrial sites, and more.
They are called flood lights because they are flooding the area with light.
Stadium lights are high-powered sports lights with narrow beam angles, often ranging from 12 to 60 degrees. Because the beam angles are narrower, the light intensity inside that angle is stronger, allowing brilliant light to reach the ground from greater heights.
