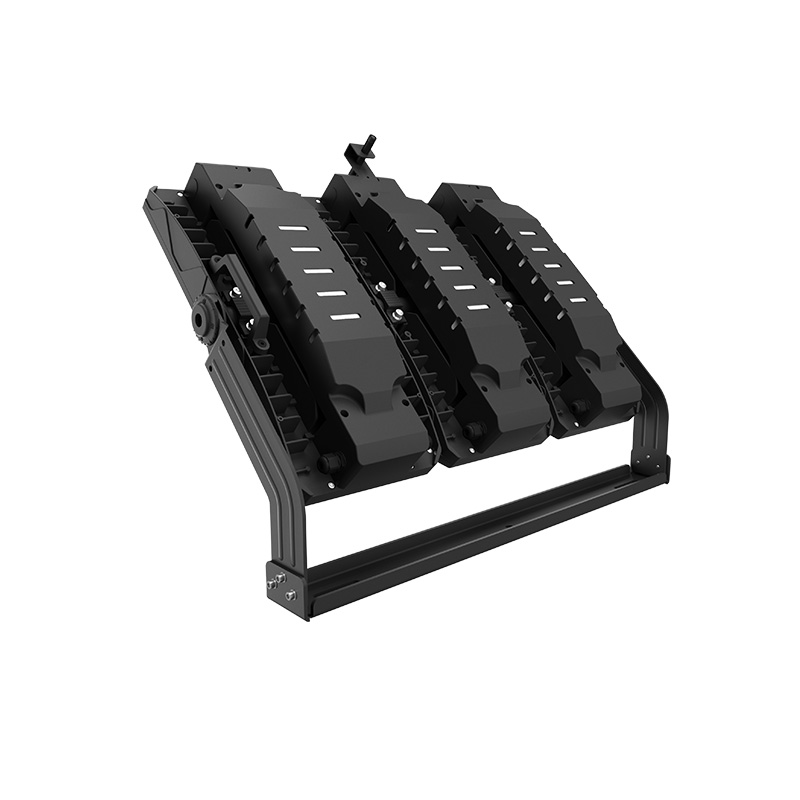

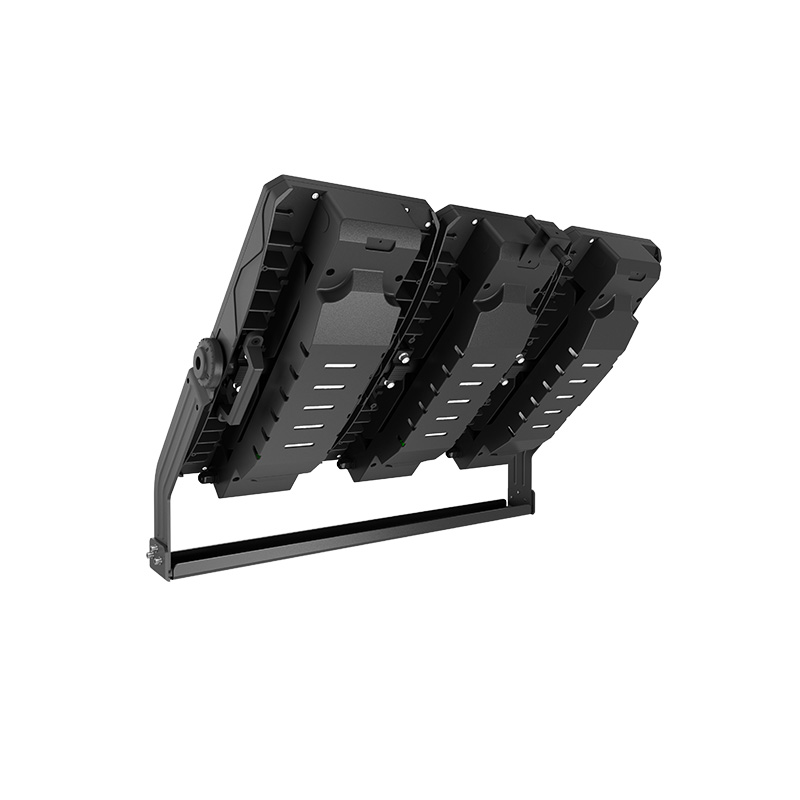

840w LED Stadium Lights

840w LED stadium light adopts high-efficiency Philips LEDs and LED Driver to ensure long life, L90 is greater than 100,000 hours, modular design, easy maintenance and update, adjustable bracket, the stadium flood light can be installed on the pole, ground or wall, suitable for football fields, tennis courts, basketball courts or airports, etc.

Key features

840w led stadium lights, stadium light, football stadium lights, stadium flood light, led stadium flood light


Up to 840W, max lumens is 126,000lm

Special circuit design, single LED damage won't affect others' normal work

Modular design for easy installation, replacement, and maintenance.

Mounting bracket for 360-degree adjustment

Multiple lighting control options are available, e.g. DALI, 1-10V

Designed to last at least 100,000 hours at L70

Multiple lighting distributions are available

CE/ RoHS/ IK10 /IP66

5 years limited warranty available.



Applications

Stadium, arena, golf course, tennis court, Airport, crossroad

Datasheet

840w led stadium lights, stadium light, football stadium lights, stadium flood light, led stadium flood light

Specifications
ModelMK-FA-840
LED BrandPhilips  LUXEON 3030 2D
Driver BrandINVENTRONICS  DRIVER
Normal Wattage840W
LED Quantity1344Pcs
Input Voltage100-240/277VAC, 50/60Hz
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>150lm/w
Lamp Rated Lumen output126000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000, 4000, 5000 or 5700K
Photometric Type15,30,45,60 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40℃~+50℃
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion<10%
Lumen Maintenance>100,000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsStretched Aluminium Alloy
IP RatingIP66 with the test report
CertificationCE, ROHS
Optional Function1-10VDC Dimming
Warranty5 years



Description

840w led stadium lights, stadium light, football stadium lights, stadium flood light, led stadium flood light

840w led stadium lights

Video

840w led stadium lights, stadium light, football stadium lights, stadium flood light, led stadium flood light


Download

FAQ

What is stadium lighting?

Stadium lights are highly strong sporting lights set at lofty heights with modest beam angles, generally ranging from 12-60 degrees. With these narrower beam angles, there is more light intensity inside that angle that permits brilliant light to reach the ground from lofty heights.


What are stadium lights made of?

For years, metal halide lamps have been used to illuminate playing grounds in stadiums. Now, though, venues are adopting LED lighting, which has previously made strides in applications ranging from Christmas lights to municipal street lights.


Where Are Flood Lights Used?

Floodlights are most commonly used in outdoor areas where a lot of bright light is required, such as stadiums, parking lots, stores, swimming pools, squares, airports, mines, worksites, storage, playgrounds, and warehouses exteriors.
