40w tool-less led light street for vertical pole

40w tool-less led light street for vertical pole

Key features

40w tool-less led light street for vertical pole

led light street, street light led, street led light, led street light fixtures, led street light


Wide power range: 20W~240W

Luminaire efficacy: Up to 170 lm /w

70% energy saving, short ROI period

Up to 100, 000hrs @ L70, low maintenance cost

World-class, approbated quality components (LEDs /Driver /etc.)

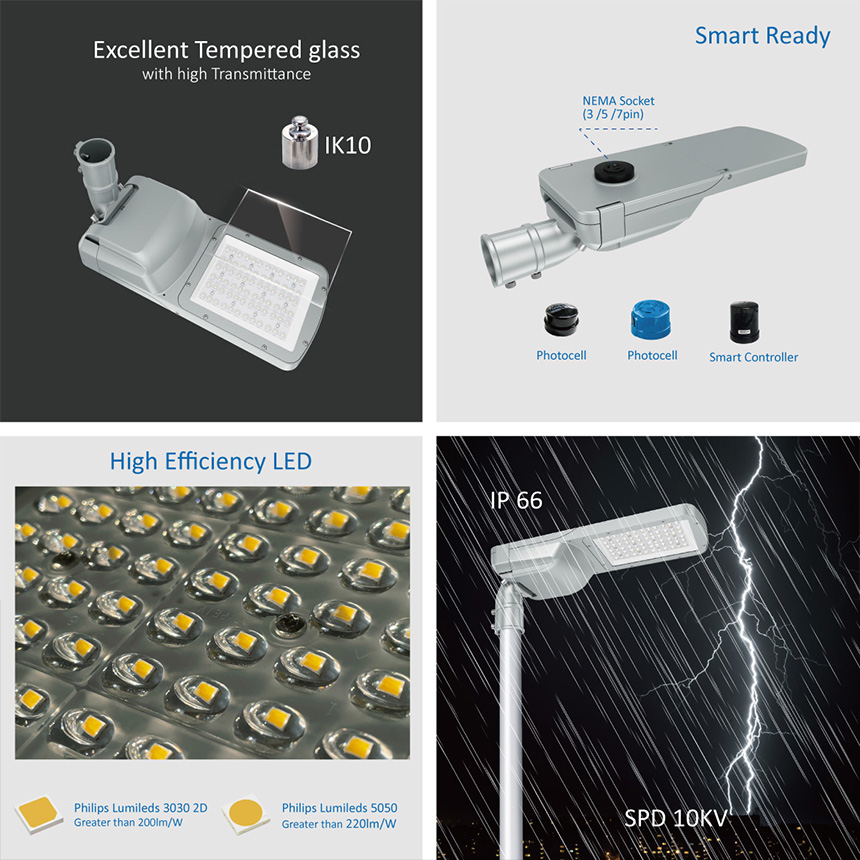

Tool-less opening of driver box, ease of maintenance

Support horizontal and vertical mounted, suitable for different light poles

High-pressure die-cast aluminum and Tempered glass cover

More than 10 types of light distributions for optional

Power-off protection makes the power automatically off when the fixture is opened.

A smooth body would greatly diminish dust accumulation and bird droppings heap up.

Level bubble makes it easy for the installer to adjust the position of the lamp.

1500 hours salt spray test report.



Applications

Local roads, Express roads, Town roads, Residential area roads, Pedestrian crossings, Parking areas


Datasheet

40w tool-less led light street for vertical pole

led light street, street light led, street led light, led street light fixtures, led street light


Specifications
ModelMK-SE1-40
LED BrandLumileds 3030/5050
Driver BrandMeanwell  or Inventronics
Normal Wattage40W
Input Voltage100-240/277VAC/DC12/24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency150-160   lm/w
Lamp Rated Lumen output6000-6400  lm (Lumen tolerance +/- 5%)
Color Rendering Index70(  80 optional)
Color Temperature3000K  or 4000K or 5000K or 5700K
Optic (IESNA)Type  II Medium;Type III Medium
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion<10%
Lumen Maintenance>100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce  12
BodyDie-cast  aluminum Housing and Tempered glass
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class  I ( Class II optional)
SPD10KV  (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,IP66,IK10
Dimming Options1-10V  or DALI or PWM or Timer
Available on requestNEMA  socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife   switch, NTC, OLC, Solar Compatible, DALI Dimming
Warranty5  years


Description

40w tool-less led light street for vertical pole

led light street, street light led, street led light, led street light fixtures, led street light

40w tool-less led light street for vertical pole

Video

40w tool-less led light street for vertical pole

led light street, street light led, street led light, led street light fixtures, led street light


Download

FAQ

Packing   Details
Fixture Dimension610x190 x143mm
Fixture Weight4.7kg
Packing Dimension545x240 x175mm
Packing Weight5.2kg
