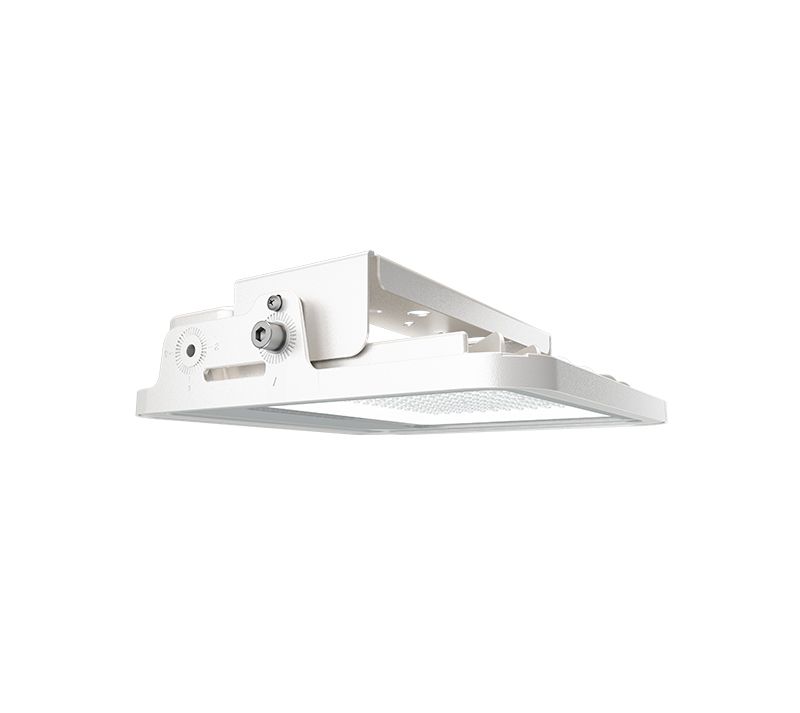

surface mounted gas station light fixtures

surface mounted gas station light fixtures

Key features

surface mounted gas station light fixtures

gas station light fixtures, gas station led light fixtures, canopy light fixtures gas station, led light fixtures for gas station, canopy light fixtures for gas station


1.     Up to 100,000hrs @ L70, low maintenance cost

2.     World class, approbated quality components (LEDs /Driver /etc.)

3.     Tempered glass cover, easy for cleaning

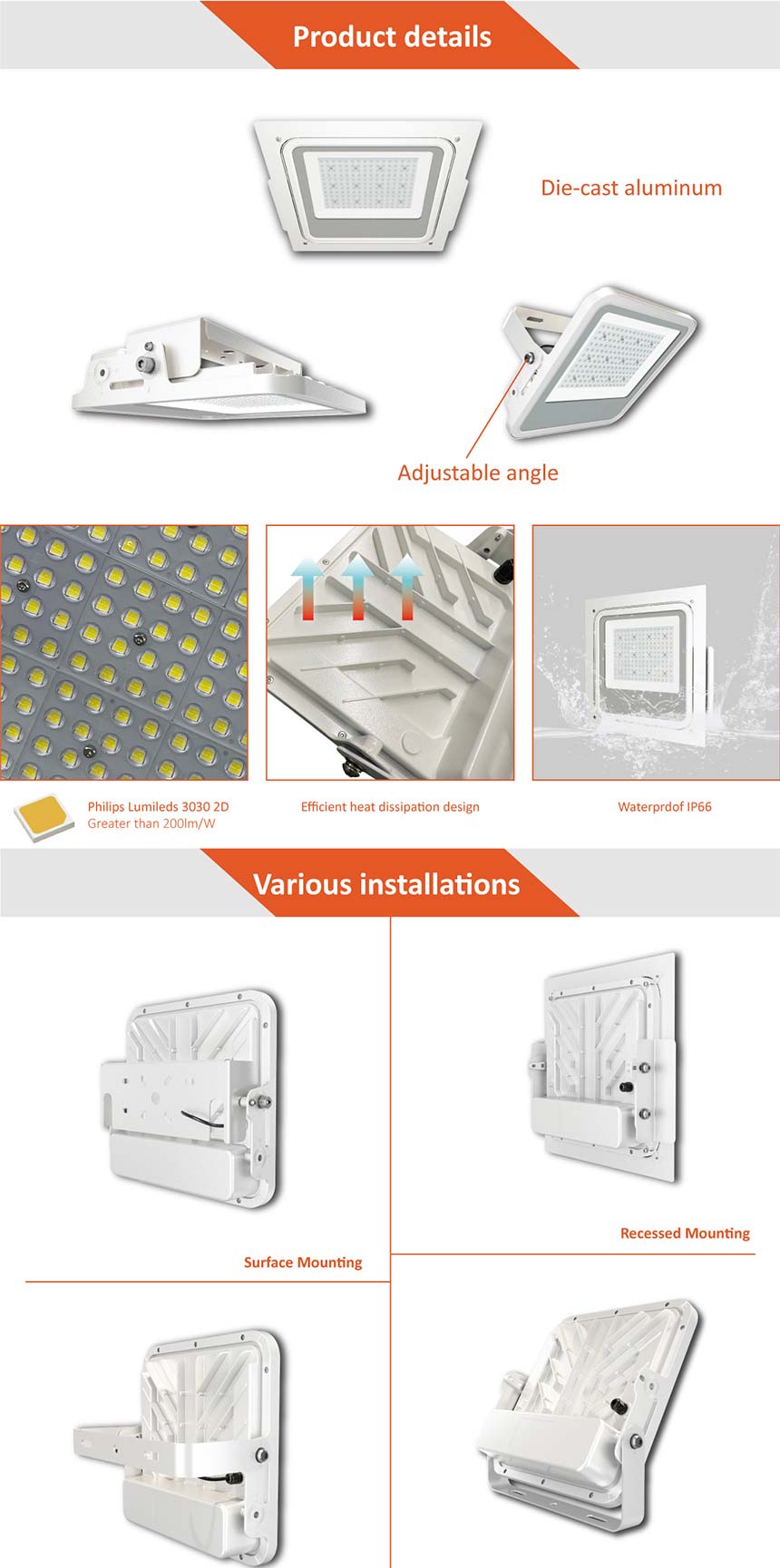

4.     Compact die-cast structure, solid mechanism and reliable quality

5.     ATEX certification allows the lamps to be used safely in flammable and explosive areas

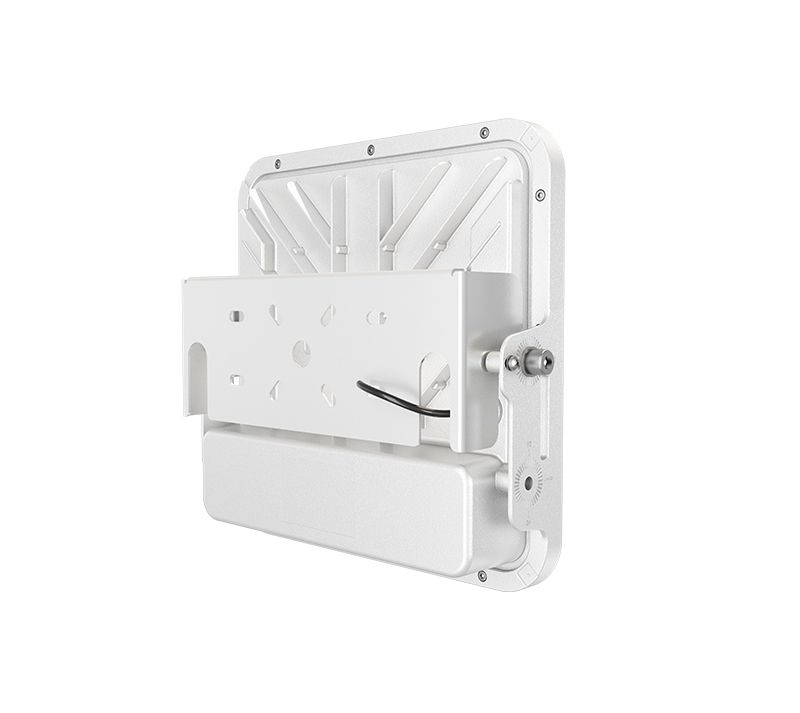

6.     Optional installations accessories for recessed, surface and bracket mounting

7.     CE/ RoHS/ IK10 /IP66

8.     Multiple lighting distributions available

9.     Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

10.   5 years warranty



Applications

Petrol station, Gas station, Warehouse, Logistic hall, Toll station, Exhibition center, Workshop


Datasheet

surface mounted gas station light fixtures

gas station light fixtures, gas station led light fixtures, canopy light fixtures gas station, led light fixtures for gas station, canopy light fixtures for gas station


Specifications
ModelMK-RC-100S
LED BrandLumileds  LUXEON 3030
Driver BrandINVENTRONICS
Norminal Wattage100W
LED Quantity144pcs
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency160 lm/w
Lamp Rated Lumen output16000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60°,  90° or 120°
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh pressure die-cast aluminum
CoverUV-resistant Polycarbonate+Tempered glass
RatingIP66  IK10
Protection Class  I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI  or PWM or Timer
Control OptionsMotion  sensor or Smart control
Color OptionsWhite
Warranty5  years




Description

surface mounted gas station light fixtures

gas station light fixtures, gas station led light fixtures, canopy light fixtures gas station, led light fixtures for gas station, canopy light fixtures for gas station

surface mounted gas station light fixtures

Video

surface mounted gas station light fixtures

gas station light fixtures, gas station led light fixtures, canopy light fixtures gas station, led light fixtures for gas station, canopy light fixtures for gas station


Download

FAQ

Packing Details
Fixture Dimension354 x330 x92mm
Fixture Weight4.3kg
Packing Dimension380 x380 x150mm
Packing Weight4.9kg
