Tool-less 40w LED Road Light with Dialux simulation

Tool-less 40w LED Road Light with Dialux simulation

Key features

Tool-less 40w LED Road Light with Dialux simulation

LED Road Light,40w LED Road Light, LED Road Light with Dialux simulation, Tool-less LED Road Light

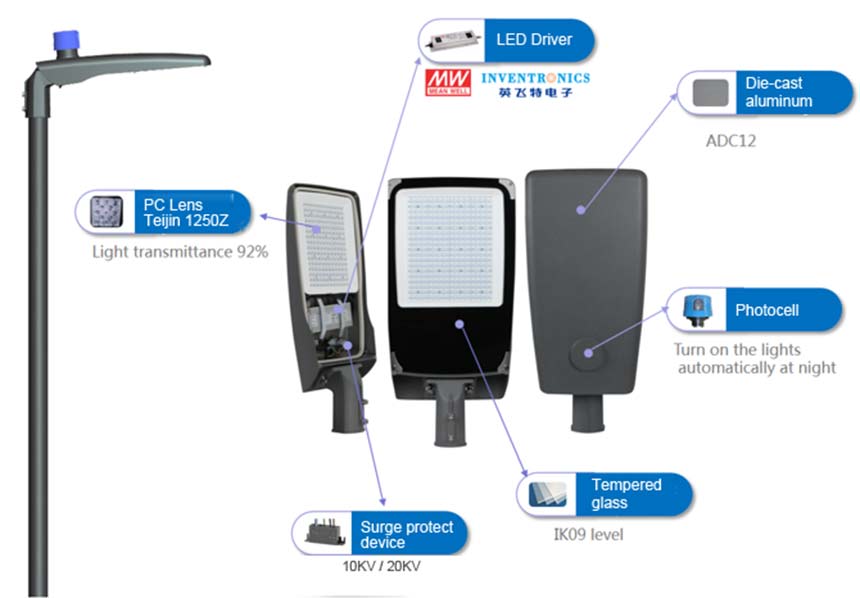

IP66 waterproof/dust proof/explosion proof/IK09

Aluminum shape good at heat dissipation

The lamp post can be adjusted to plus or minus 15 degrees

It can also be installed vertically

Philips SMD 3030/ 5050/ Ra>70/SDCM<6

100,000 times switching cycle before failure

Total harmonic distortion (THD)<10%

Excellent post light control design, the whole lamp can achieve T II-M, T III-M, That's our advantage

Pass 3G vibration test

Application

It is mainly applied to the road lighting of urban expressway, secondary, trunk road, branch road, factory, school, garden, various residential communities, and courtyards. The installation height is 6-13m and the installation torque is 16Nm.


Datasheet

Tool-less 40w LED Road Light with Dialux simulation

LED Road Light, 40w LED Road Light, LED Road Light with Dialux simulation, Tool-less LED Road Light

Specifications
ModelMK-SG1-40
LED LUMILEDS®   LUXEON 3030 or 5050
DriverMeanwell   / Inventronics
Wattage40W
Voltage100-240/277VAC/347V/480VAC
PF>0.95
Luminaire efficacy130-150   lm /w
Luminaire flux5200-6000   lm (Lumen tolerance +/- 5%)
CRI70(80   optional)
CCT3000K   or 4000K or 5000K or 5700K
Optic lensType   II Medium;Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
THD<   10%
Lifetime>   100,000 hours -L70, @25 ºC (77 ºF)
Wind resistanceForce   12
MaterialsDie-cast   aluminum; Tempered Glass
Pole Fitter Diameter60mm   ( 50mm optional)
RatingIP66   IK08
Protection Class   I ( Class II optional)
Surge Protection Device10KV   (20KV optional)
CertificationsCE,   ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V   or DALI or PWM or Timer
ControlsPhotocell   or Motion sensor or NEMA or ZHAGA for Smart control
Body colorDeep   grey or Light grey
Warranty5   years


Description

Tool-less 40w LED Road Light with Dialux simulation

LED Road Light,40w LED Road Light, LED Road Light with Dialux simulation, Tool-less LED Road Light

Tool-less 40w LED Road Light with Dialux simulation

Video

Tool-less 40w LED Road Light with Dialux simulation

LED Road Light,40w LED Road Light, LED Road Light with Dialux simulation, Tool-less LED Road Light



Download

FAQ
