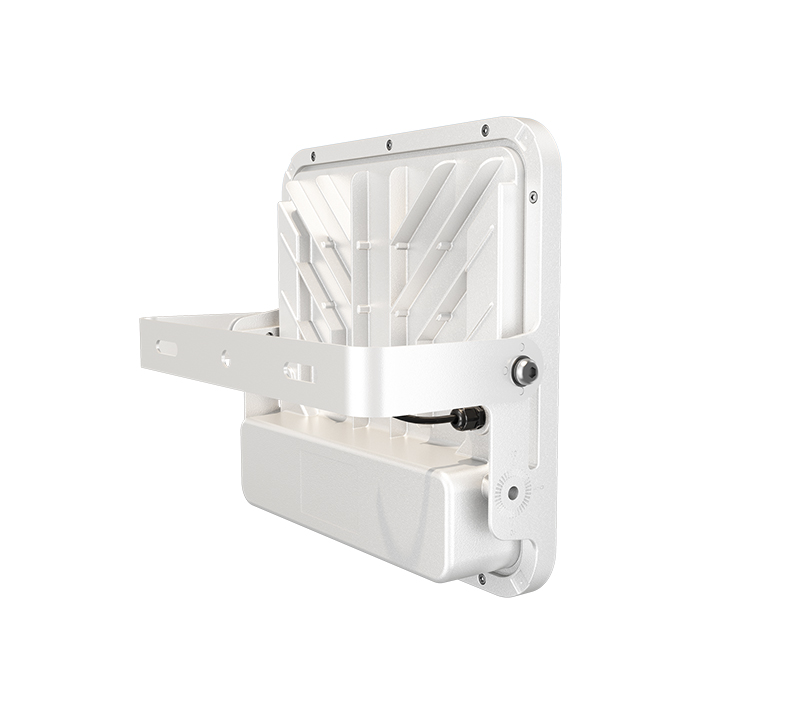

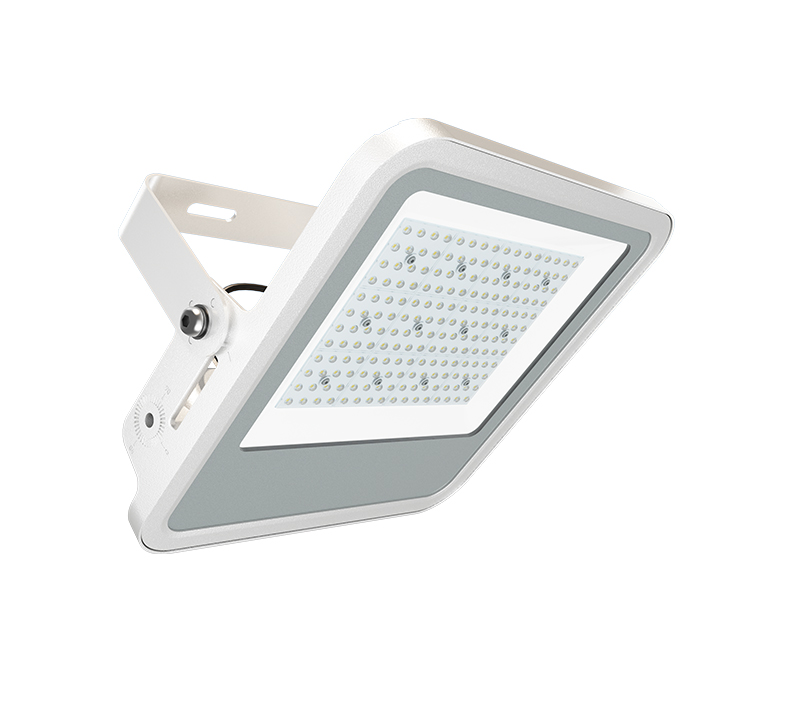

bracket mounted gas station light

bracket mounted gas station light

Key features

bracket mounted gas station light

gas station light, led gas station light, led canopy light for gas station, gas station light fixtures, gas station canopy light


1.     Up to 100,000hrs @ L70, low maintenance cost

2.     World class, approbated quality components (LEDs /Driver /etc.)

3.     Tempered glass cover, easy for cleaning

4.     Compact die-cast structure, solid mechanism and reliable quality

5.     ATEX certification allows the lamps to be used safely in flammable and explosive areas

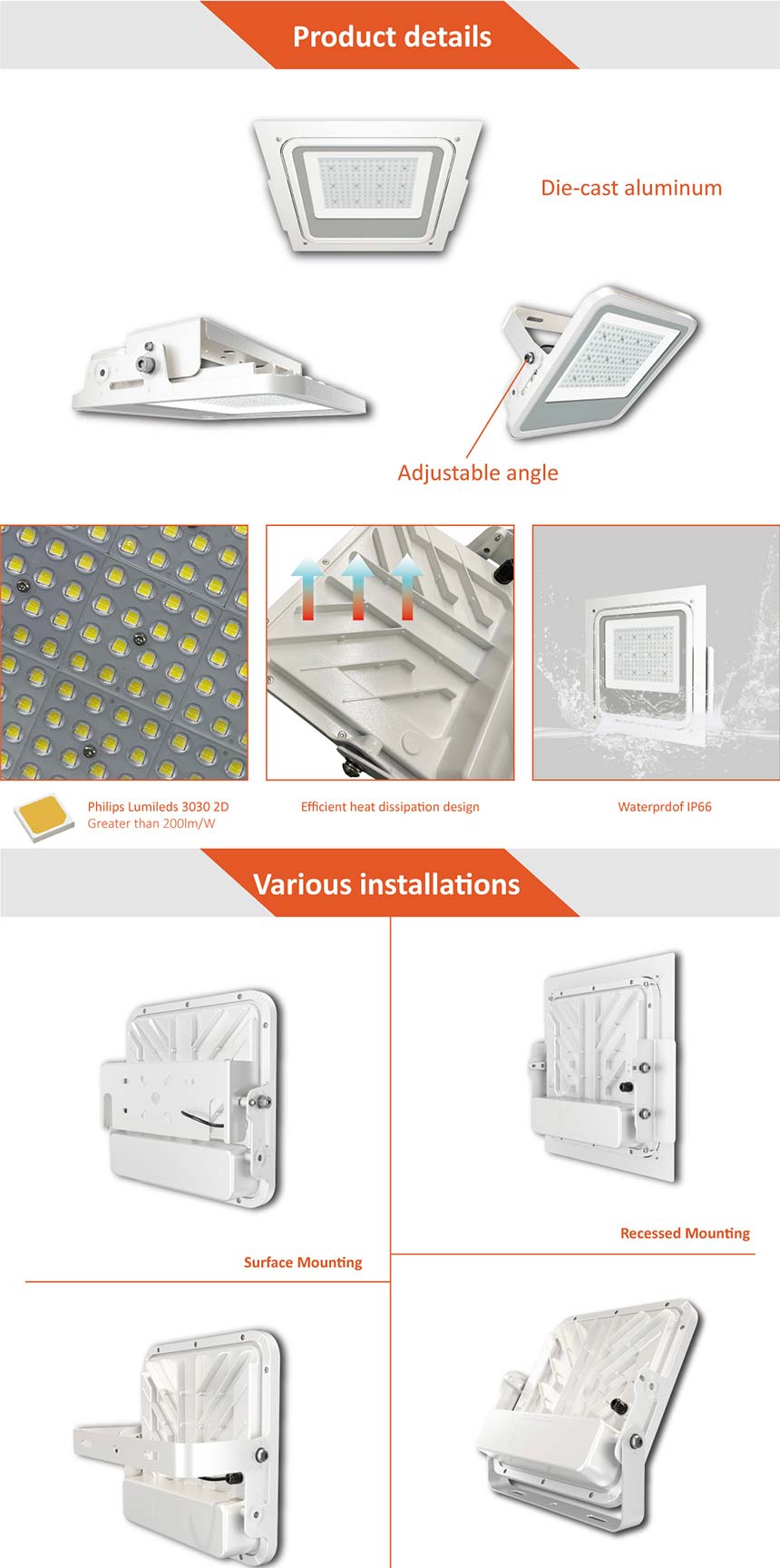

6.     Optional installations accessories for recessed, surface and bracket mounting

7.     CE/ RoHS/ IK10 /IP66

8.     Multiple lighting distributions available

9.     Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor

10.   5 years warranty



Applications

Petrol station, Gas station, Warehouse, Logistic hall, Toll station, Exhibition center, Workshop

Datasheet

bracket mounted gas station light

gas station light, led gas station light, led canopy light for gas station, gas station light fixtures, gas station canopy light


Specifications
ModelMK-RC-80B
LED BrandLumileds  LUXEON 3030
Driver BrandINVENTRONICS
Norminal Wattage80W
LED Quantity144pcs
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency165 lm/w
Lamp Rated Lumen output13200 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60°, 90° or 120°
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh pressure die-cast aluminum
CoverUV-resistant  Polycarbonate+Tempered glass
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsWhite
Warranty5 years


Description

bracket mounted gas station light

gas station light, led gas station light, led canopy light for gas station, gas station light fixtures, gas station canopy light

bracket mounted gas station light

Video

bracket mounted gas station light

gas station light, led gas station light, led canopy light for gas station, gas station light fixtures, gas station canopy light


Download

FAQ

Packing Details
Fixture Dimension354x330 x92mm
Fixture Weight4.0kg
Packing Dimension380x380 x150mm
Packing Weight4.6kg
