The 200W LED sports floodlight for tennis courts is designed with tool-less clips for easy replacement of LED Board and LED Driver, excellent heat dissipation design to ensure long lamp life, luminous efficacy up to 170LM/W, can replace more than 400W traditional lamps, suitable for tennis courts, basketball courts and badminton courts.

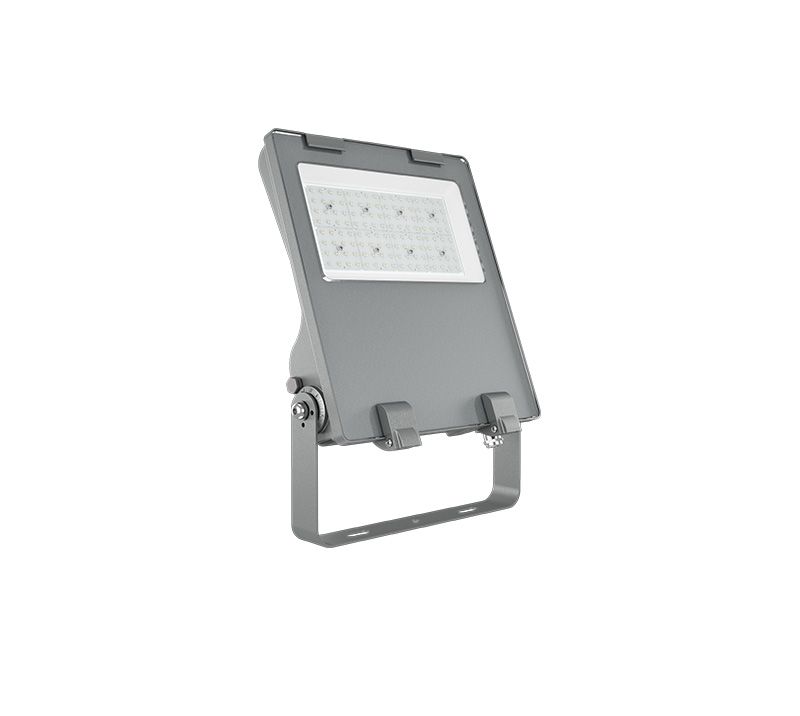

200w led sports flood lights for tennis court
Led sports flood lights, outdoor led flood lights, led flood lamps, stadium flood light, best led flood light
Wide power range: 20W~240W
Luminaire efficacy: Up to 170 lm /w
70% energy saving, short ROI period
Up to 100, 000hrs @ L70, low maintenance cost
World-class, approbated quality components (LEDs /Driver /etc.)
Buckle design makes it very easy for further maintenance
Equip with vent to avoid internal fogging and frosting
High-pressure die-cast aluminum and Tempered glass cover
Wide choice of optics to suit more applications ( asymmetrical and symmetrical)
1500 hours salt spray test report.
Applications
Recreational sports, Billboard lighting, Accent lighting, Parking lots, Roundabout, Outdoor sports
led sports flood lights, Outdoor led flood lights, led flood lamps, stadium flood light, best led flood light
| Specifications | |
| Model | MK-FB3-200 |
| LED Brand | Lumileds 3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 200W |
| Input Voltage | 100-240/277VAC/DC12/24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 145-155 lm/w |
| Lamp Rated Lumen output | 29000-31000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000 or 4000 or 5000 or 5700K |
| Optic (IESNA) | 25°, 60°, 90°, 120°, or Asymmetrical |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C,10%~90%RH |
| Total Harmonic Distortion | <10% |
| Lumen Maintenance | >100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast aluminum Housing and Tempered glass |
| Cover | PC lens |
| Mounting Type | Bracket mounted |
| Rating | IP66 IK09 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,ENEC,CB,LM80,LM79,IP66,IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Available on request | Photocell, Motion sensor, NTC, OLC, Solar Compatible, DALI Dimming |
| Warranty | 5 years |
led sports flood lights, outdoor led flood light, led flood lamps, stadium flood light, best led flood light
led sports flood lights, outdoor led flood light, led flood lamps, stadium flood light, best led flood light
Illumination is essential for tennis courts. LED is the ideal option because of its great luminosity, energy efficiency, uniformity, and longevity.
30' is the minimum installation height for tennis court lighting (9 meters). When required, their heights may be raised to reduce glare.
For instance, a normal community tennis court requires 300 to 400 lux for adequate illumination. Using a high-pressure sodium lamp requires 32,000 watts to create 300 to 400 lux, but an LED flood light only requires 15,000 watts.
