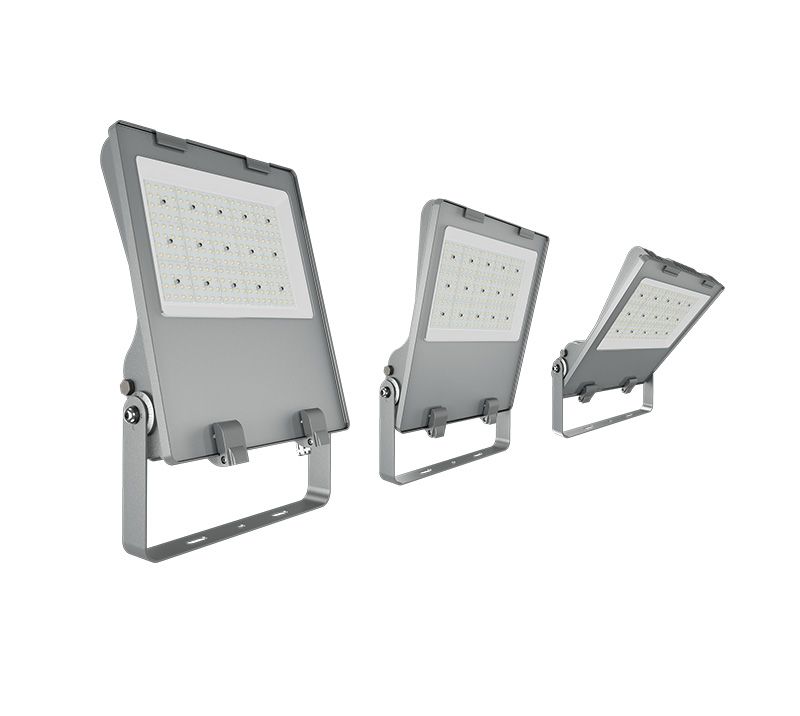

80w Led Flood Light | MK-FB2-80

80w Led Flood Light adopts an asymmetric optical lens, which can be used in tennis courts, basketball courts, badminton courts, etc., with high uniformity and low glare, and an optional symmetrical spectrum can be used for large-scale area lighting, such as squares, billboards, buildings

Key features

80w Led Flood Light | Symmetric Lens for Sport Area

80w Led Flood Light, Symmetric Led Flood Light, 80w flood light, led flood light 80w


Wide power range: 20W~240W

Luminaire efficacy: Up to 170 lm /w

70% energy saving, short ROI period

Up to 100, 000hrs @ L70, low maintenance cost

World-class, approbated quality components (LEDs /Driver /etc.)

Buckle design makes it very easy for further maintenance

Equip with vent to avoid internal fogging and frosting

High-pressure die-cast aluminum and Tempered glass cover

Wide choice of optics to suit more applications (asymmetrical and symmetrical)

1500 hours salt spray test report.


Applications

Recreational sports, Billboard lighting, Accent lighting, Parking lots, Roundabout, Outdoor sports

Datasheet

80w Led Flood Light | Symmetric Lens for Sport Area


Specifications
ModelMK-FB2-80
LED BrandLumileds  3030/5050
Driver BrandMeanwell or Inventronics
Norminal Wattage80W
Input Voltage100-240/277VAC/DC12/24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency145-155 lm/w
Lamp Rated Lumen output11600-12400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Optic (IESNA)25°, 60°, 90°, 120°, or Asymmetrical
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,10%~90%RH
Total Harmonic Distortion<10%
Lumen Maintenance>100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce   12
BodyDie-cast aluminum Housing and Tempered glass
CoverPC lens
Mounting TypeBracket mounted
RatingIP66 IK09
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Available on requestPhotocell,   Motion sensor, NTC, OLC, Solar Compatible, DALI Dimming
Warranty5 years



Description

80w Led Flood Light | Symmetric Lens for Sport Area

80w Led Flood Light | MK-FB2-80

Video

80w Led Flood Light | Symmetric Lens for Sport Area

Download

FAQ

What is an asymmetric floodlight?

Floodlights with an asymmetric spectrum include complex optics to guide the light beam to a specific location, with the most popular fixtures being referred to as "reflectors" or "lenses" due to their usage of a mirror.

What is asymmetrical light distribution?

Asymmetrical light sources do not uniformly spread light in all directions. The asymmetric light beam has modern optics that enable it to be directed to a specific region.

What is an asymmetric lens?

A (generic, asymmetric) lens is a lamina created by the intersection of two offset discs with unequal radii such that the intersection is not empty, one disc does not entirely surround the other, and the curvature centers are on opposite sides of the lens.
